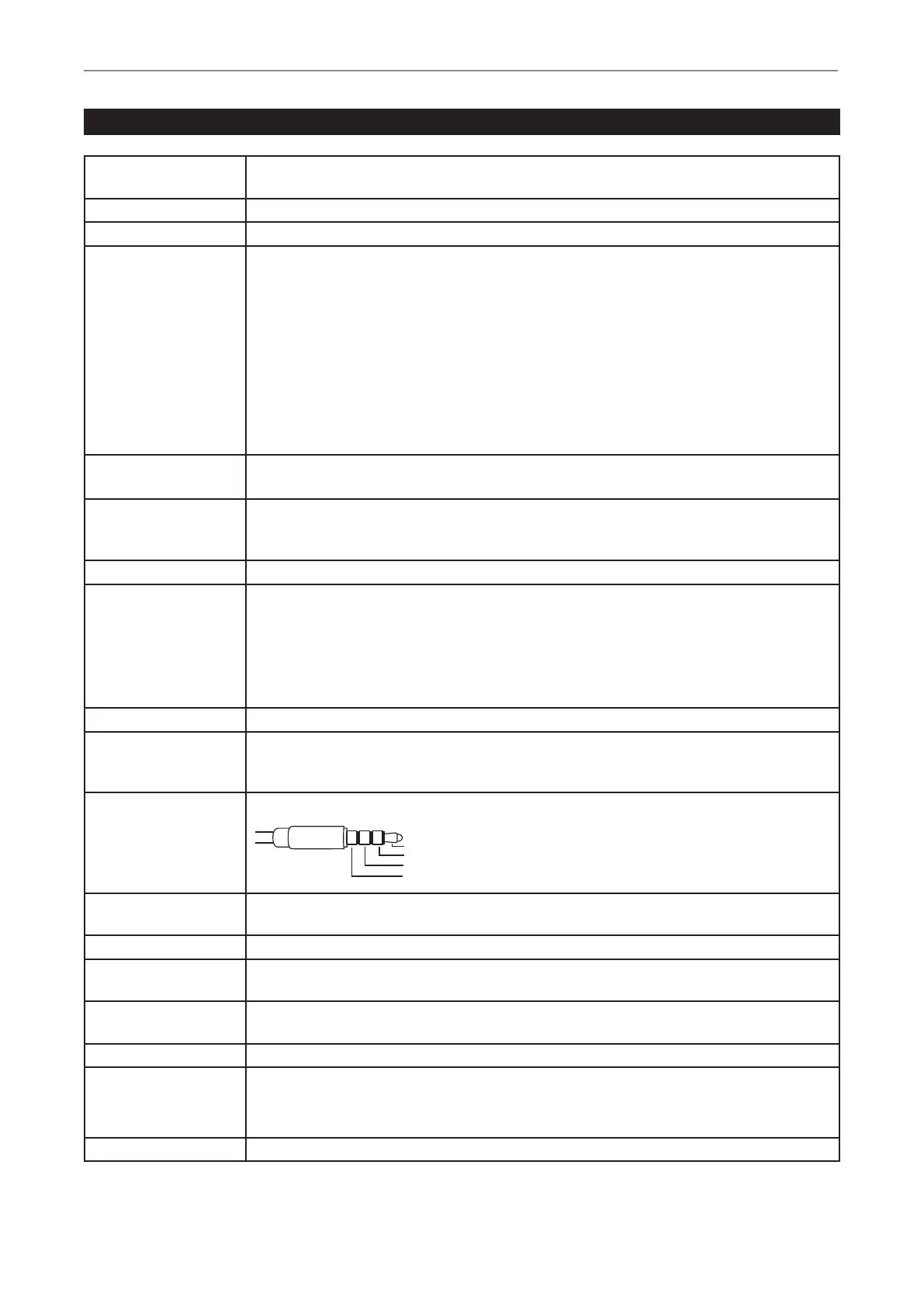

Appendix A: MVR / MVR Pro Specications
Function Records video and still images in high denition from medical video sources to a USB storage,
Internal storage or Network storage.
Case Stainless Steel metal case, copper metal base
Buttons Stainless Steel, uid resistant
Video Connections Input 1 (4K /UHD): HDMI (DVI with adapter)
4096x2160p24 (4K2K), 3840x2160p30/25 (UHD “4K”), 1920x1200p60 (WUXGA),
1920x1080p60/50/30/25 (Full HD), 1080x720p60/50 (HD), 1280x1024p60/50 (SXGA),
1024x768p60/50 (XGA), 800x600p50 (SVGA), 640x400p60 (VGA)
– no interlace signals on Input 1
Input 2 (HD): HDMI (DVI with adapter)
1920x1200p60 (WUXGA), 1920x1080p60/p50/i60/i50/p30/p25 (Full HD), 1080x720p60/50(HD),
1280x1024p60/50 (SXGA), 1024x768p60/50 (XGA), 800x600p50 (SVGA),
*For recording 4K input signals in 4K resolution, “4K recording” needs to be activated.
Otherwise 4K input signals will be recorded in HD.
Video Output HDMI (DVI with adapter)
3840x2160p60/50/30/25 (UHD “4K”), 1920x1080p60/50/30/25 (Full HD)
Recording Resolution 3840x2160*, 1920x1080, 1280x1024, 1280x720, 1024x768
*For recording 4K input signals in 4K resolution, “4K recording” needs to be activated.
Otherwise 4K input signals will be recorded in HD.
Video Recording Format MP4: H.264 / HEVC H.265 High Efciency Video Coding
Video Recording Bitrate H.264 coding (Adaptive Constant Bitrate):
Normal quality: (HD 1080): 16 Mbps, (HD 720): 8 Mbps
Super quality: (HD 1080): 32 Mbps, (HD 720): 16 Mbps
HEVC coding (Adaptive Constant Bitrate):
Normal quality: (HD 1080): 8 Mbps, (HD 720): 4 Mbps
Super quality: (HD 1080): 16 Mbps, (HD 720): 8 Mbps
Image format JPG / PNG
Sound Recording Bluetooth microphone,
Wired Headset with microphone (4 poles),
USB microphone
Headset input PIN Table:
Internal Storage High speed solid-state memory 128GB
Larger Internal Storage by order.
E x t e r n a l S t o r a g e USB drives (ash drives or hard drives), FAT32 / NTFS / exFAT
USB Support USB3.0, Super speed, 1 front connector, 2 rear connectors.
Maximum allowed load to rear USB connectors is 1A.
Remote 3.5mm mini jack. Compatible with standard footswitches (not included) and closed-contact
camera triggers.
LAN RJ-45, Ethernet 10BASE-T/100BASE-TX/1000BASE-T
WLAN Dual-band 2x IEEE802.11a/b/g/n/ac
Operating bands:
2.412-2.472GHz, 5.18-5.24GHz, 5.26-5.32GHz, 5.5-5.70GHz
Bluetooth BT4.1+HS, BLE, 2.402-2.480GHz
1. Left
2. Right
3. Common / Ground
4. Mic input
