20 FCEALTMAXX (PIC-xxxxx) | Revision: 01/09/17
9. Re synchronize the self leveling hi low motors by lowering the bed to its lowest position
and holding the elevation down button on the hand pendant an additional 5 seconds after
the bed has reached its lowest elevation
10. Test the bed by raising and lowering elevation.
NOTE: When replacing head and foot actuators, special care needs t be taken to secure all
wiring with cable ties as necessary to reduce strain from the actuator cables. Ensure that
cable do not get caught on any moving parts.

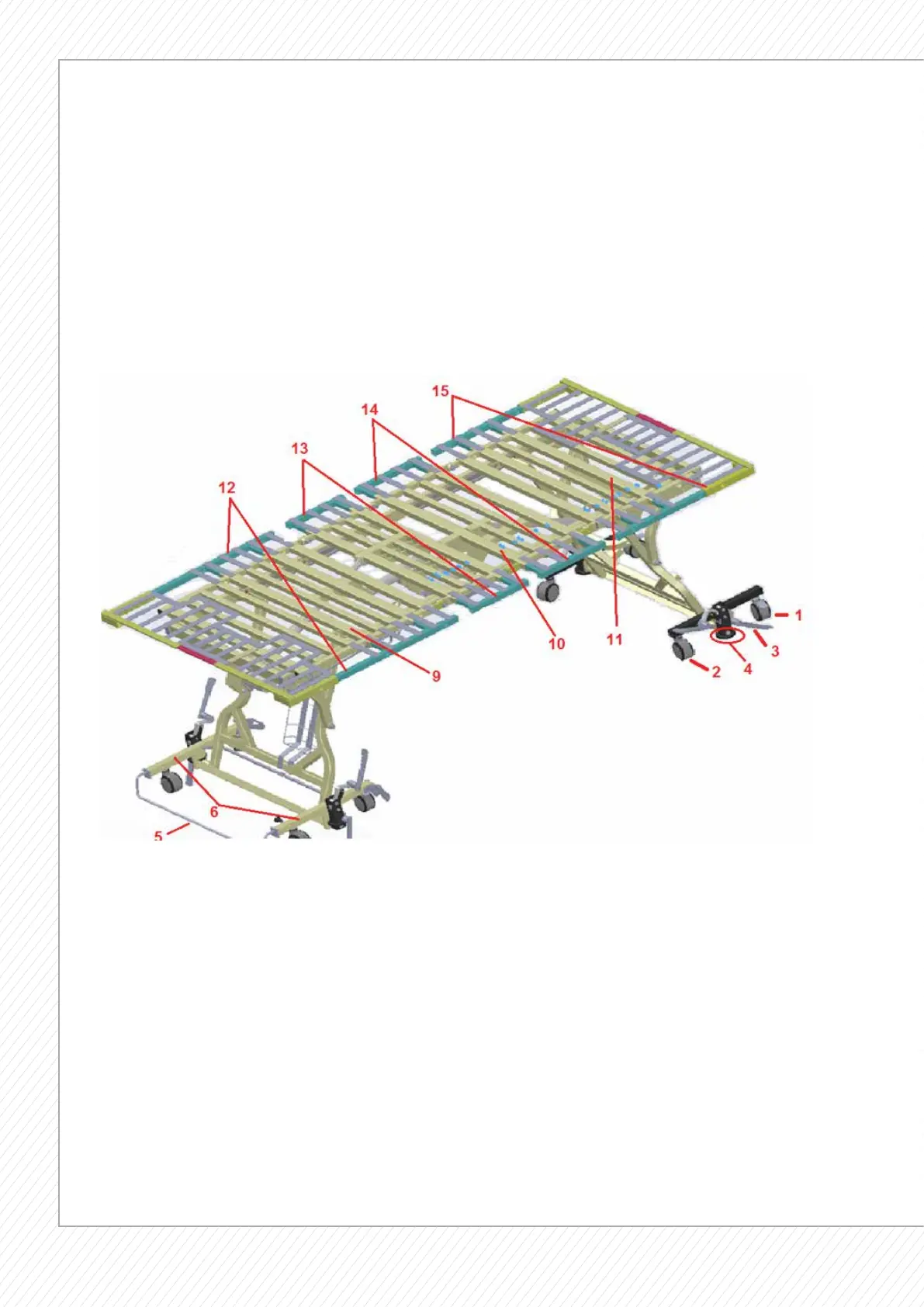

BED SChEMATIC
