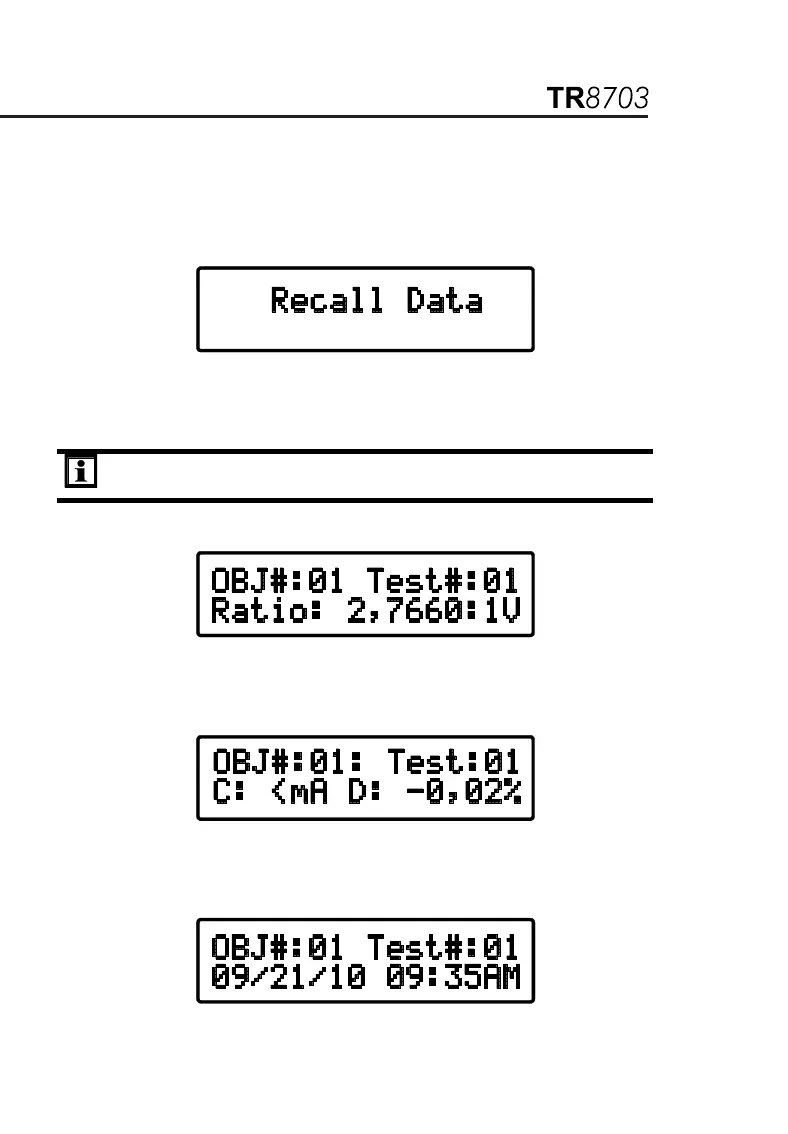

3.4. Recall Data
From the Main Screen, press the ▼ or ▲ key until Recall Data appears
on the display, then press ENTER.
The Measurement Record in OBJECT #01 and TEST #01 will be
displayed, as well as the Ratio.
NOTE: The V after the Ratio indicates the VT/PT test type. C
would be displayed if the Ratio was from a CT test.
1. Press the TEST button to move to second screen, which will display
Current and Deviation %.
2. Press the TEST button to move to the third screen to display the Date
and Time.
