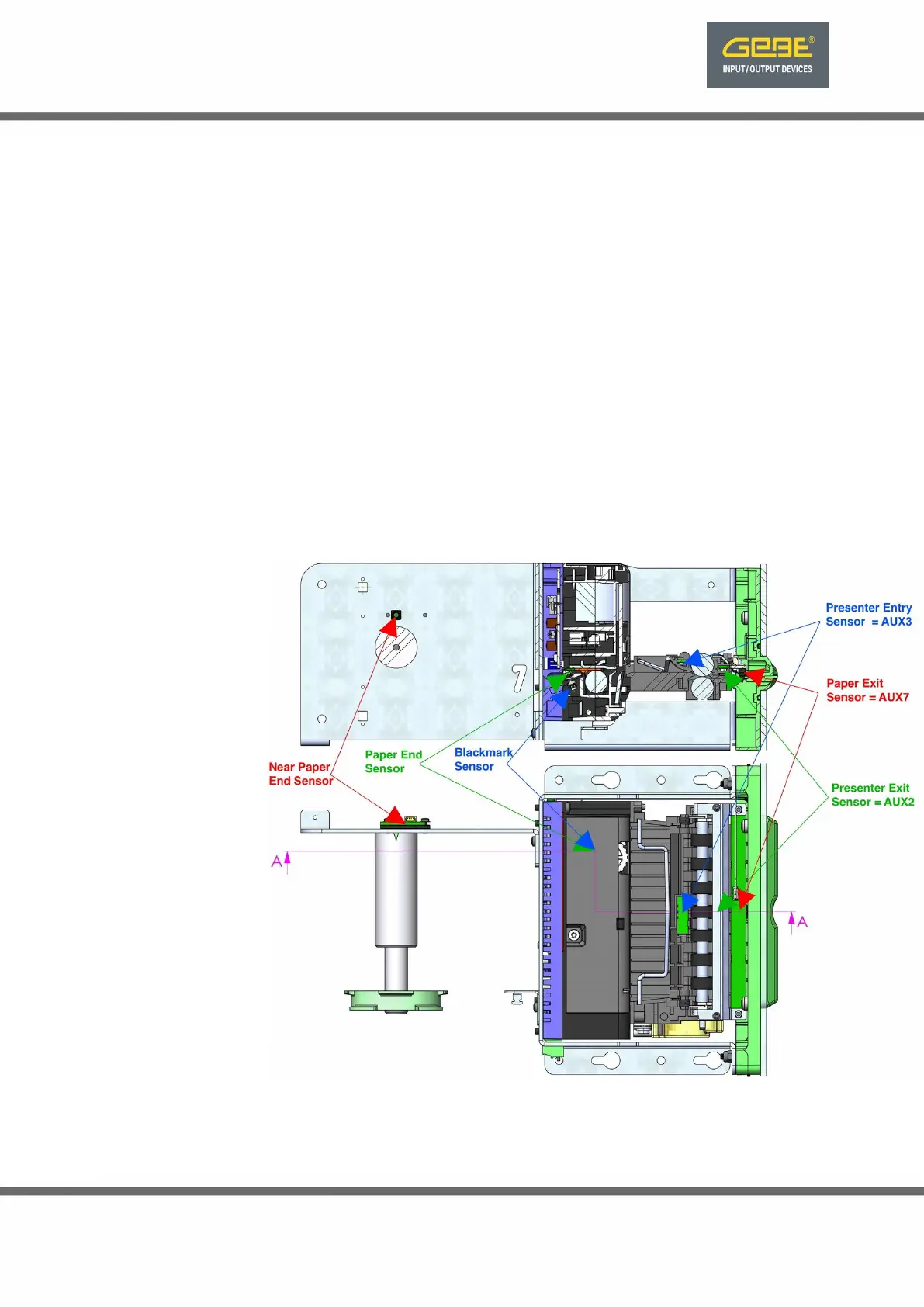

• Print head temperature NTC, integrated in the printhead
• Printer voltage AD converter, µ processor on PCB
• Printhead lifted microswitch, integrated in the printing unit
• Cutter position microswitch, integrated in the printing unit
• Motor temperature NTC, on PCB bottom side
• Paper End Fork IR sensor, integrated in the printing unit
• Blackmark Reflex IR sensor, integrated in the printing unit
• Near Paper End Optional connection on PCB via plug connection for reflex IR sensor
Via plug on external circuit board:
• Paper Exit sensor Reflex IR sensor
• AUX4 sensor Reflex IR sensor
In the presenter:
• Presenter Entry Reflex IR sensor, integrated in the presenter
• Presenter Exit Reflex IR sensor, integrated in the presenter
