Front Panel Controls
All Megger Baker ADX testers feature a large, 10.4-inch touch screen that displays the graphical user interface. The
interface features a logical layout of large touch icons that improve ease of use.
The units come with a Push-to-Test (PTT) button used during manual coil tests, and a variable voltage output ramp
switch to apply voltage during surge, coil, and DC tests.
In the lower right corner, an easily accessible E-Stop button quickly shuts off power to the unit’s high-voltage
circuitry during DC and Surge testing when needed.

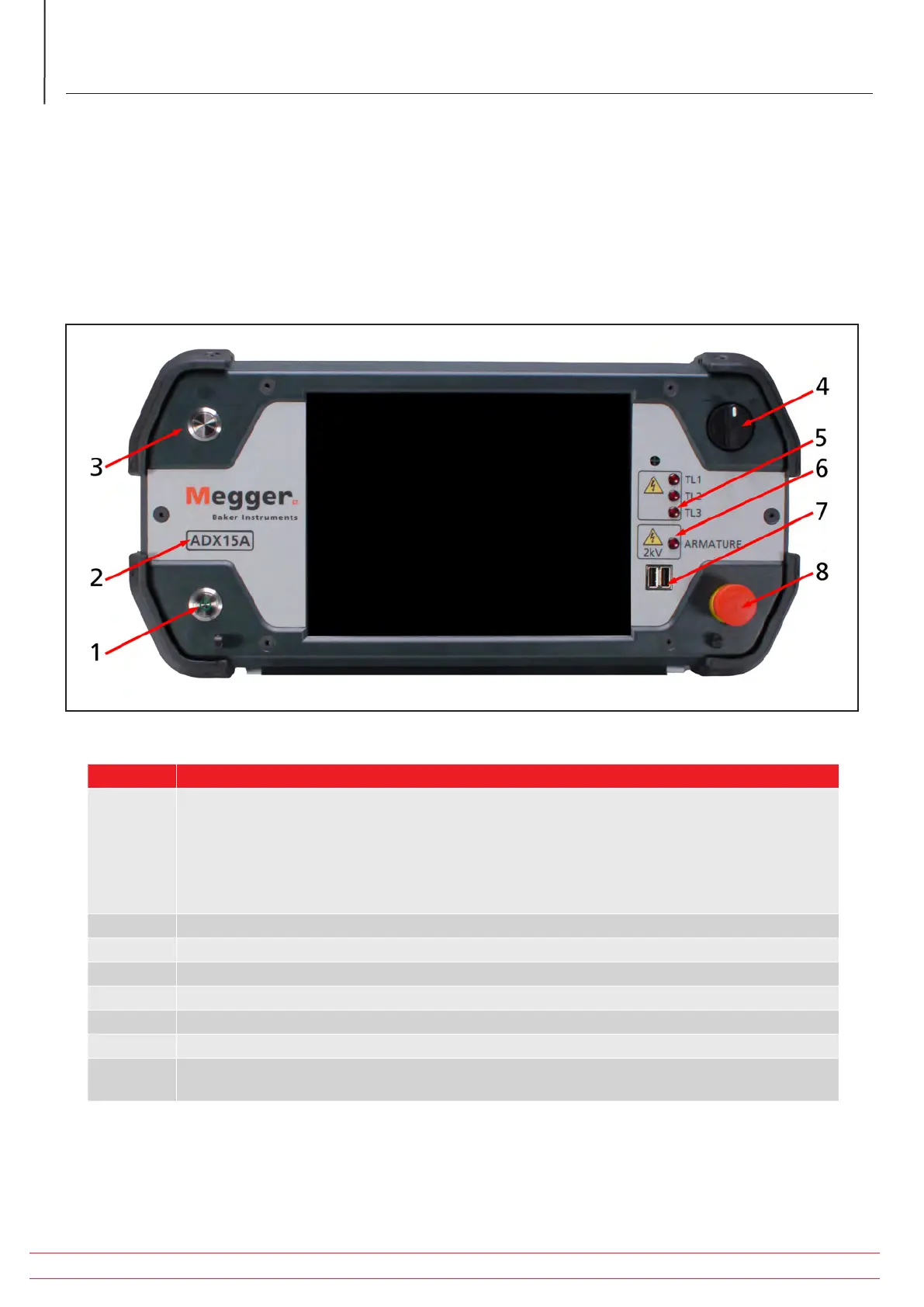

Fig 5: Front panel controls and features—ADX15.
No Description
1 Power On/Off button. The button has three modes of operation:
Screen sleep— Quick press-and-release.
Controlled shut-down or restart—Press one second and release then press Power Off or
Restart.
Hard power down—Press and hold for approximately 5 seconds.
2 ADX model. Model number also indicates maximum output voltage (in kV).
3 Push-to-test (PTT) button.
4 Voltage output ramp switch.
5 Test Lead active LEDs. When LEDs are lit, indicated test lead is energized.
6 Armature Test Lead active LED. When LED is lit, armature test lead is energized.
7 USB 2.0 connectors.
8 Equipment stop (E-Stop) button. See “Equipment Stop Button” in the “General Operating and Safety
Information” chapter for more information.
