ADX Software Overview
Surge Tests Section
In the Surge Tests section, Surge and PD tests can be enabled, and values can be provided for test voltages, EAR limits,
and more. Line-to-line EAR+
TM
limits can be applied to individual leads (phases) or to all leads. Pulse-to-pulse EAR+
TM
limits are applied to all leads.

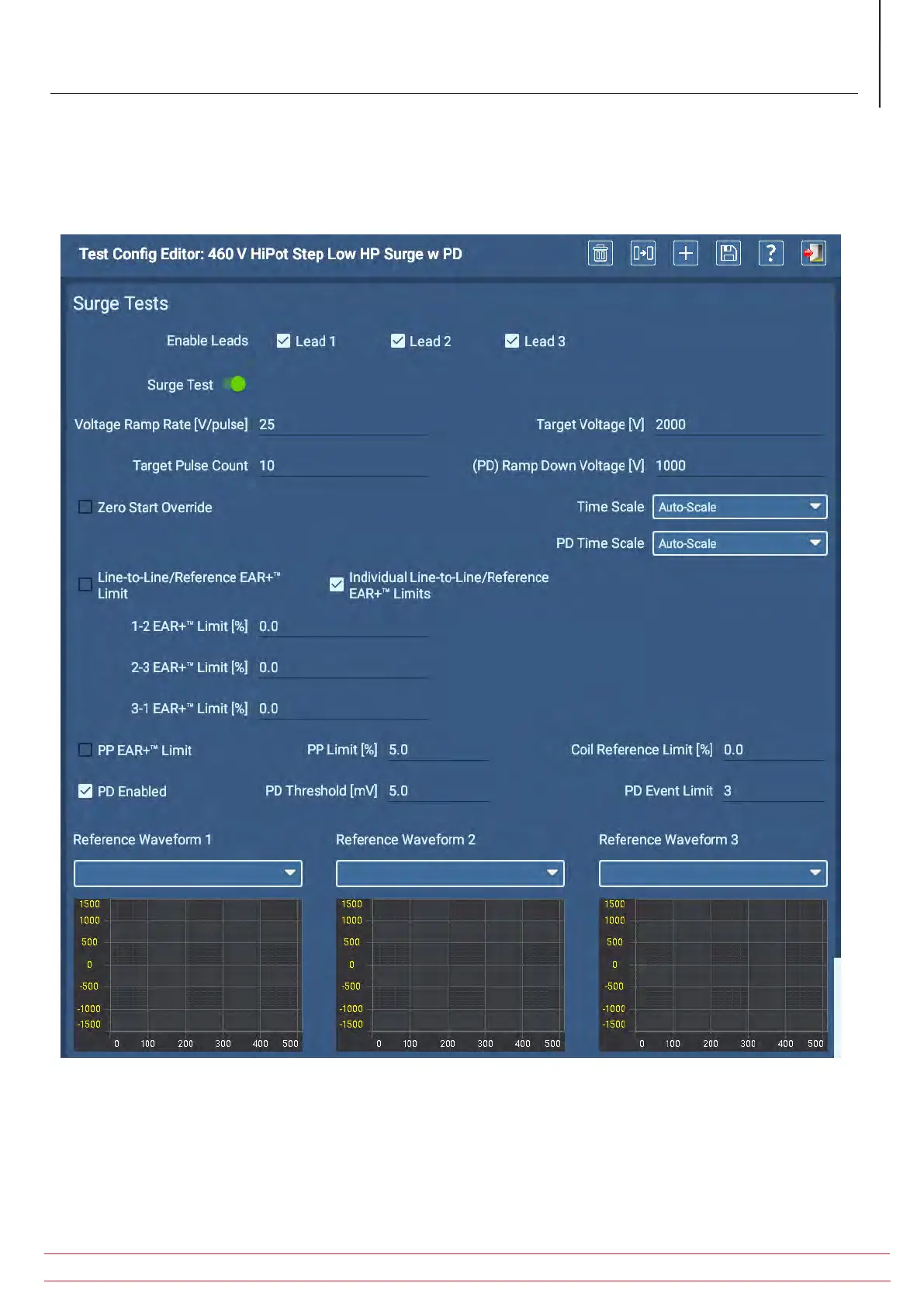

Fig 23: Test Configuration Editor; Surge Tests section.
At the bottom of the section, users can specify up to three reference waveforms; one for each phase being tested for a
three-phase Asset. If you use only one surge reference, it will be applied to all surge waveforms collected.
