Manual Tests
CAUTION: Before running any test, ensure that the ADX Test Leads are properly connected to the Asset
being tested as described earlier in this chapter, including providing a proper ground.
Ensure that all safety precautions are in place before conducting any test. Review safety information at
the beginning of this guide for complete safety information.

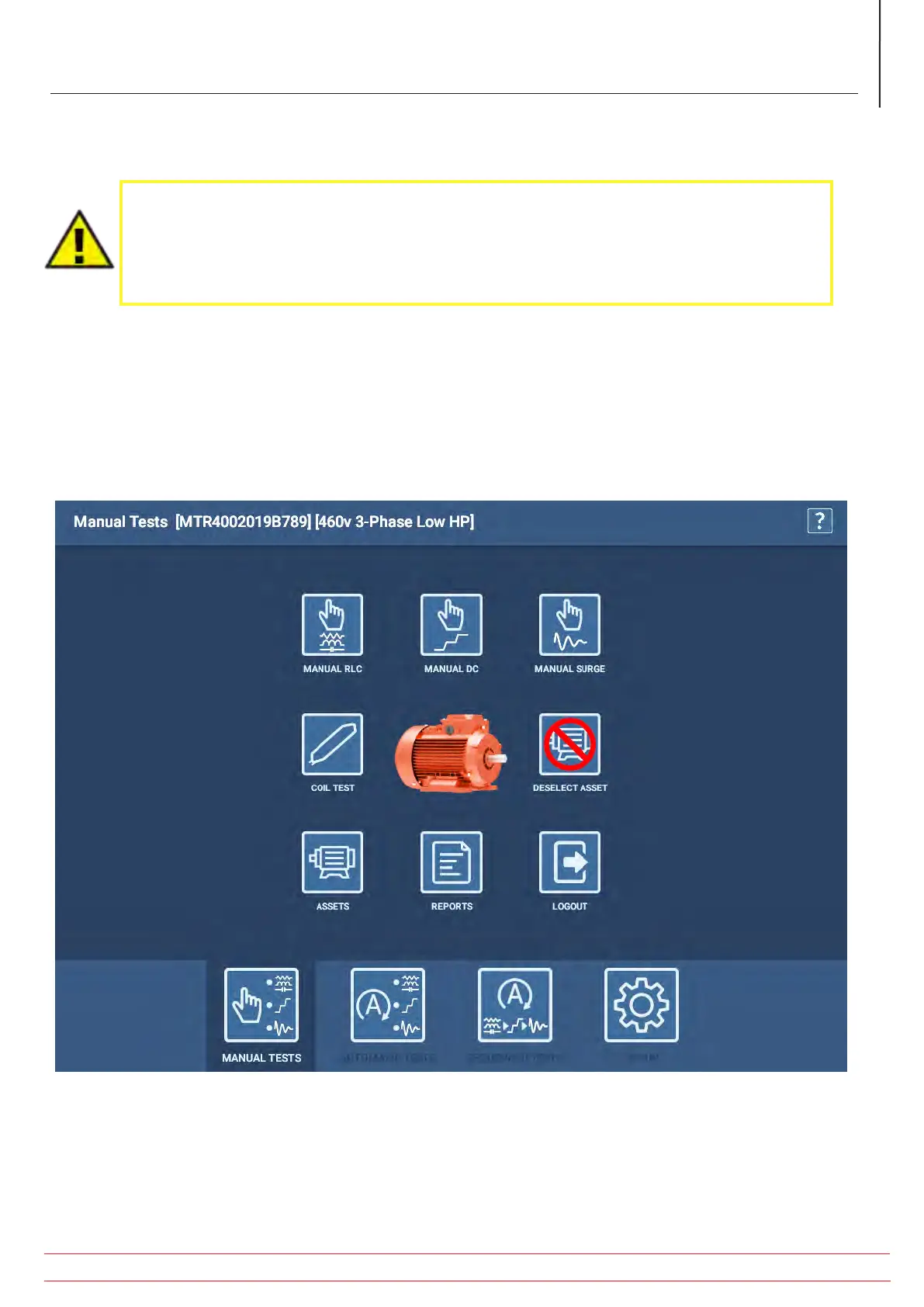

Manual Tests Main Screen
Touching the MANUAL TESTS icon reveals a screen containing icons that provide access to manual RLC, DC, Surge, and
Coil tests.
Touch the ASSETS icon to select an Asset to test, or REPORTS to view report results for completed tests.
Touch the LOGOUT icon to exit the interface when you have completed your tasks.
Fig 41: Manual Tests Main menu.
www.megger.com/baker
Megger Baker ADX Quick Reference Guide
41
Procedures for Testing with the ADX Analyzer
