Setup
Setup

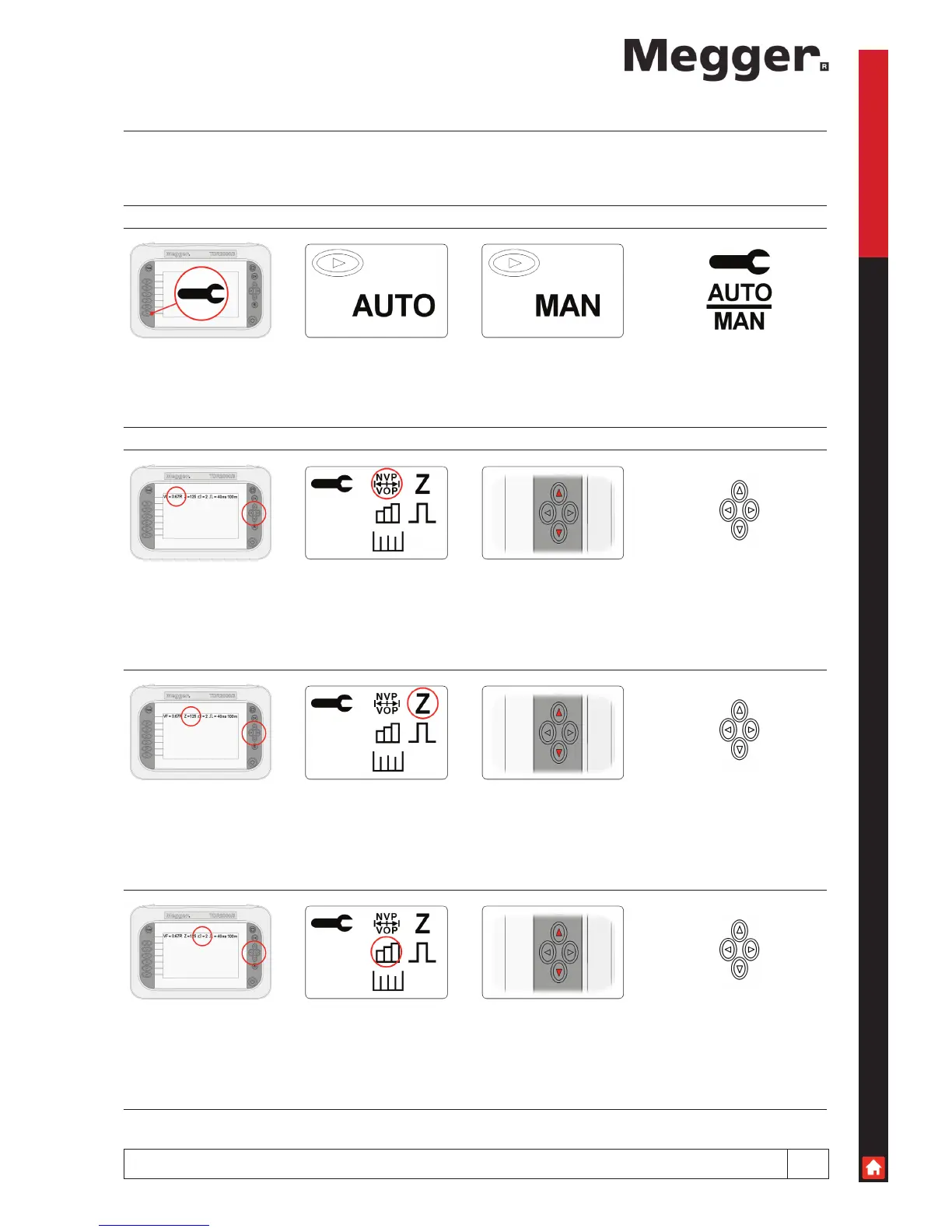

The user has the ability to change various settings for the live trace ranging from the velocity factor to the gain applied to
the trace. These settings can be accessed via the setup icon.
Accessing Setup
Press to select Automatic mode Manual mode
Adjusting the Setup Options
Velocity Factor Use the up and down cursors to set the Velocity Factor to
match the cable under test.
Impedance Use the up and down cursors to adjust the impedance for
the cable under test.
*Only available in manual operation (see page 13).
Gain Use the up and down cursors to alter the gain to adjust
visible disturbances on trace.
*Only available in manual operation (see page 13).
