Trace Tagging
Trace tagging
Trace Tagging is only available on the TDR2010 and TDR2050 models. Trace Tagging allows the user to add a name to all
saved traces. This could be the circuit ID, building name or any other identifying text the user wishes to save with the trace.
A text string of up to 32 alphanumeric characters can be stored against each trace and this can consist of upper case letters
including accents.

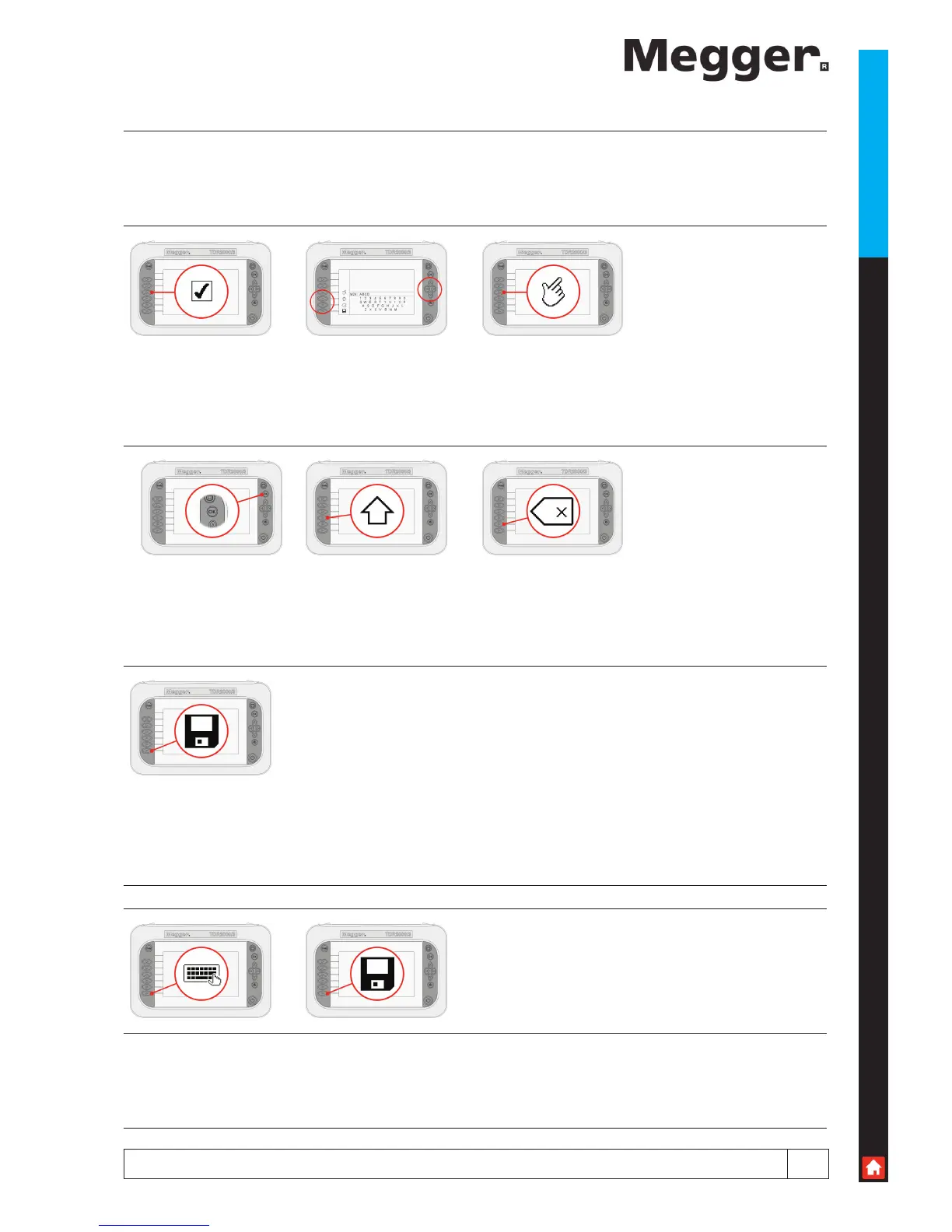

This function is activated
when choosing a memory
location to save a trace to
Use the navigation buttons
to select a letter and the soft
keys to action
Press the hand icon to
add the currently selected
character
You can also press the
OK button to accept the
selection
Press the shift icon to change
the keyboard to the extended
characters
Press the backspace icon to
delete the last character
Once all characters have
been chosen, press the save
icon to complete the save
process
You can edit a current trace tag either when you save a trace, or when you are choosing a trace for a memory mode
function.
Once you enter edit mode, simply use the technique for new trace tags in the previous section.
When you have finished editing, press the save icon to complete the edit and save your changes.
