Results
Results
The cursor lines on the TDR2000 series allow the user to identify disturbances at strategic points to determine distances and
positions of potential faults on the trace.

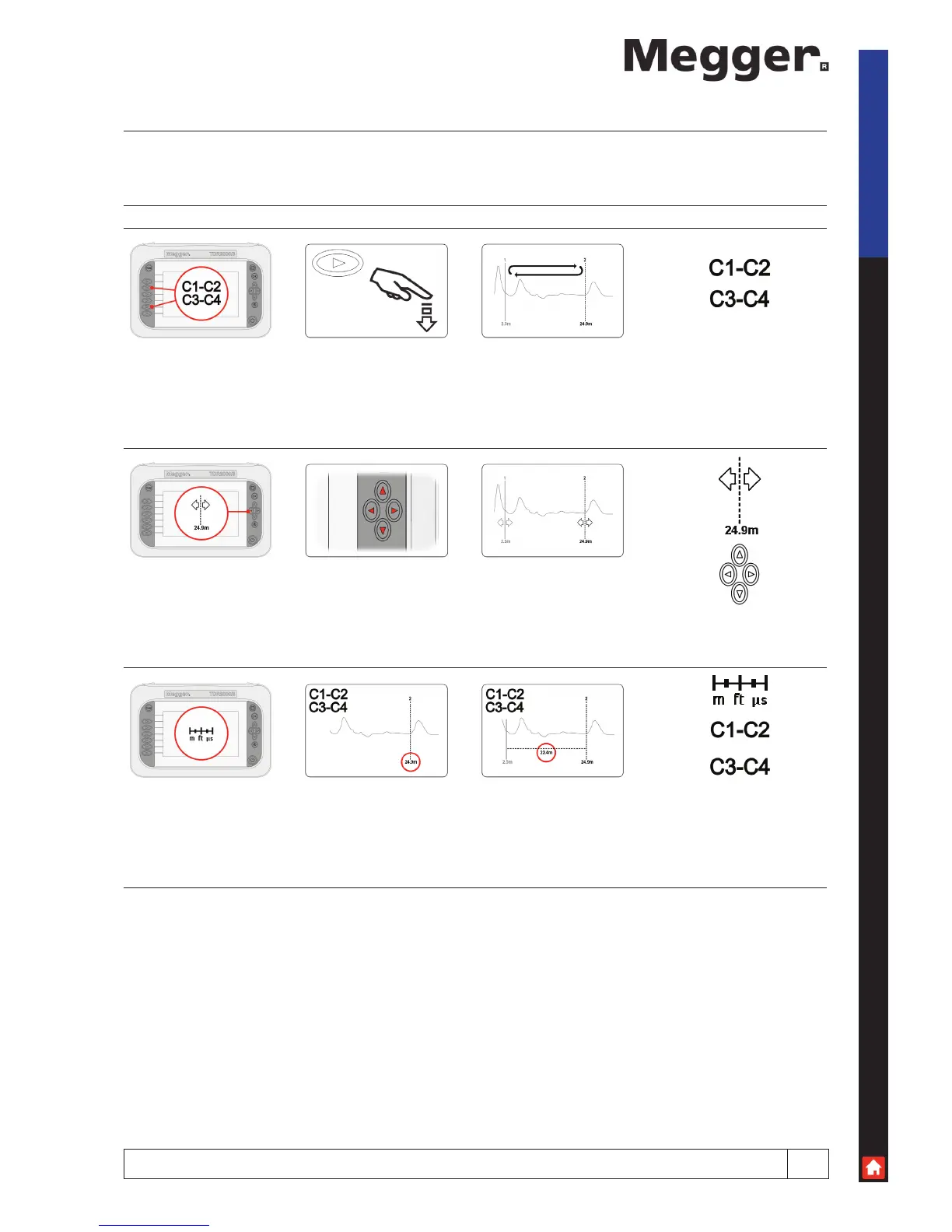

Cursors and measurements
Cursor choice Press to select Swap between cursors
Cursor movement
C1-C2 Trace 1
(Single Trace Mode)
C3-C4 Trace 2
(Dual Trace Mode)
Use cursor keys Cursor position on trace
Distance measurement Distance to cursor Delta measurement
