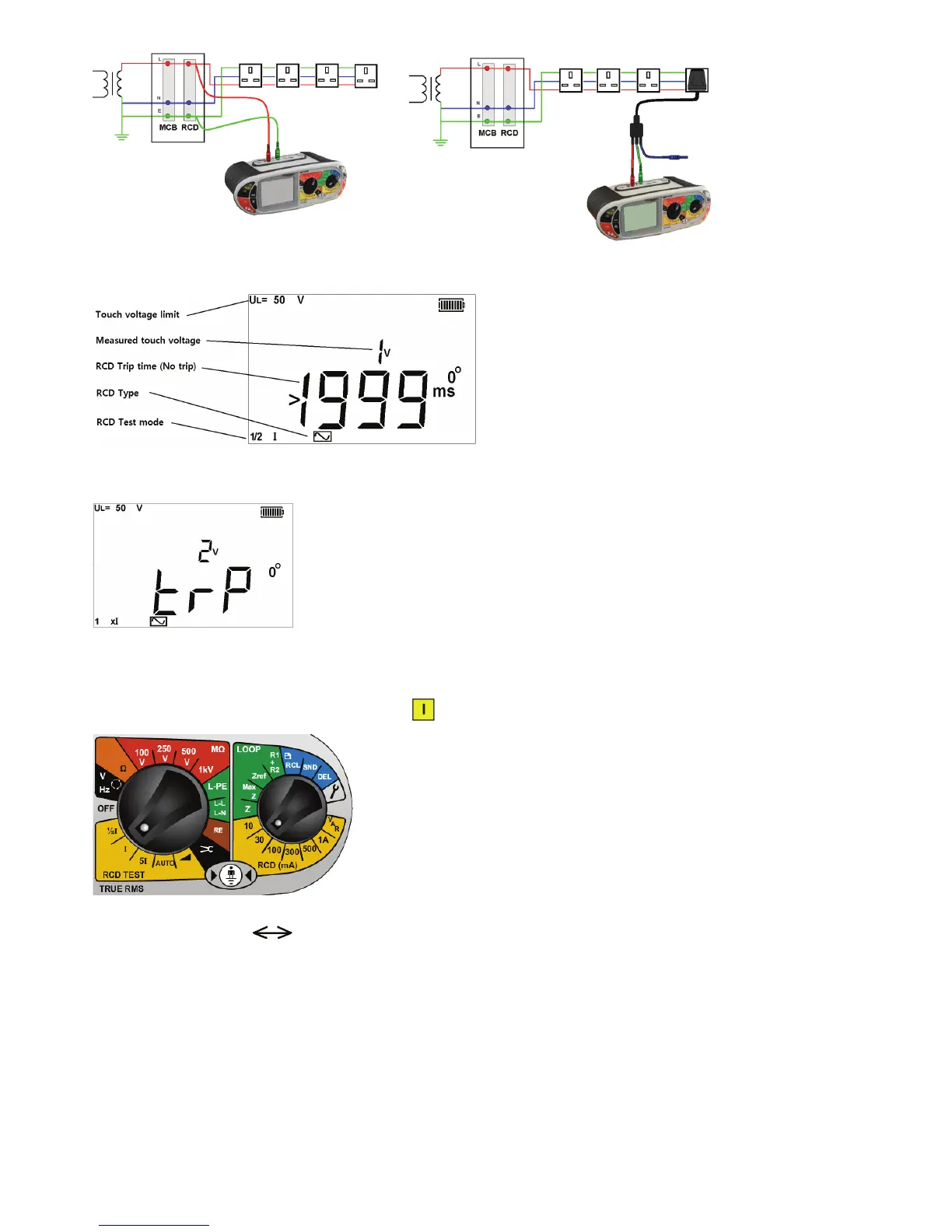

.4 Press the TEST button. The Display should show one of the following:



If the RCD Trips, the MFT will ﬂash the “trP” warning and then display the following:



NOTE: For Type AC RCDs there is no need to perform a 180° test on the ½I mode, as the test uses a full AC waveform.

8.4 1 x I RCD current rating (Tripping test on 30 mA RCD)

.1 Set the LEFT rotary range knob to the



RCD test range.



.2 Connect the instrument as in 8.3.

.3 Press the



mode button to select 0º.

.4 Press the TEST button.

The Display should show one of the following:
