.5 Press TEST to start the test sequence.
.6 On completion of the test, the display will show the loop resistance on the large display segments, and the fault
current on the small display segments.

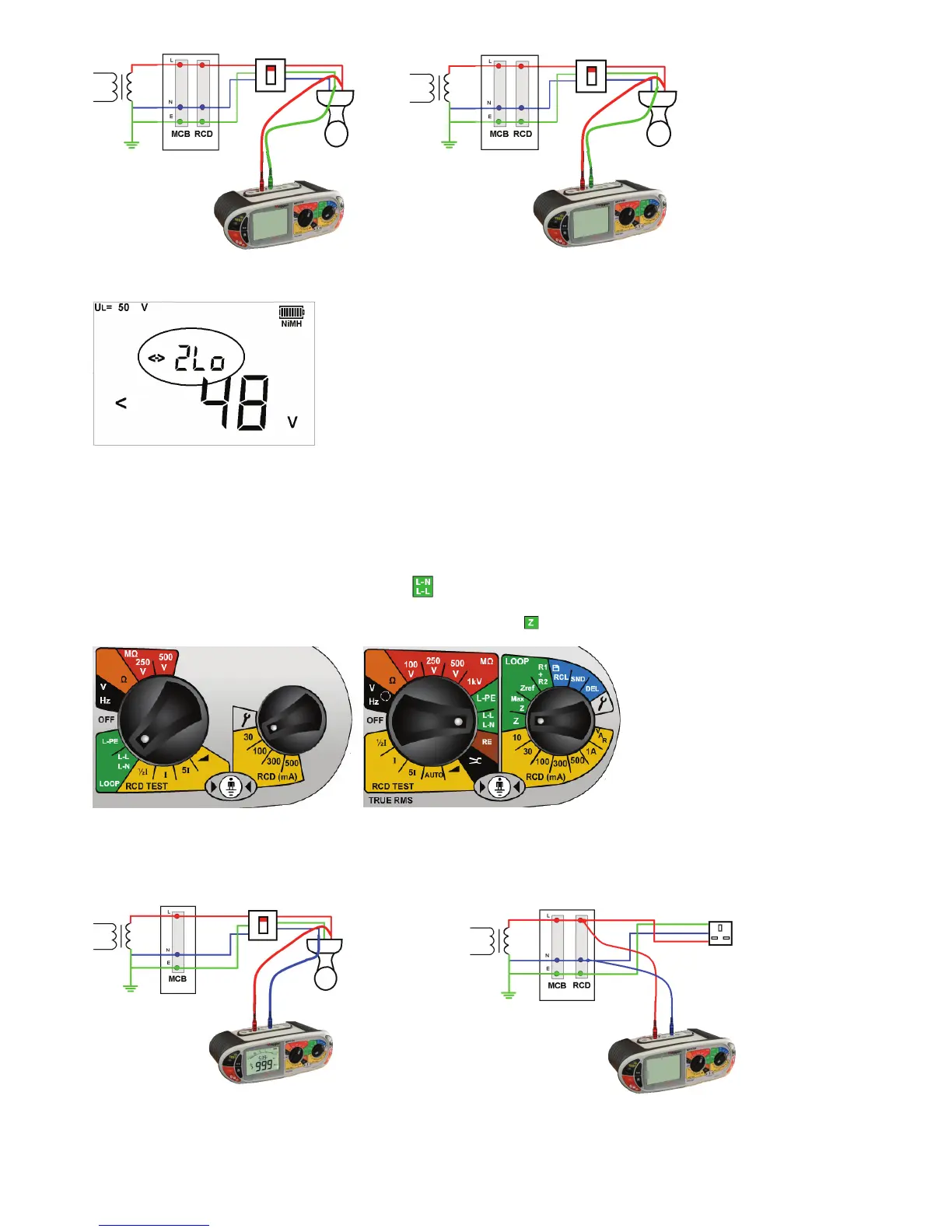

7.3 Phase to Neutral (or Phase to Phase) testing
Note: Only the “2Hi” mode is available on this range.
.1 Set the LEFT rotary range knob to the
MFT1710 MFT1720 and MFT1730
.3 Connect the test leads to the circuit as below, with the Red test lead connected to the L1 (Red terminal on the MFT
and the Blue test lead to the Blue (L3) terminal.
