Commissioning
22
Step Action
4
Connect the HV connection cable from the VLF CR Test Boost to the VLF SIN-
45 test system.

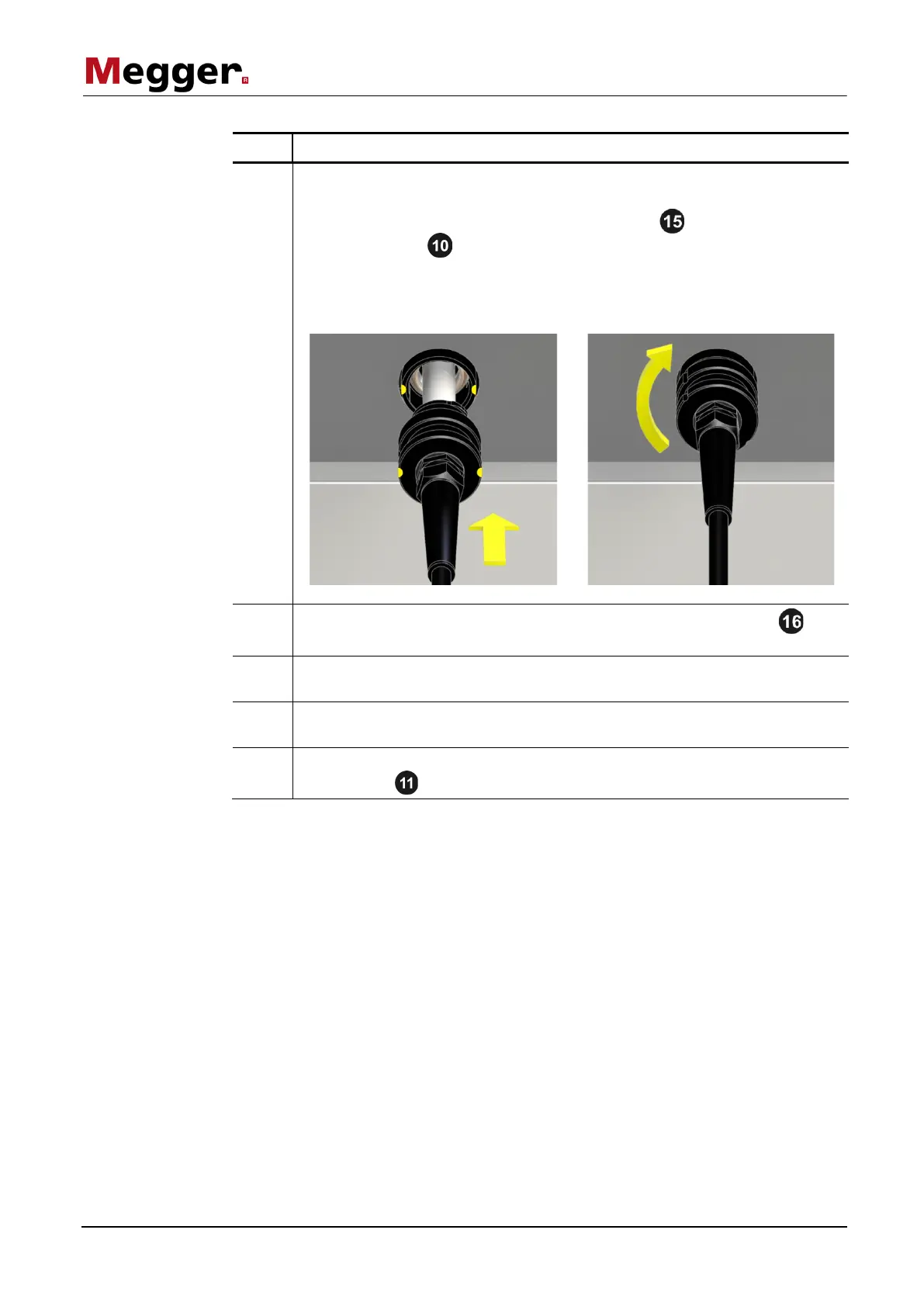

To do so, insert the plug of the HV connecting cable , aligned as shown,
into the HV output of the system.
The connecting plug has a bayonet fitting. The plug must be pushed flush
against the HV output with some force, and noticeably slot into place. Then
tighten the plug by turning it in a clockwise direction.
5
Fasten the plug of the supplied HV connecting cable to the HV output of
the VLF CR Test Boost in the same manner.
6
Connect the screen of the HV connecting cable to the earthed screen of the
test object (system earth).
7
Connect the internal conductor of the HV connecting cable to the phase
conductor of the test object.
8
Connect the power cord included in the scope of the delivery to the system’s
power socket and a power supply socket.
