2.3 Testable Cable Capacities
Introduction The following

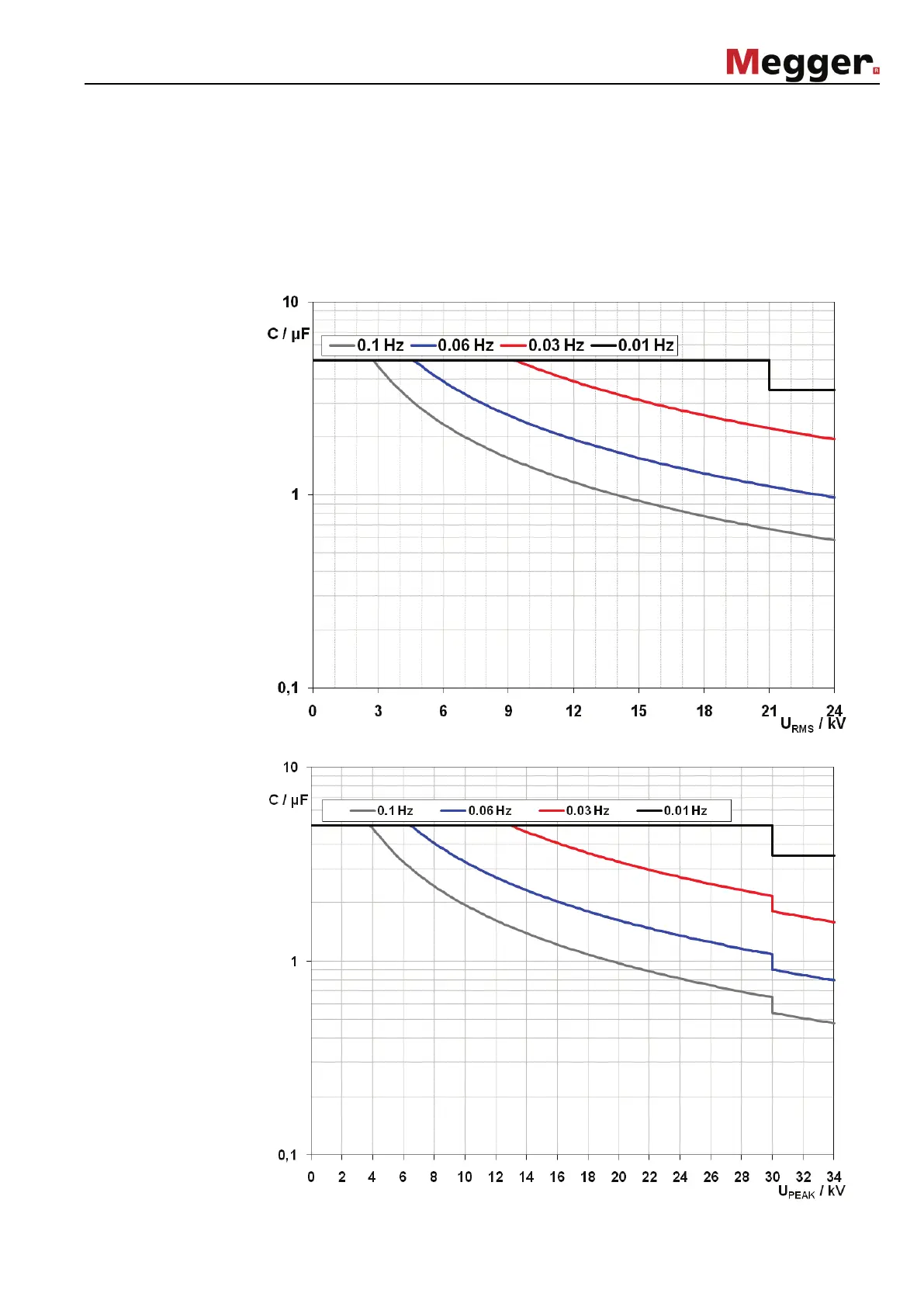

diagrams show the relation of the test frequency to the connected load
capacitance and the set test voltage.
If the set test frequency cannot be used due to the restrictions visible here, the system
prompts for a switch to the lowest possible frequency or, if automatic frequency adaption is
enabled, immediately switches to this frequency.
Sine-wave shaped
output voltage
Rectangular output
voltage
