Megger VLF Sinus User Manual

12

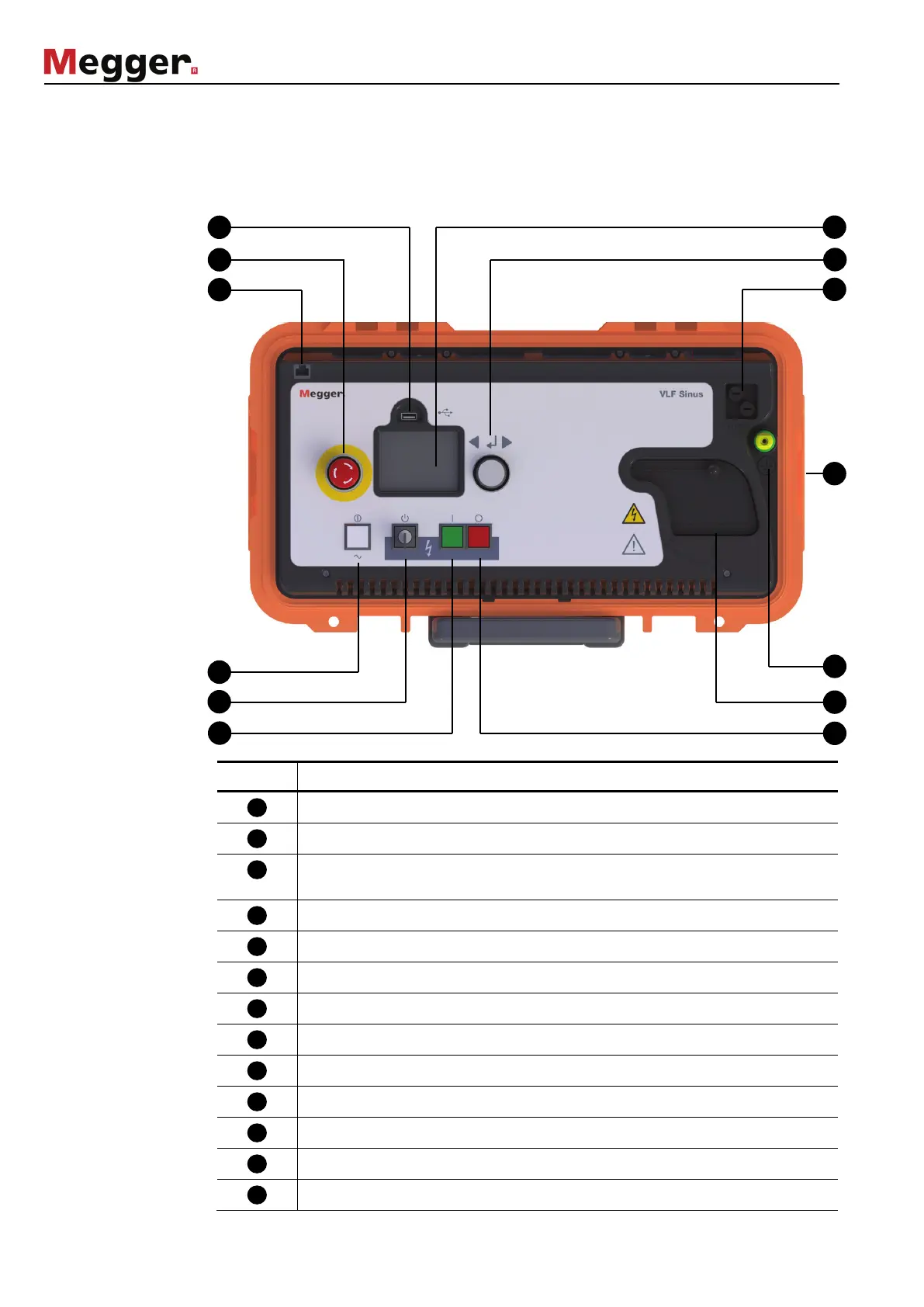

2.4 Connectors and Controls
The system has the following connectors and controls:
Element Description
USB slot
Emergency off button
Ethernet interface
for servicing and remote control
On/off button
HV “interlock” key switch
“HV ON” button
Display
Rotary encoder
Fuses F1 / F2 (2 x T4A)
Power supply socket
Protective earthing connection
HV output
“HV OFF” button
13
12
11
10
9
8
7
6
5
4
3
2
1
4
7
8
9
11
5
6
12
1
2
3
13
10
