Installing MyChron 3 on the steering wheel
Most of steering wheels have existing holes in the three central arms that will
accommodate the MyChron 3 display unit. If the steering wheel arms are solid,
mark the point where the hole is to be drilled and then indent a drill reference
point with a large nail or hole punch, to minimize drill wander. It is recommended
that an 8 to 10 mm drill bit be used. Do not over-tighten the 8 mm nut. Over-
tightening the nut may cause damage to the display unit casing.

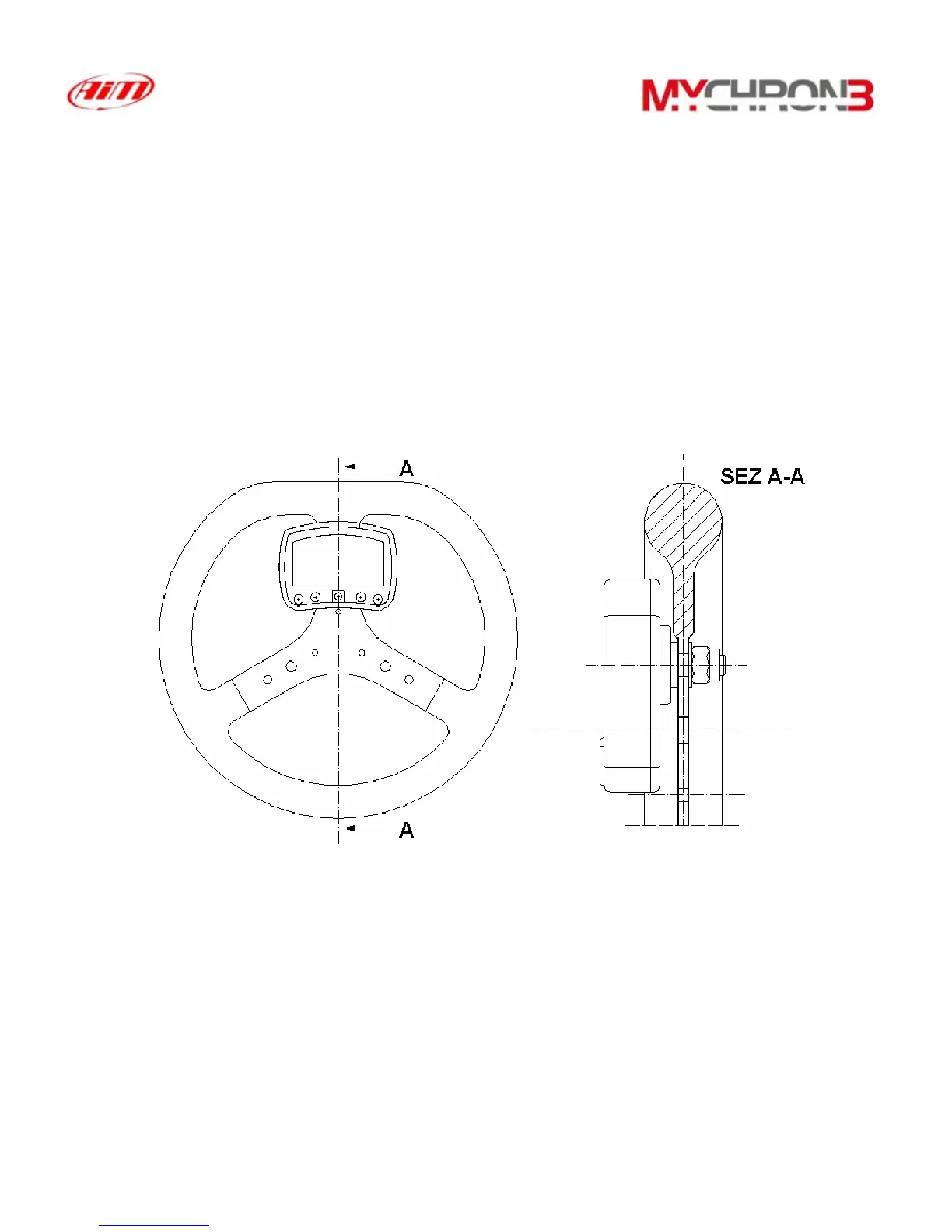

As showed in the previous drawing, it is suggested to use the plastic
washers furnished as equipment to keep separate your MyChron 3 and the
steering wheel, in order to avoid possible damages to the display unit.
