Installing the water thermocouple
The H
2
O thermocouple can be installed directly into the cylinder head ( if the
engine accommodates the thermocouple ) or by using the water thermocouple M5
fitting ( sold separately ) for the M5 type.

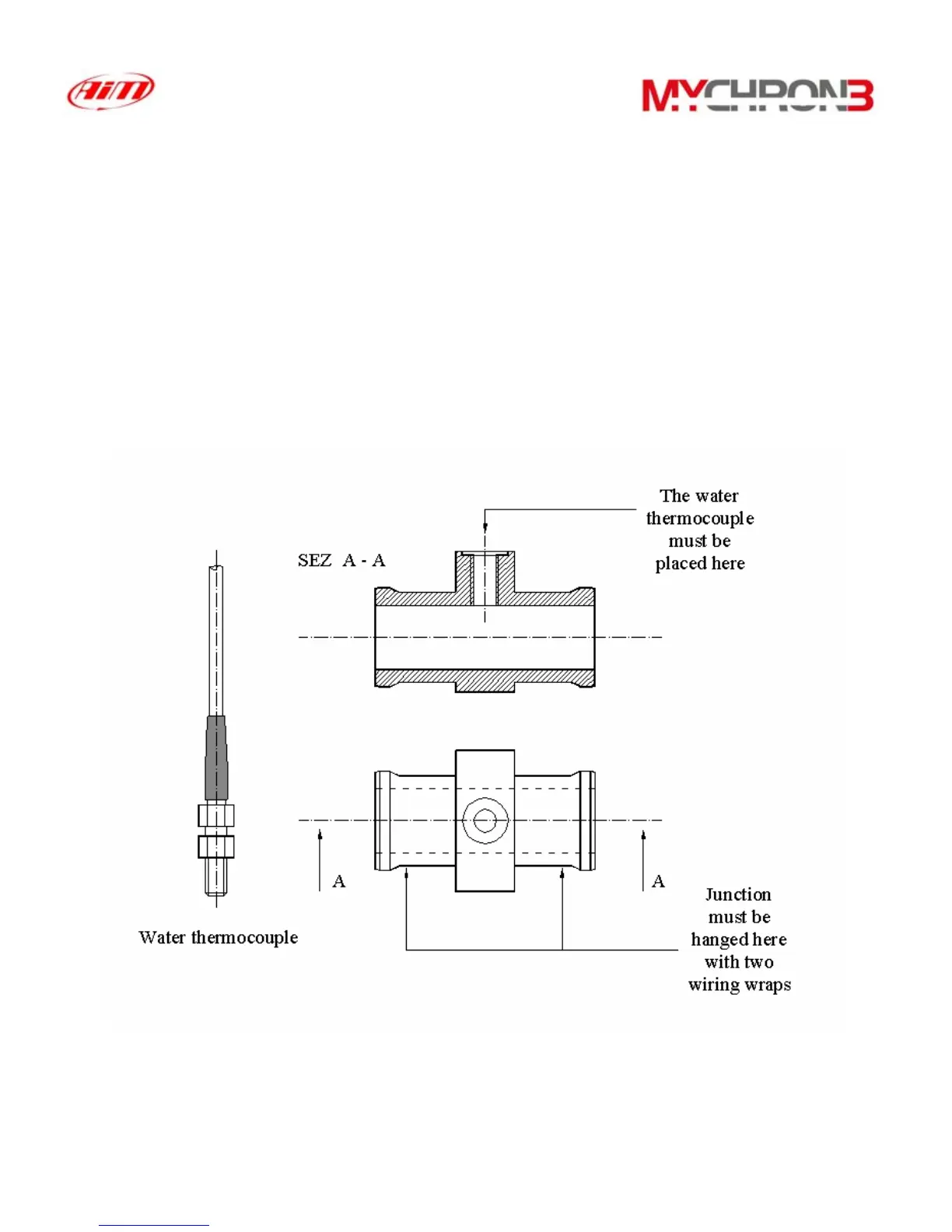

In the following drawing it is represented how to correctly install the water
thermocouple for the M5 type.
17
