Connecting cables to MyChron 3
Once correctly installed all the parts of your MyChron 3, you need to connect
them to the main display unit.

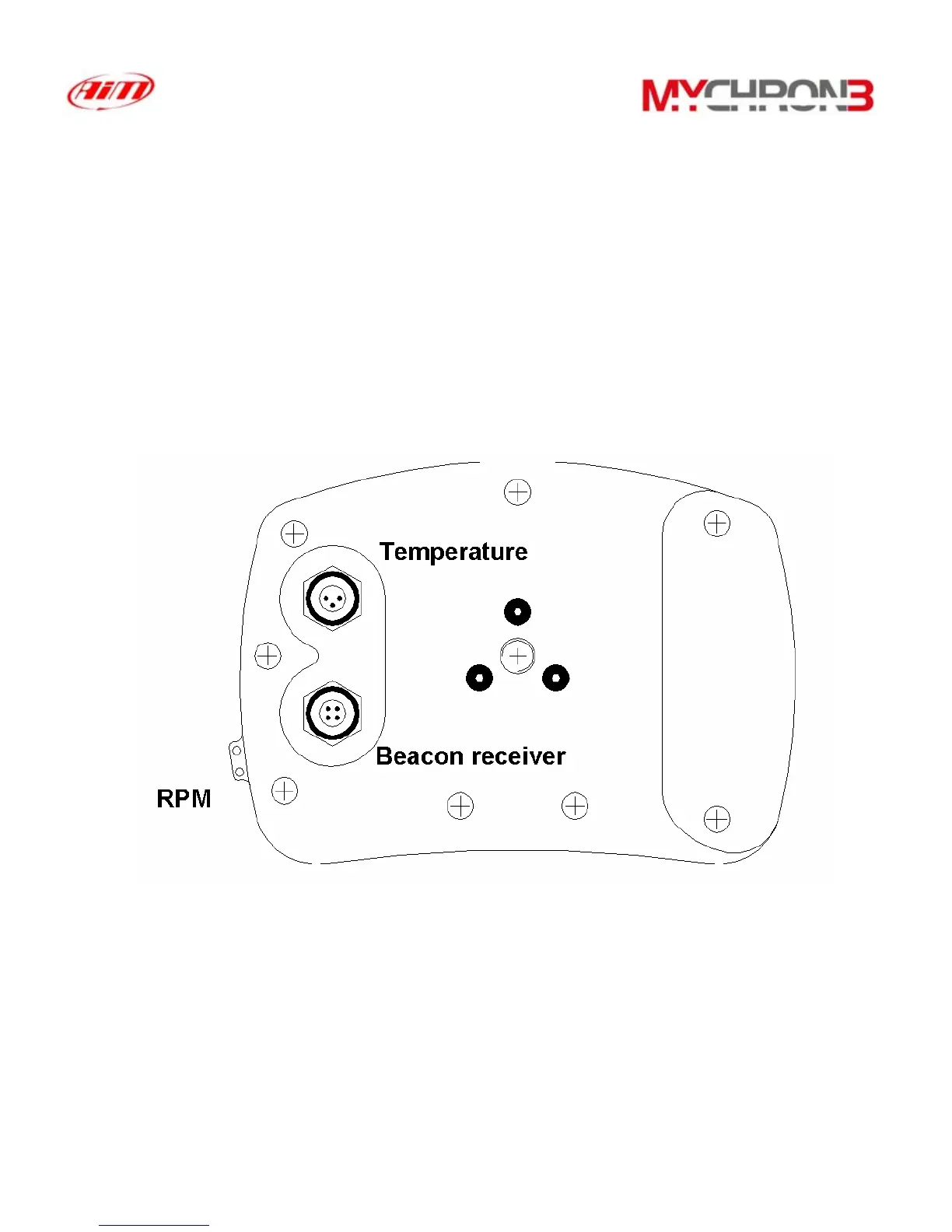

On the back of the display unit you have to connect the temperature cable to the
upper binder and the lap cable to the lower one. The RPM cable must be placed
inside the two holes on the left of the display unit ( watching it from behind ).
21
