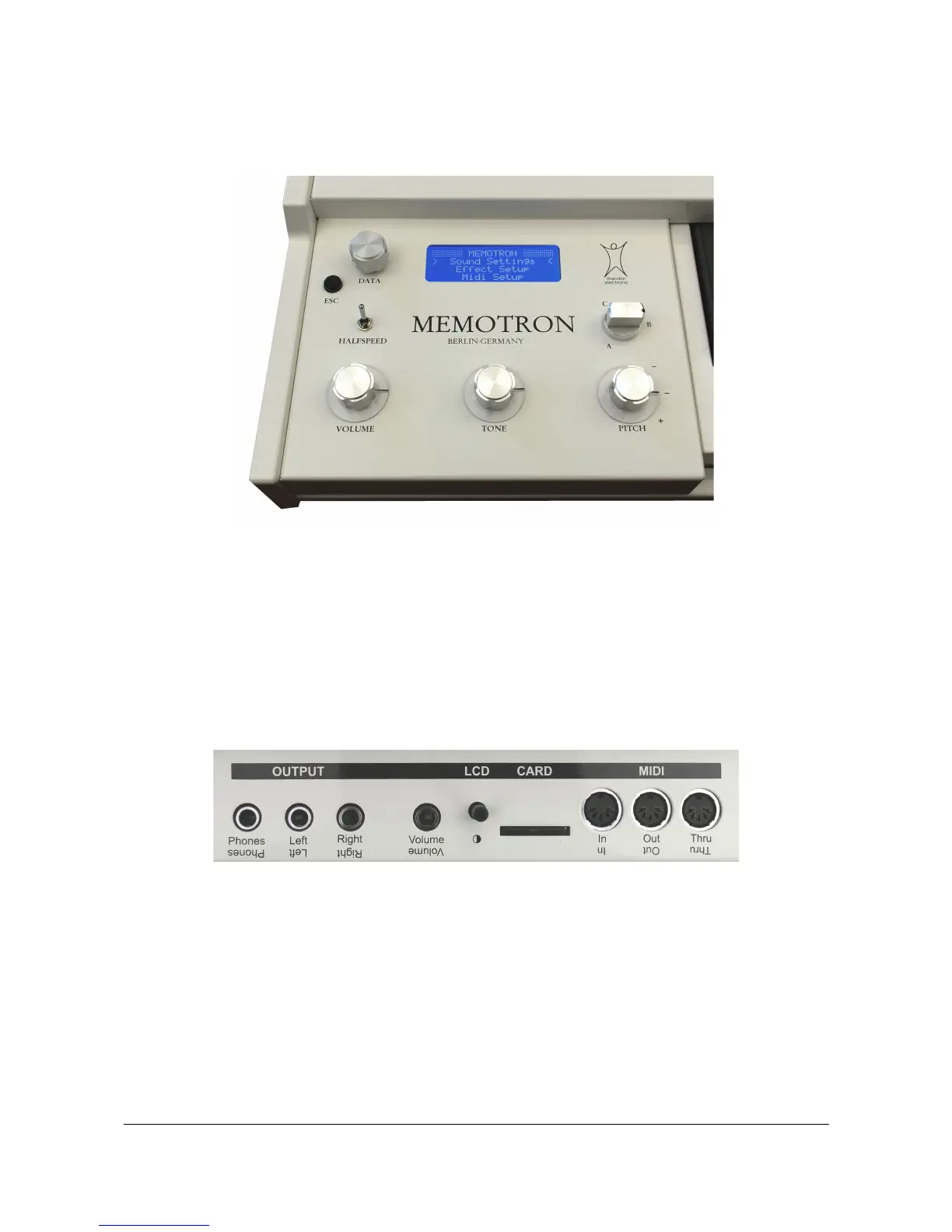

Controls & Connectors
Top
DATA: Encoder with click function to edit menu-driven functions
ESC: Exits the current menu page, cancels a function
HALF SPEED: Simulates the halving of the tape speed
A B C: Simulates the track selector for shifting the tape heads from sound to sound
PITCH: Pitch alteration by +/- 3 halftones
TONE: Changes the sound by means of a 12 dB lowpass filter
VOLUME: Master volume
Rear Panel
OUTPUT Phones: Headphones output jack
OUTPUT Left / Right: Audio output jacks, line level, unbalanced
PEDAL Volume: Socket for a volume pedal
LCD: Contrast control for the LC-display
CARD: Card slot for insertion of an external memory card (SD card)
MIDI In: MIDI-Data input jack
MIDI Out: MIDI-Data output jack
MIDI Thru: Data coming in on MIDI-In jack is transmitted to the MIDI-thru jack
AC In: Power supply socket (110V – 240VAC & 50Hz / 60Hz)
3 Memotron m2k OS v1.3 User Manual
