85-03-01108 FV46 Page 51
4.2 UNPACKING THE FIREPLACE
The Fireplace arrives from the factory on a wooden pallet with a cardboard box encasing the pallet and Fireplace. To remove the
outer box, identify and remove four Philips head drywall screws that secure a cardboard L pincher at the bottom of each corner
of the box.
Lift the outer box vertically straight upward until lower edge of the box clears the top of the unit body. Set the box aside.
Mendota recommends recycling the outer box.

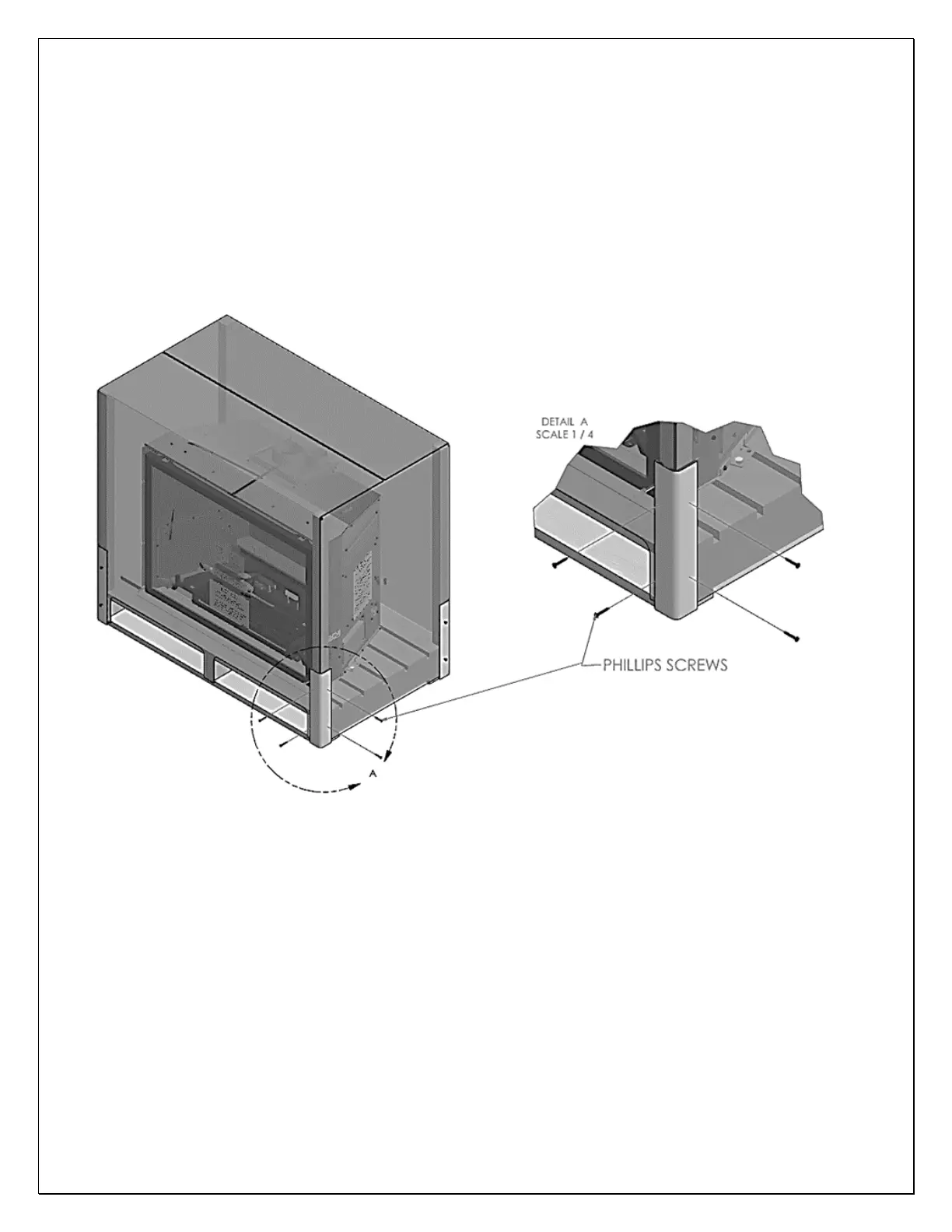

Figure 4-1 Outer Box Removal
