85-03-01108 FV46 Page 70

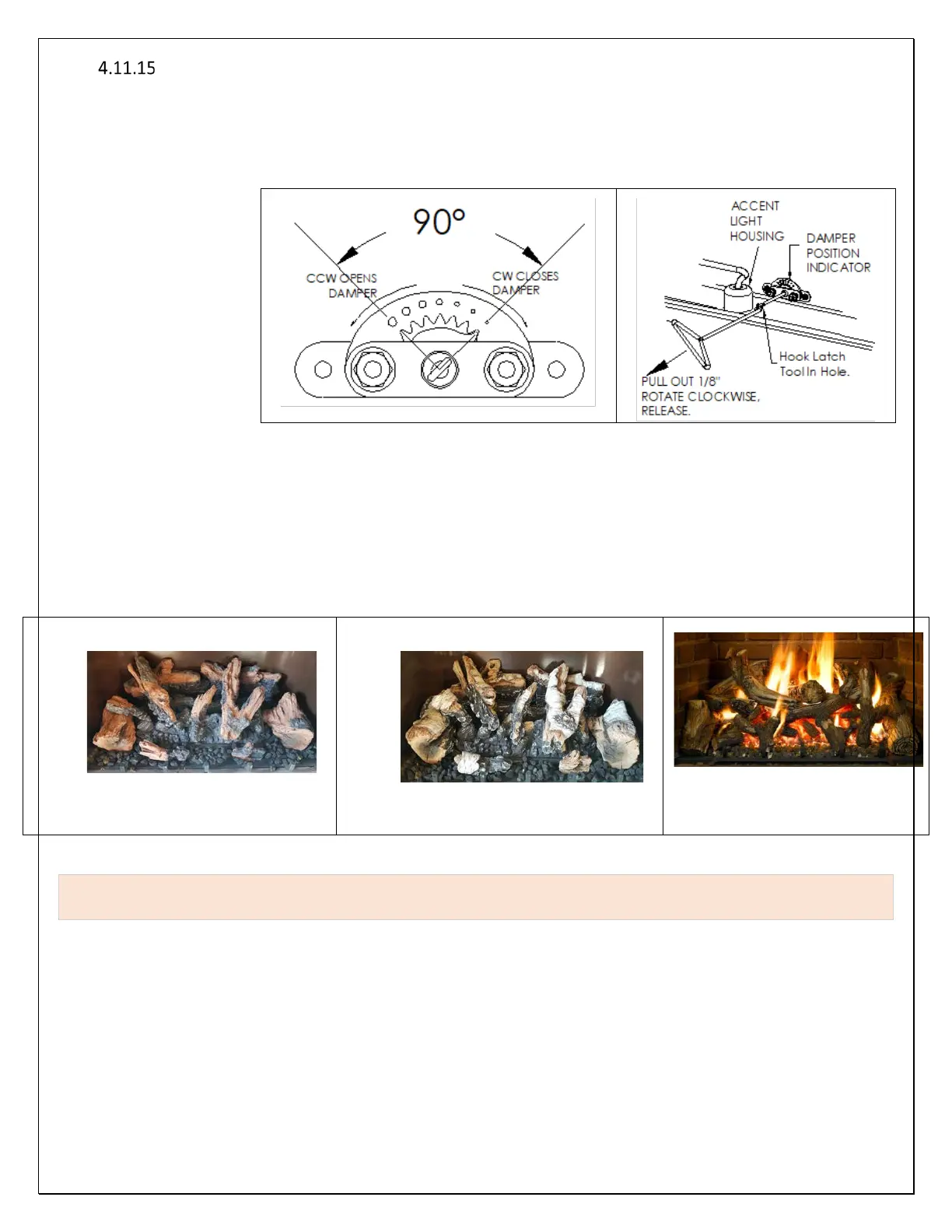

Vent Damper Adjustments
This fireplace is equipped with a vent damper system that can be adjusted using the glass latch tool. Locate damper adjustment
rod above the glass frame in convection chamber at the center. If this fireplace’s vent is terminated horizontally, DO NOT CLOSE
the vent damper completely. Adjust position of damper by judging the flame characteristics after 20 minutes of burn time. If the
flames ghost off burners or if sooting occurs [in LPG units], open the vent damper FULLY and work backwards in increments to
determine the correct
damper position for that
particular installation.
Look into the convection air
cavity and note the Damper
Position Indicator. Hook
glass latch tool in the hole
at the end of the damper
rod, pull outward about
1/8” and turn clockwise to
close the vent damper,
release. The base of the
damper adjustment rod has a pointer that indicates the position of the damper.
4.12 LOG SET/ MEDIA INSTALLATION
Four distinctive wood species log sets are available as options for this model Fireplace.
1. Norway Spruce Log Set
2. White Oak Log Set (not shown)
3. Birch Log Set
4. Premium Fiber Oak Log
Figure 4-16 Norway Spruce Logs
Figure 4-17 Birch Logs
Figure 4-18 Premium Fiber
Installation Instructions for each log set are included with the individual log set. Follow those instructions to install one log set.
Note: Installer, save and give the copy of the Log Set Installation Instructions to the homeowner for future
references.
