4.3 CONTENTS OF THE MANUAL PACKET
Once the outer box is removed, you will find the Fireplace body and a manual packet white box. This manual packet white box
includes the items shown in the table, below. Contact Mendota Technical Service if any parts are missing.
Glass Latch Tool #HA-77-00256
Must Leave with Homeowner.
Remote Control Transmitter # 05-02-00408. 3-AAA
Batteries # 65-06-01147.
Must Leave with Homeowner.
Backup Battery Holder #05-02-00345 & QTY 4- AA
Batteries #65-06-01147.
Must Leave with Homeowner.
Backup Power Harness #10-03-00128
Must Leave with Homeowner.
Light Bulb, G9 Xenon, 25w. #10-11-00020
Installation Required.
Light Lens Assembly Packet # HA-88-00167
(Light Lens, Lens Retainer Bracket w/ gasket, four
10-24 Nuts, Lens base gasket).
Installation Required.
Owner’s Manual.
Must Leave with Homeowner.
This Manual

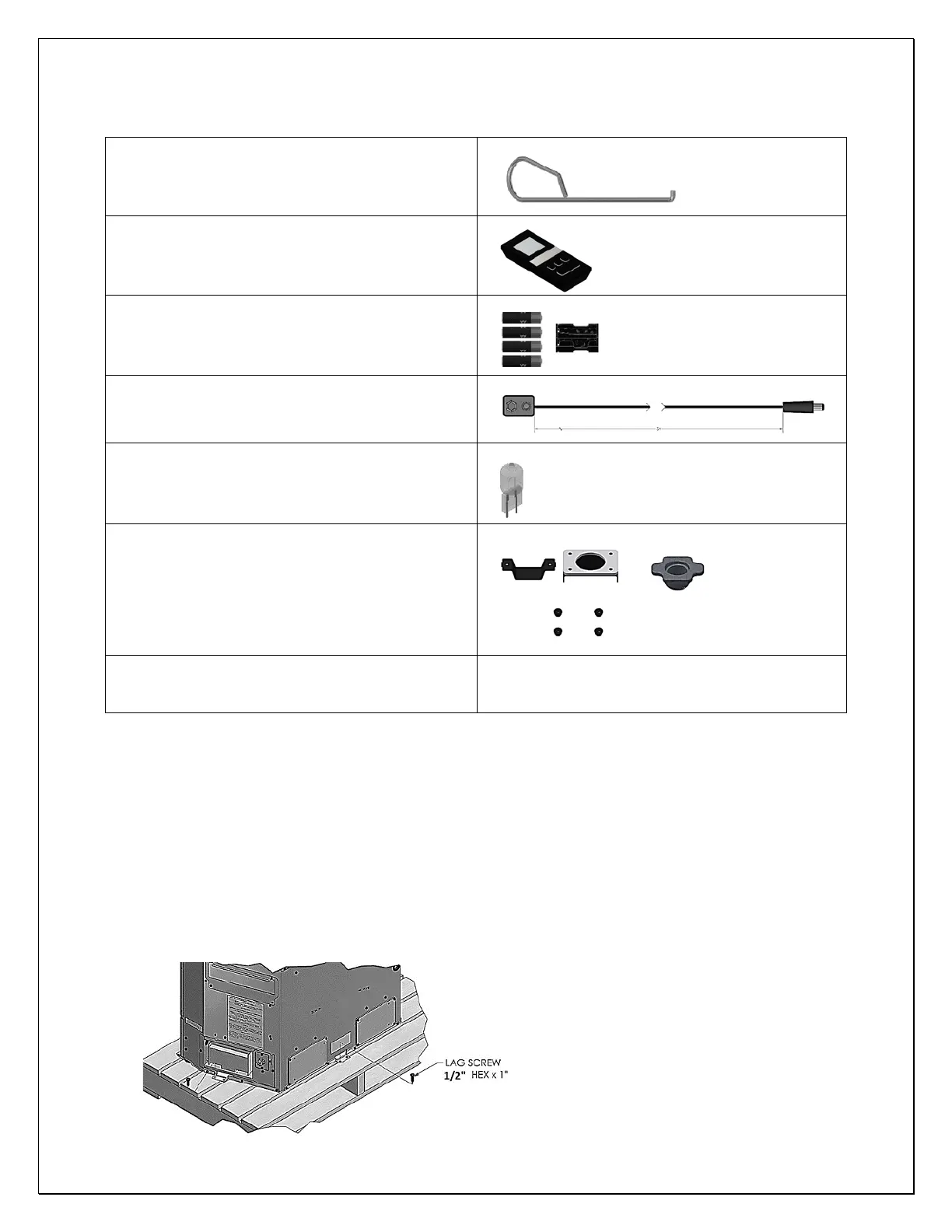

Figure 4-2 Manual Packet Contents
4.4 WHAT IS NOT INCLUDED WITH THIS APPLIANCE?
Log set, firebox lining or decorative front are not included with this base Fireplace product. One of many log set options, firebox
inner liner options and decorative fronts options must be selected and purchased separately.
4.5 UNBOLTING FIREPLACE FROM PALLET
The Fireplace body is bolted to the pallet top surface using 5/16” X 1” Lag Screws in a few points. One on each side and more at
the rear. Use a 1/2” socket and wrench to remove the lag screws and detach fireplace from the pallet top.
Figure 4-3 Unbolting Unit from Pallet
