Mendota FV48 - Page 24

85-03-01194 FV48 Page 24

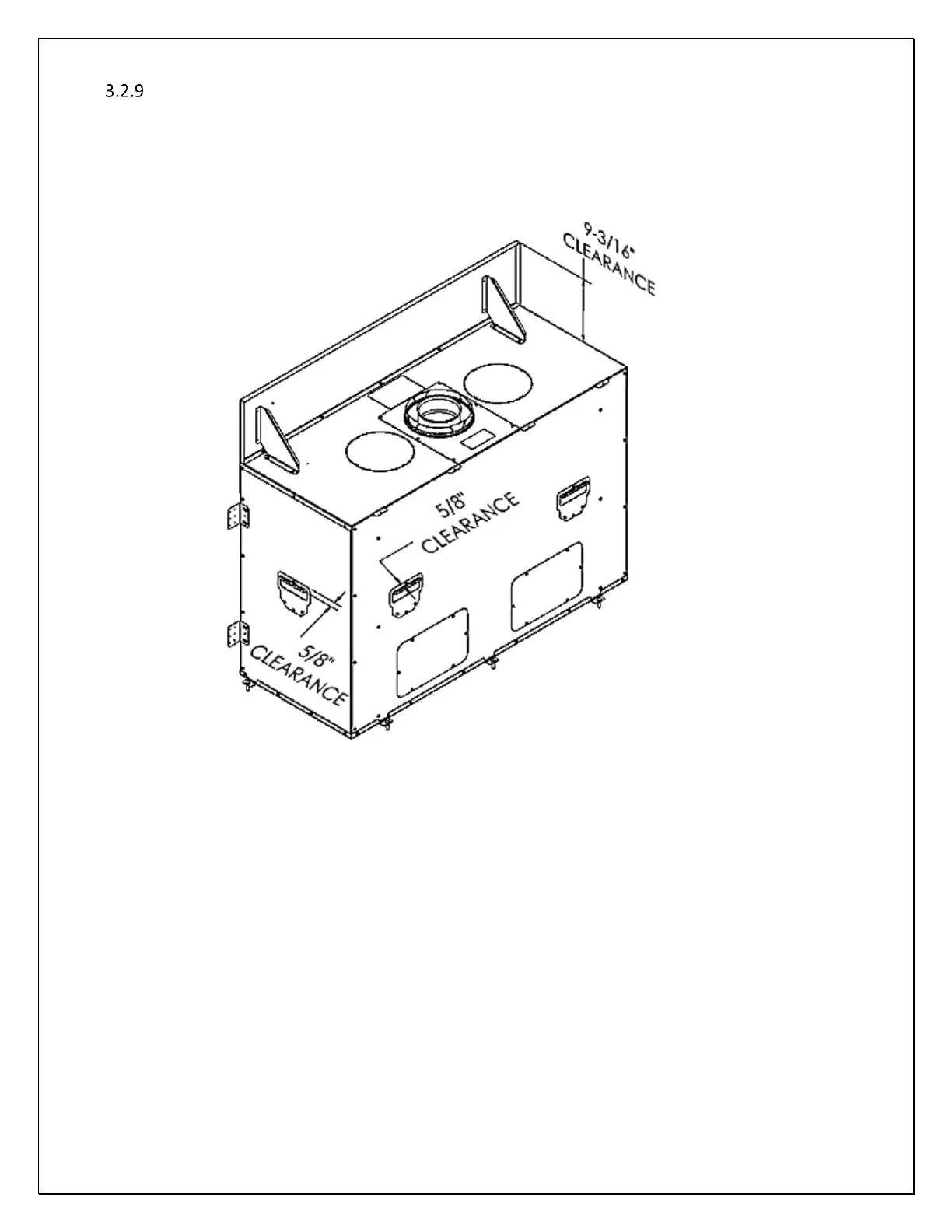

Clearance from Appliance
The required clearances to combustibles from this appliance’s body are:
1. 9-3/16” from appliance top surface
2. 5/8” from appliance side walls
3. 5/8” from appliance rear wall
Figure 3-18 CLEARANCE TO BODY
