Mendota FV48 - Page 66

85-03-01194 FV48 Page 66
V(2’ MIN)
H1 + H2 MAX
2’
9’ 11”
3’
19’ 6”
4’
32’
4’ – 12’
32’
For V greater than 12’, see
Master Venting Chart

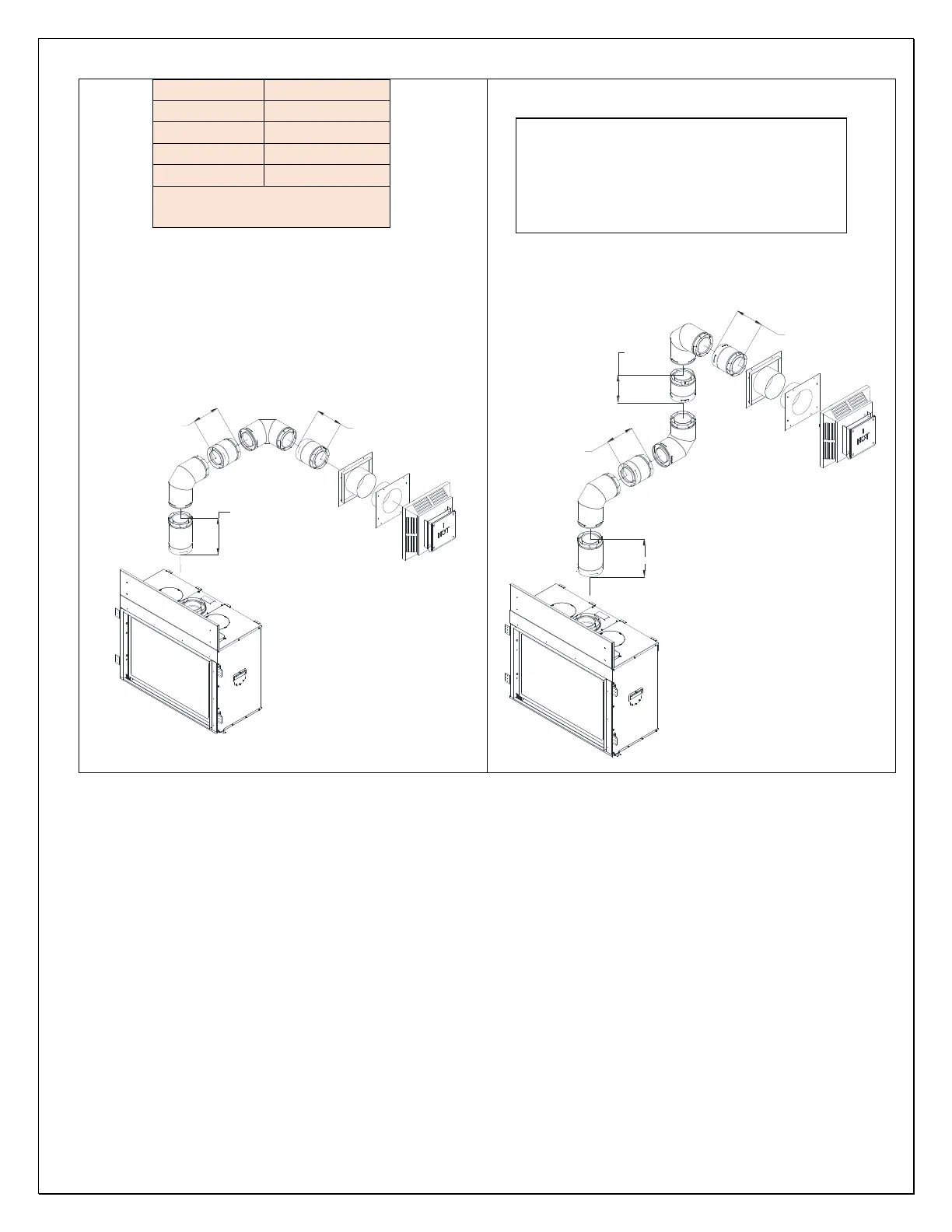

VERTICAL RISE
DUAL 90° ELBOWS
HORIZONTAL TERMINATION
H1
V
H2
H1
V2
V1
H2
Vertical Rise
Three 90° Elbows
Horizontal Termination
Use the Master Venting Chart to calculate
allowable lengths.
