FLUE VENTING COMPONENTS IDENTIFICATION
HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, please contact the
Mendota technical service department for specific venting requirements and venting restrictions.

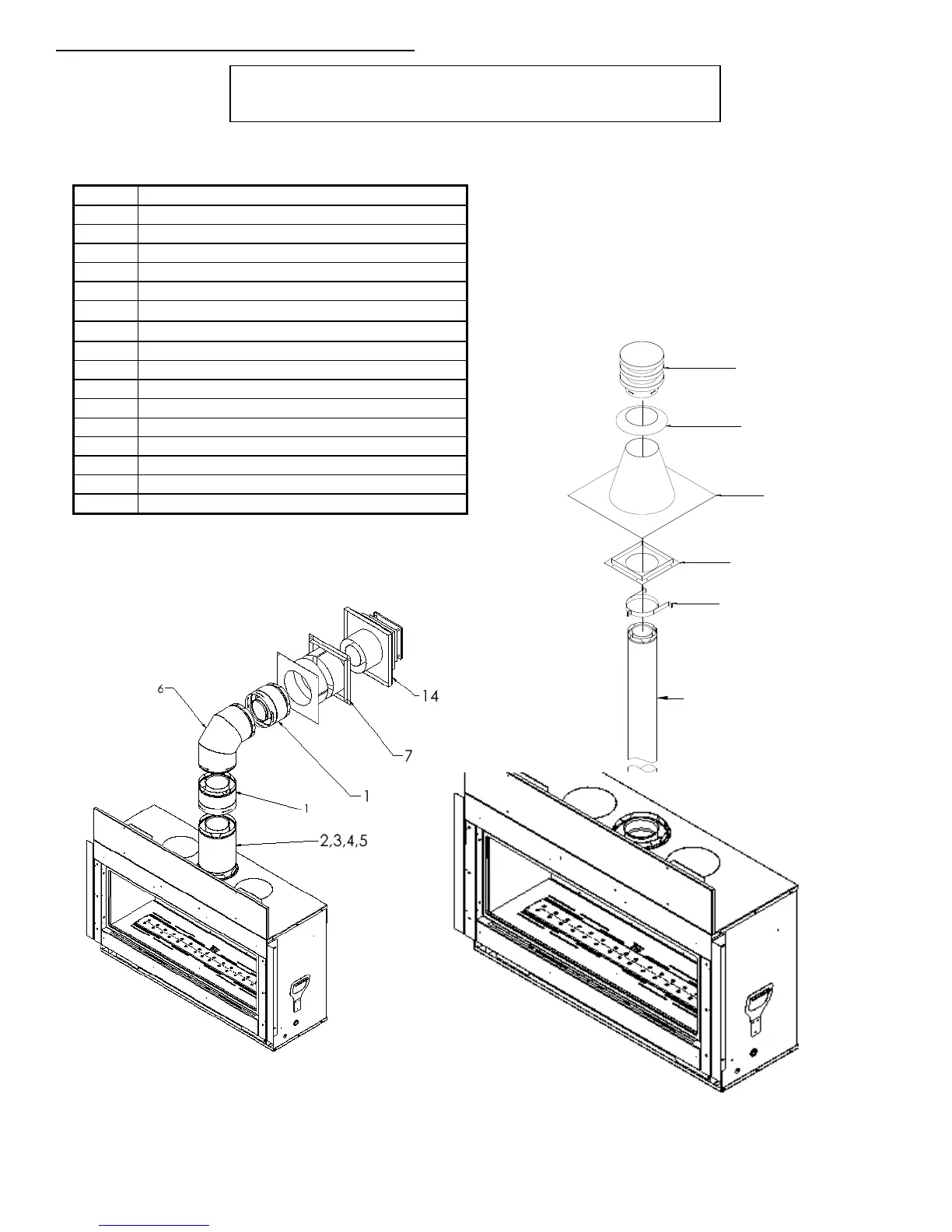

Figure 10: Flue Venting Components
ITEM
DESCRIPTION
1
6" or 7” PIPE (DuraVent 6”/Amerivent 7”)
2
12" VENT STACK
3
24" VENT STACK
4
36" VENT STACK
5
48" VENT STACK
6
90ºGALVANIZED ELBOW
45º GALVANIZED ELBOW
7
ADJUSTABLE WALL THIMBLE (not shown)
8
ATTIC INSULATION SHIELD 12"
9
ROOF FLASHING (0/12 TO 6/12)
10
ROOF FLASHING (7/12 TO 12/12)
11
STORM COLLAR
12
VERTICAL VENT CAP
13
SUPPORT BAND
14
HORIZONTAL VENT CAP
15
FIRE STOP SPACER
1 ,2 ,3 ,4 ,5
13
15
9 ,1 0
11
12
DO NOT SEPARATE TELESCOPING SECTIONS.
USE TELESCOPING SECTIONS AS COMPLETE ASSEMBLIES.
