BASIC MAINTENANCE
To access internal components for general service or maintenance requirements, remove any decorative front, remove
the glass door, remove all burner media, inner Panoramic Lining and floor plate, remove main burner. Locate
two access plates on the left and right side of firebox

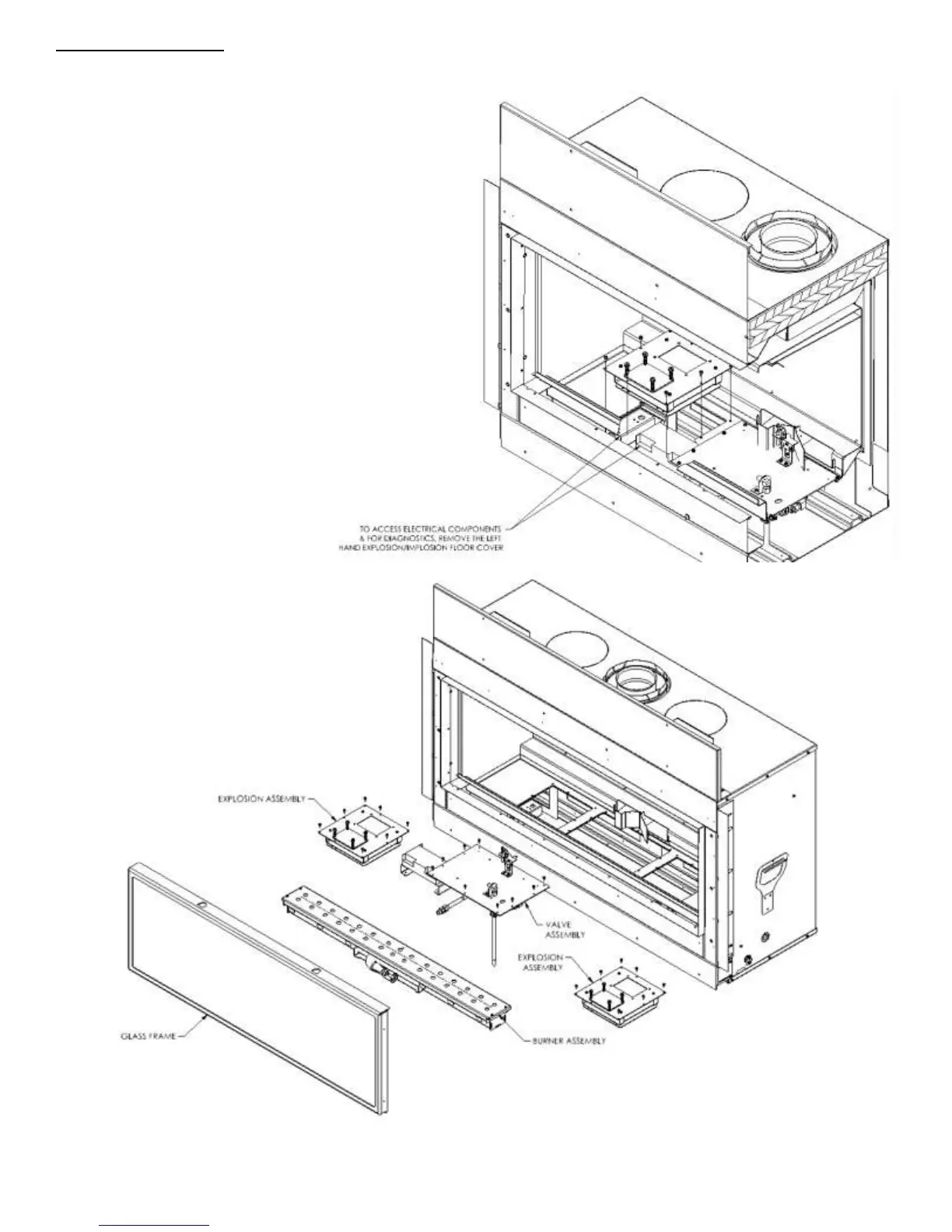

floor. See diagrams, below. Unscrew seven outer
screws and lift entire left or right cover plate assem-
bly which provides access to inner electronic com-
ponents and gas train systems.
The left cover plate assembly provides direct ac-
cess to the main electrical junction box and the
main ignition module and wiring connections.
