Mercury 175 Pro XS OptiMax

MAINTENANCE
eng 89
!
WARNING
Incorrect cable lubrication can cause hydraulic lock, leading
to serious injury or death from loss of boat control.
Completely retract the end of the steering cable before
applying lubricant.

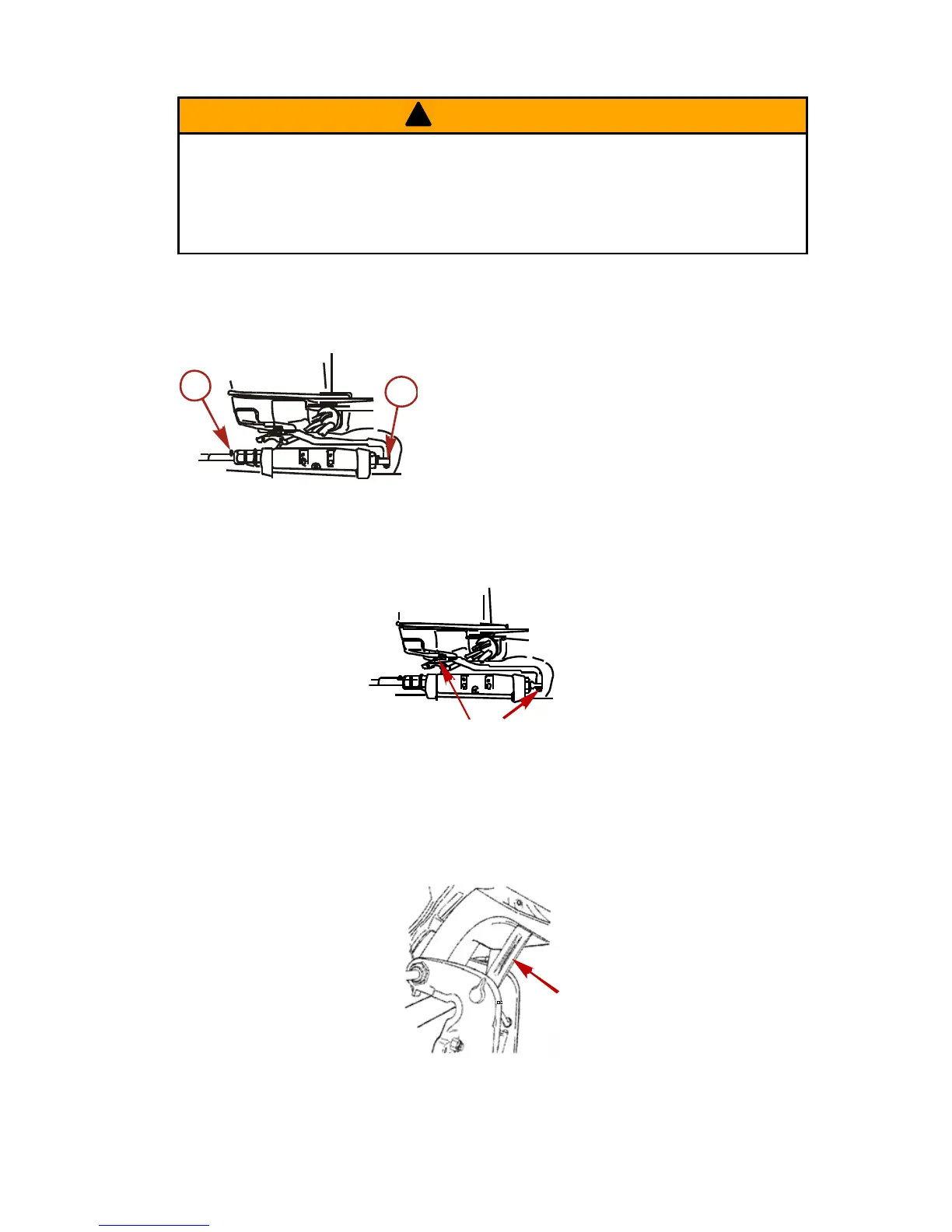

• Steering cable ‑ Rotate steering wheel to fully retract the
steering cable end into the outboard tilt tube. Lubricate
through fitting.
a - Fitting
b - Cable end
4. Lubricate the following with lightweight oil.
• Steering link rod pivot points ‑ Lubricate pivot points.
27876
Checking Power Trim Fluid
1. Tilt outboard to the full up position and engage the tilt
support lever.
27877
a
b
27875
