OUTBOARD INSTALLATION
120 eng

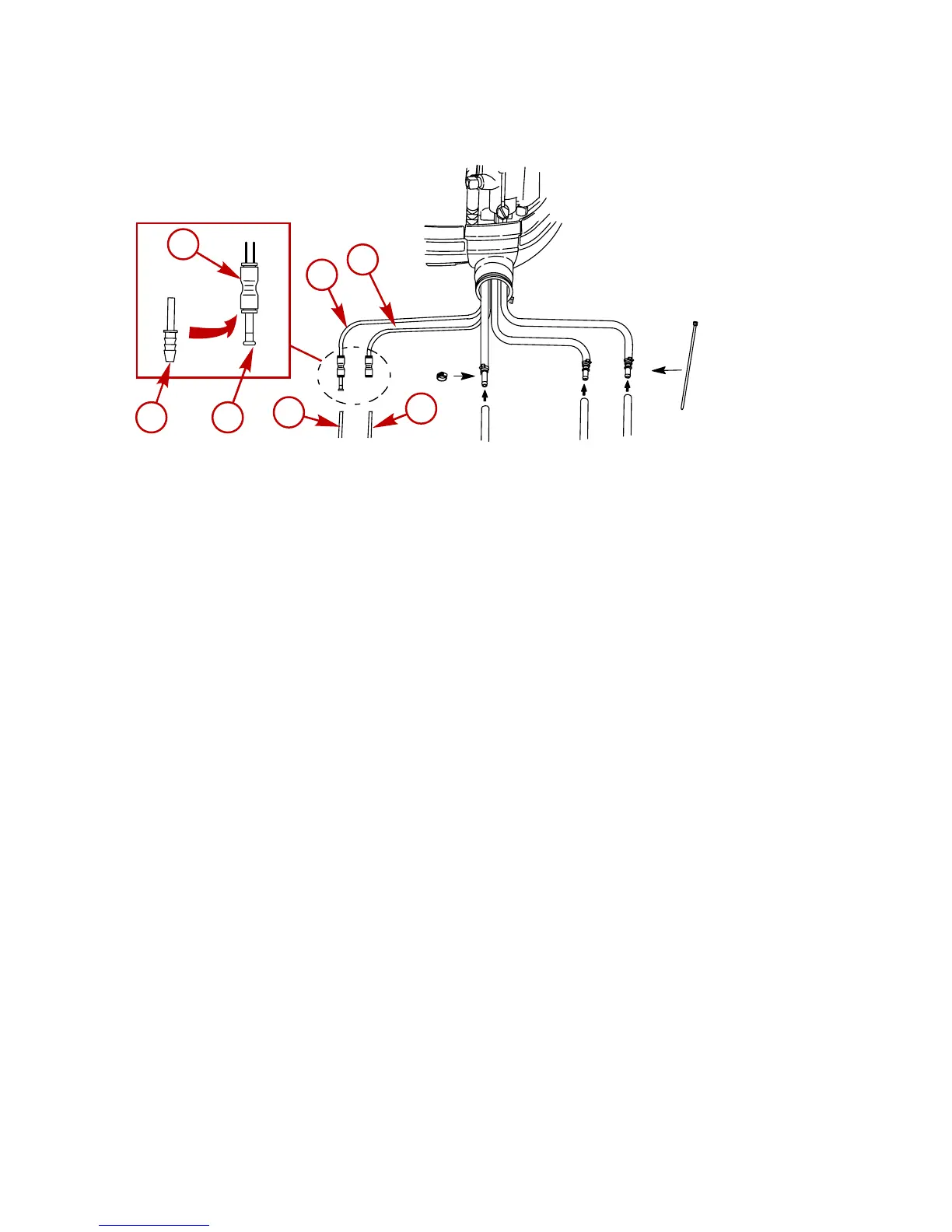

Make the water pressure gauge hose connection to this tubing
as follows:
a - Speedometer water pickup tube
b - Water pressure tube
c - Coupler
d - Plug
e - Barb hose fitting
f - Speedometer hose
g - Water pressure tube
Shift and Throttle Cable
COUNTERROTATION OUTBOARDS
Counterrotating (left‑hand) gearcases can be identified by a "L"
stamped into the end of the propeller shaft.
The Quicksilver Dual Engine Console Mount Control is required
to shift the counterrotation outboard. The installation instructions
shipped with the control explain the procedure required to
connect this control to a counterrotation outboard.
7728
c
e
d
g
f
a
b
