OUTBOARD INSTALLATION
126
eng

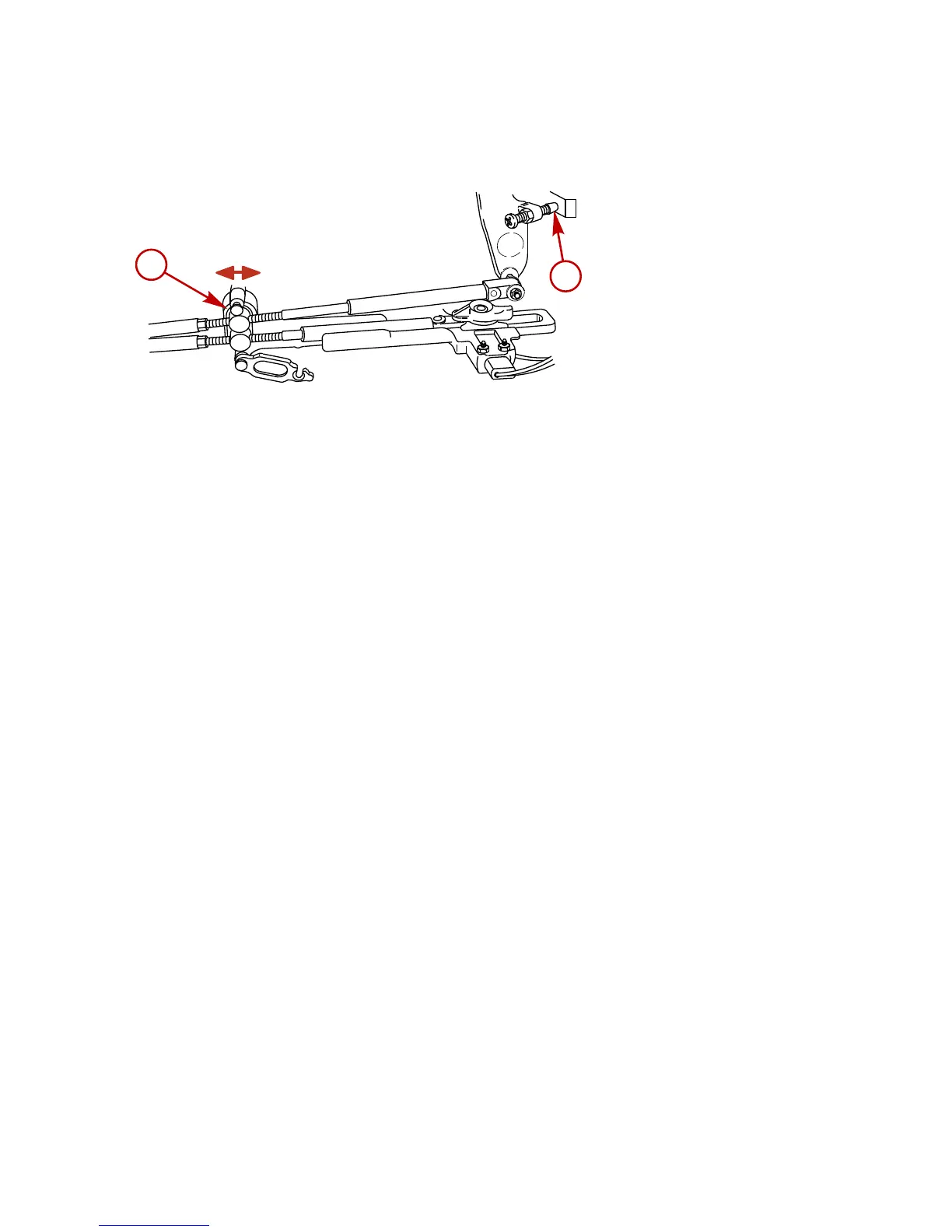

3.
取付けたスロットルケーブルのアイドルストップスクリュ
がストッパーに突当たるように、
スロットルケーブルバレル
を調整します。
a -
スロットルケーブルバレル
b -
アイドルストップスクリュ
4.
スロットルケーブルの調整を下の要領で点検します:
a.
リモートコントロールを数回シフトさせ、
スロットルリン
ケージを作動させます。 必ずプロペラシャフトを回転さ
せながら、リバースにシフトします。
b.
リモートコントロールをニュートラルに戻します。 アイ
ドル調整スクリュとアイドルストップの間に薄い紙を当
てます。 紙を軽い抵抗をもって破かずに取外すことがで
きる場合、プレロードは適切です。 必要な場合は、ケー
ブルバレルを再調整します。
a
b
4366
137
