INSTALLATION
20
ob00323
If changing conditions cause the RPM to drop below the recommended range, such as warmer, more humid
weather, operation at higher elevations, increased boat load, or a dirty boat bottom/gearcase, a propeller change
or cleaning may be required to maintain performance and ensure the outboards durability.

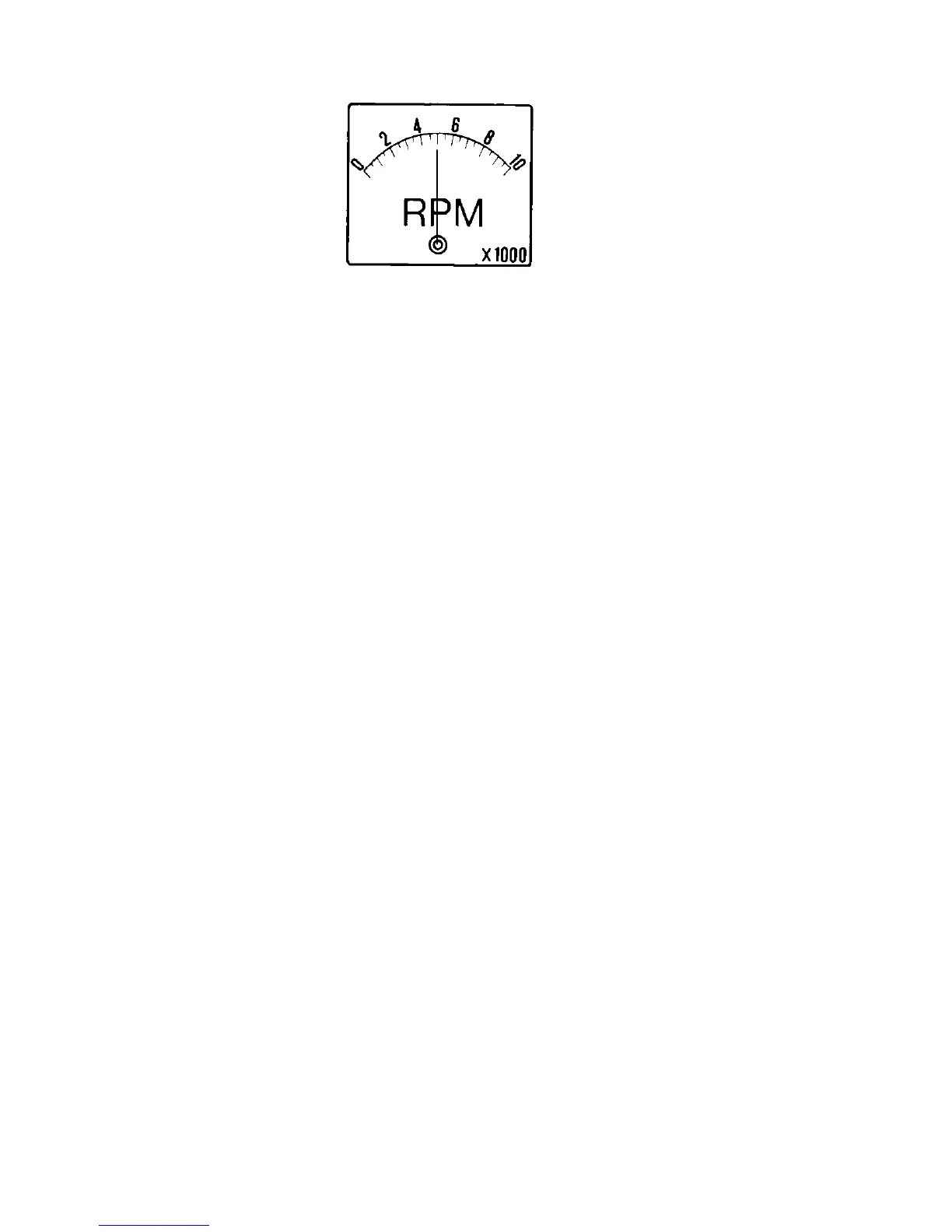

Check full‑throttle RPM, using an accurate tachometer, with the engine trimmed out to a balanced‑steering
condition (steering effort equal in both directions) without causing the propeller to break loose.

Mercury 200 Specifications

General

Fuel Induction System	Electronic Fuel Injection (EFI)
Displacement	3.0L (181 cubic inches)
Horsepower	200 HP
Alternator Output	60-amp
Shaft Length	20", 25"
Steering	Hydraulic
Weight	505 lbs (20" shaft), 515 lbs (25" shaft)
Starting System	Electric
