OUTBOARD INSTALLATION
98
Electrical, Hoses, Control Cables and Front Clamp

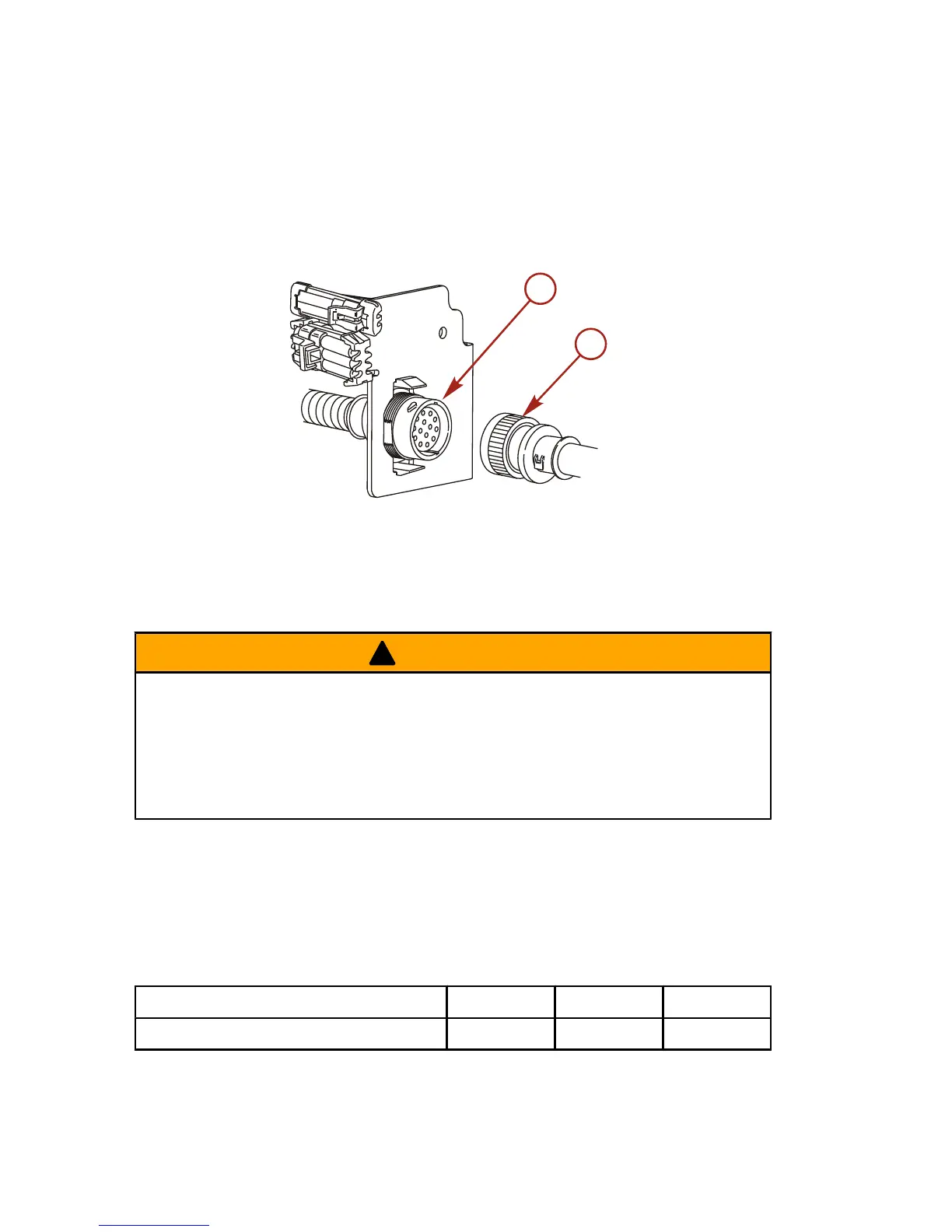

REMOTE WIRING HARNESS
Route the remote 14 pin boat harness through the front clamp
opening in the bottom cowl. Connect remote harness to the 14 pin
connector on the engine harness.
a - 14 pin connector b - Remote 14 pin boat
harness
BATTERY INFORMATION
!
WARNING
Failure to properly secure the battery leads can result in a loss
of power to the Digital Throttle and Shift (DTS) system, leading
to serious injury or death due to loss of boat control. Secure the
battery leads to the battery posts with hex nuts to avoid loose
connections.
• Do not use deep cycle batteries. Engines must use a marine
starting battery with 1000 MCA, 800 CCA, or 180 Ah.
• When connecting engine battery, hex nuts must be used to
secure battery leads to battery posts. Torque nuts to
specification.
Description Nm lb. in. lb. ft.
Hex nuts 13.5 120
IMPORTANT: Battery cable size and length is critical. Refer to
engine installation manual for size requirements.
