OUTBOARD INSTALLATION
90
!
WARNING
Improper fasteners or improper installation procedures can result
in loosening or disengagement of the steering link rod. This can
cause a sudden, unexpected loss of boat control, resulting in
serious injury or death due to occupants being thrown within or
out of the boat. Always use required components and follow
instructions and torque procedures.
!
WARNING
Worn, loose, or seized steering components can lead to loss of
boat control. Inspect all steering attachment components for
wear, lubricate all attachment hardware, and check all fasteners
for proper tightness in accordance with the inspection and
maintenance schedule.

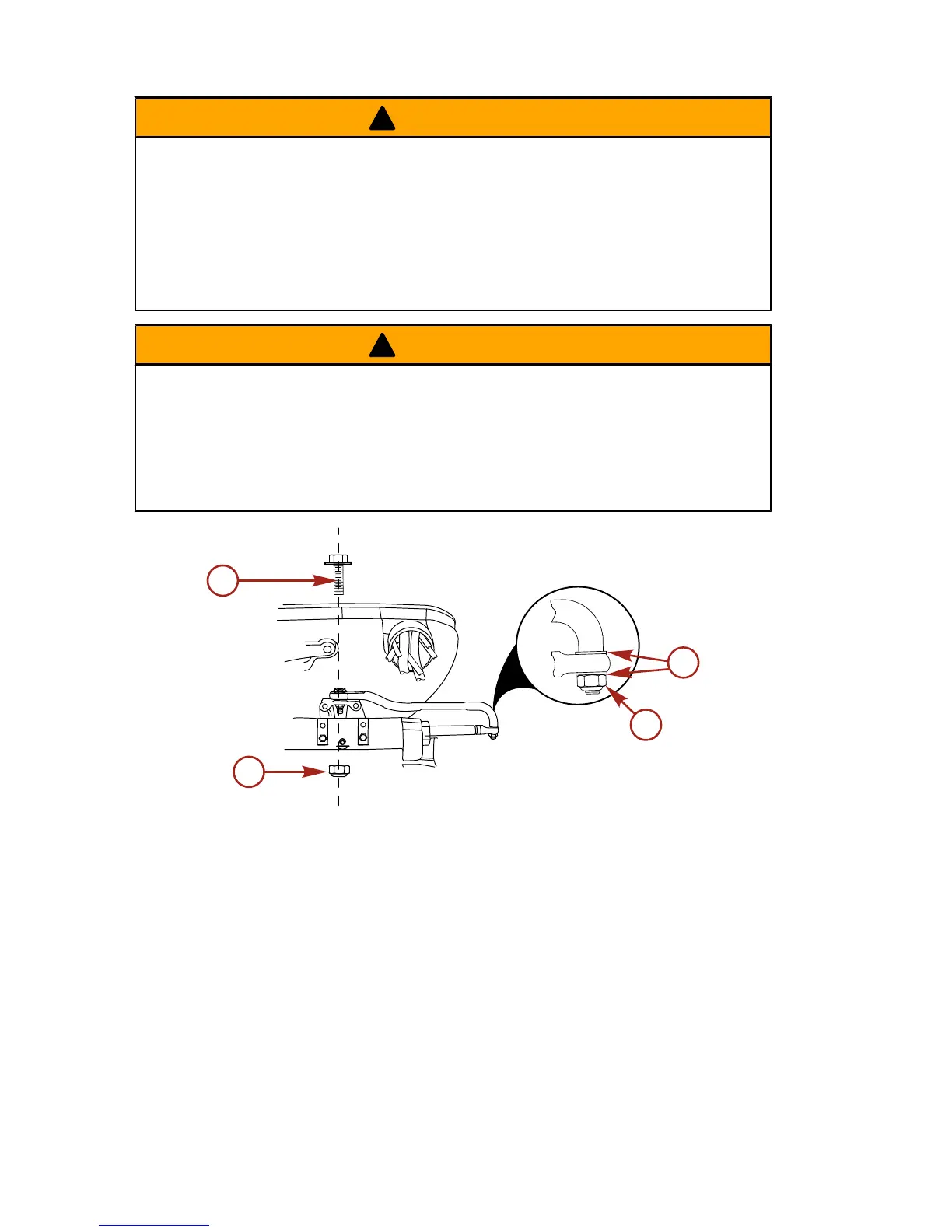

a - Special washer head bolt (P/N 10‑849838)
b - Nylon Locknut ‑ used on head bolt (P/N 11‑826709113)
c - Flat washer (2)
d - Nylon Locknut ‑ used on cable coupler (P/N
11‑826709113)
1. Assemble steering link rod to steering cable coupler with two
flat washers "c" and a self‑locking nylon insert locknut "d."
Tighten the locknut until it seats, then loosen ¼ turn.
2. Assemble the steering link rod to the engine with the special
washer head bolt "a" and self locking nylon insert locknut "b."
