7. Align the splines of the rear (3‑blade) propeller with the splines on the
shaft and slide the propeller into place on the inner shaft.

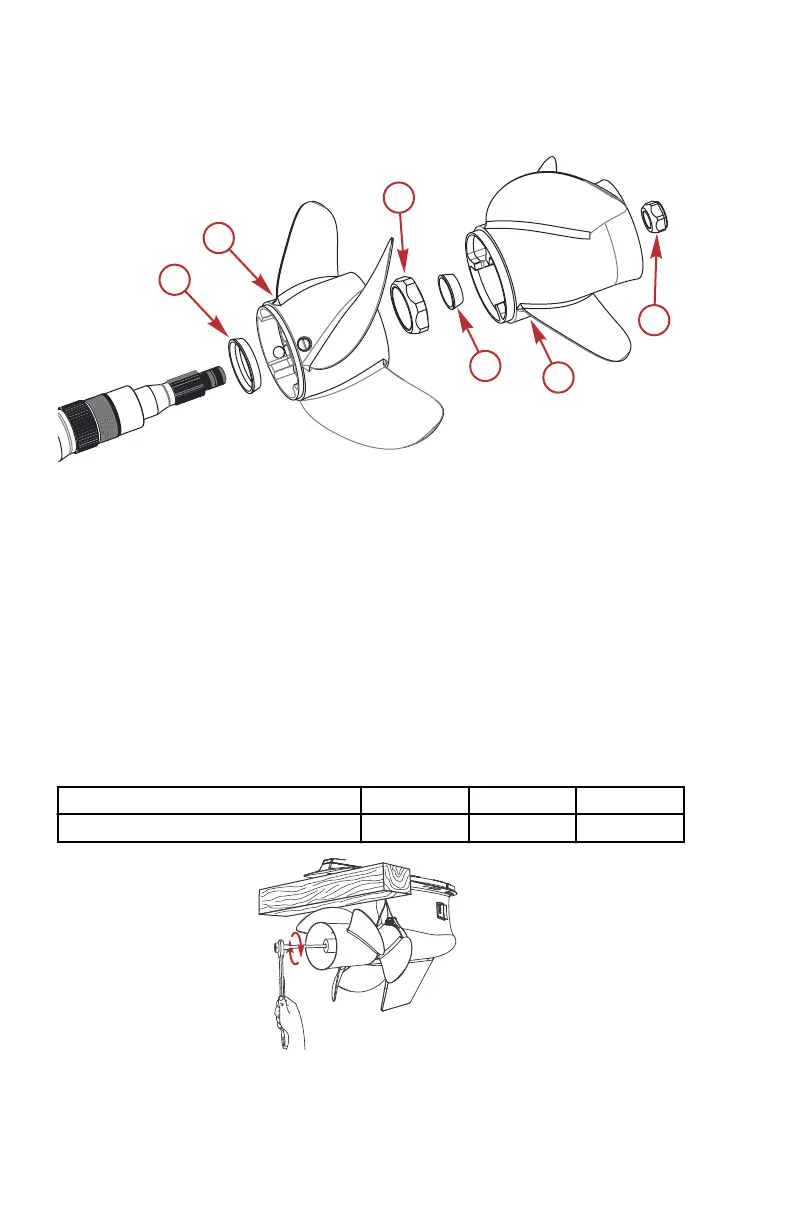

a - Large thrust hub
b - Front (4‑blade) propeller
c - Large propeller nut
d - Small thrust hub
e - Rear (3‑blade) propeller
f - Small propeller nut
8. Insert a block of wood between the propeller blades and the
anti‑ventilation plate, to prevent the propeller from turning during
tightening of the propeller nut.
9. Secure the propeller with the small propeller nut. Use a 1‑13/16 in. socket
to tighten the nut to the specified torque.
Description
Nm lb‑in. lb‑ft
Small propeller nut 135.6 100
72406
Propeller installation with a block of wood between blades and anti-
ventilation plate (typical)
71705
b
c
d
e
f
a
MAINTENANCE
112 eng
