3. Remove the suspected open fuse and look at the silver band inside the
fuse. If the band is broken (open), replace the fuse. To remove and
replace the fuse:
IMPORTANT: Replace the fuse with a new fuse with the same amp rating.
a. Remove the nut securing the fuse.
b. Remove the fuse.
c. Replace the fuse.
d. Replace the nut and tighten to the specified torque.
Description Nm lb‑in. lb‑ft
Fuse nut 12 106 –

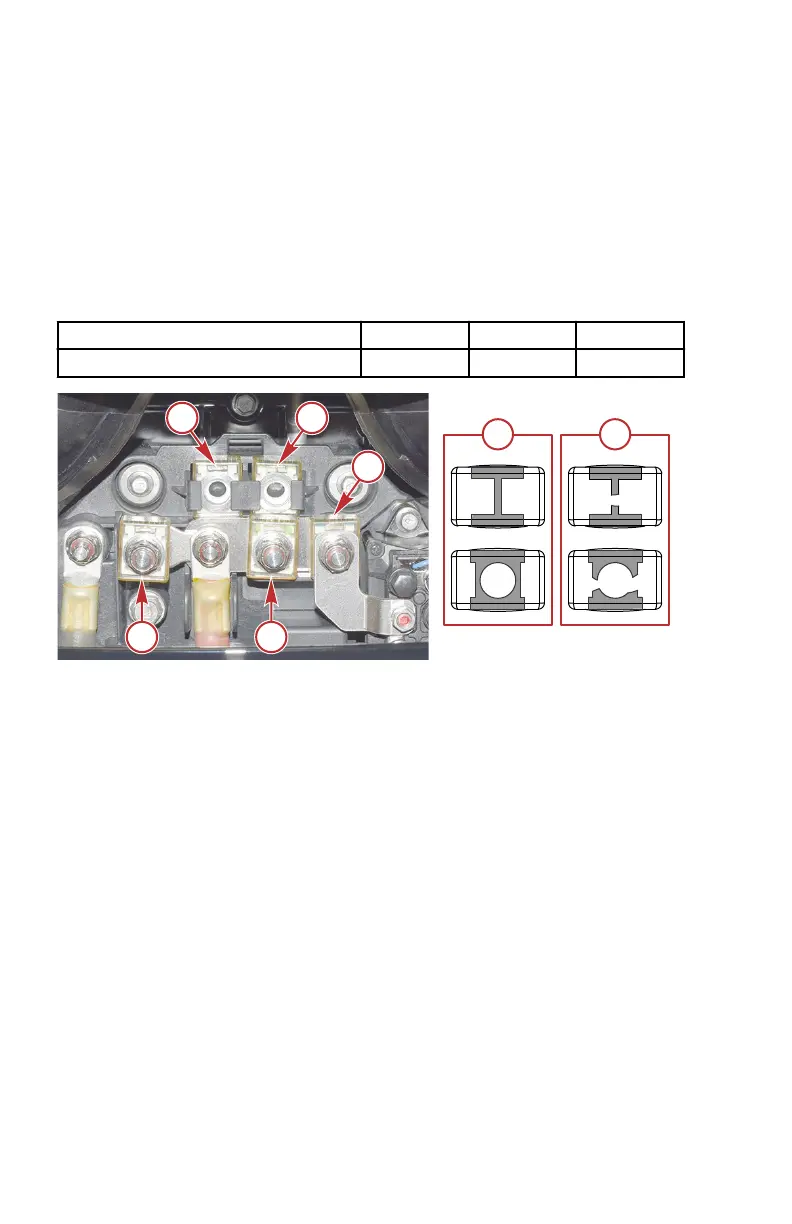

a - Spare ‑ 175‑amp
b - Spare ‑ 80‑amp
c - Trim ‑ 125‑amp
d - Steering ‑ 80‑amp
e - Alternator ‑ 175‑amp
f - Good fuses
g - Open fuses
MAINTENANCE
116 eng
