Use the buttons and lights on the ERC to control the Active Trim feature.

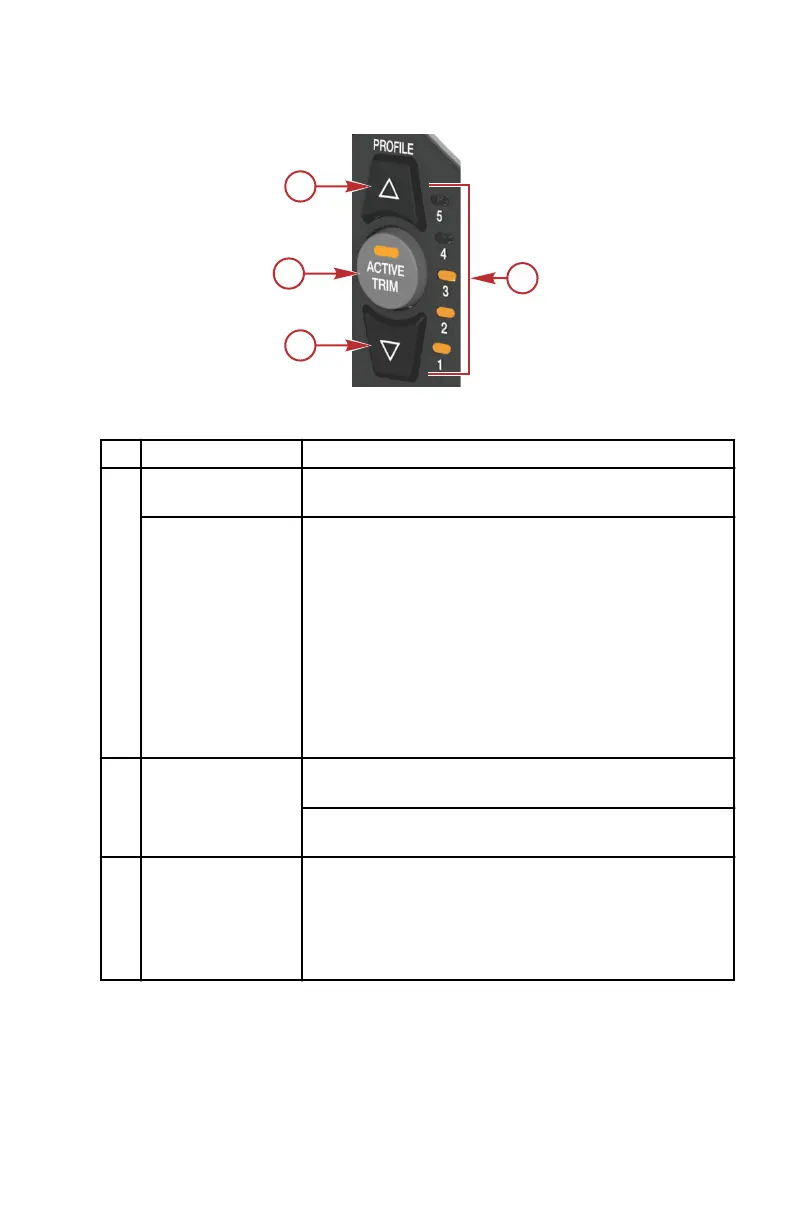

Active Trim controls on the ERC
Ref Control/LED Function
a
ACTIVE TRIM
button
Turns the Active Trim feature ON or OFF.
System status
light
Provides Active Trim status information:
• A constant amber light indicates that the system
is working normally.
• A flashing amber light indicates that the Active
Trim system is not controlling trim (user
override). Press the ACTIVE TRIM button to
resume Active Trim control.
• A flashing red light indicates a problem with the
system. Refer to Active Trim Red Status
Light.
b
PROFILE select
buttons (▲ and ▼)
Up (▲) ‑ Changes the adjustable trim profile to a
more aggressive trim curve (more trim angle).
Down (▼) ‑ Changes the adjustable trim profile to a
less aggressive trim curve (less trim angle).
c
Selected profile
indicator LEDs (1,
2, 3, 4, 5)
Indicates the adjustable profile currently engaged. 1
is the least aggressive trim profile; 5 is the most
aggressive.
NOTE: If the LED indicators are flashing, Active Trim
is in setup mode.
ACTIVE TRIM OPERATION
• Active Trim automatically controls trim to maintain the optimum engine or
drive position based on engine RPM and boat speed.
• Active Trim progressively trims out the engine or drive to maintain an
efficient running attitude.
FEATURES AND CONTROLS
eng 39
