MANUAL HOOD OPENING
IMPORTANT: The hood uses a gas shock to hold it in the fully open position.
The shock also aids hood opening, resulting in a force that may be unexpected
by the operator. Keep your body and all objects clear of the hood while it is
opening.
If the battery is discharged, the electric hood latch release button will not
function. To manually open the hood:

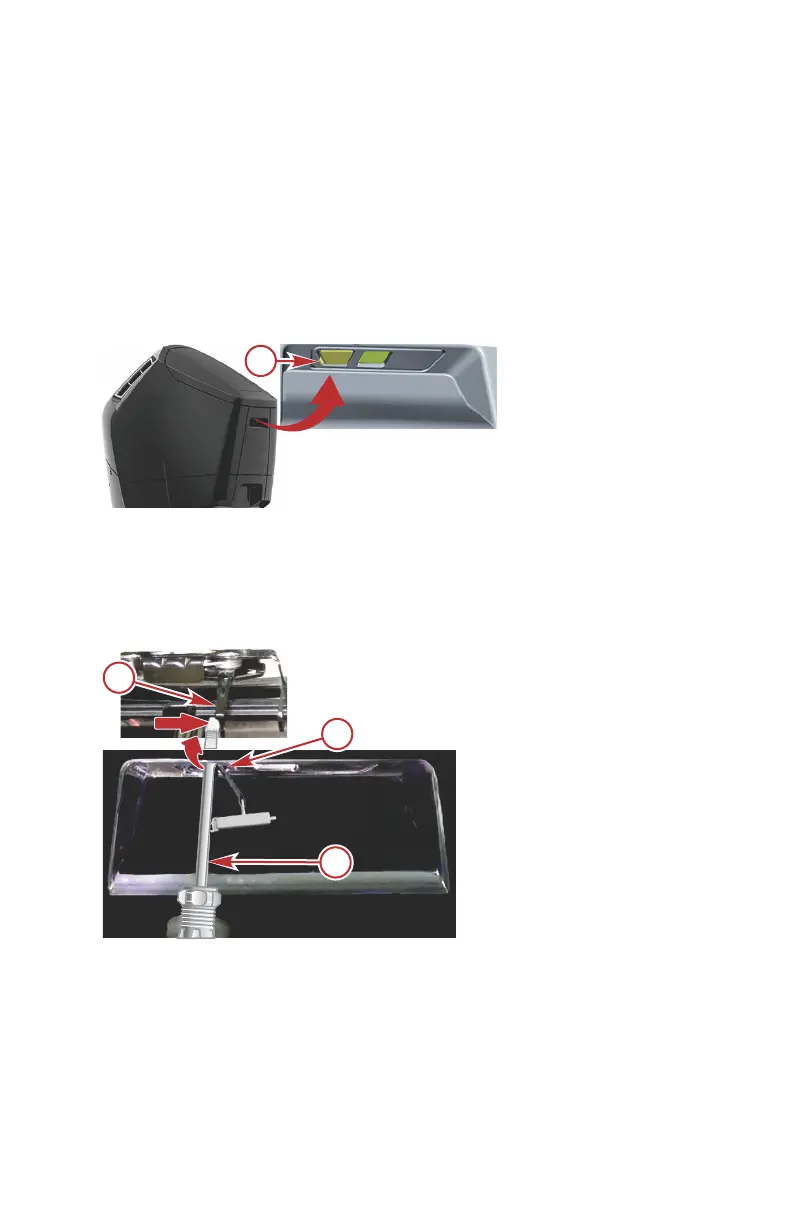

1. Push the manual override access plug tab to remove the plug from the
hood opening.
a - Manual override
access plug tab
2. Insert a flat‑blade screwdriver into the manual override access hole, and
open the latch by applying slight pressure to the latch with the
screwdriver.
NOTE: A slight downward force applied to the top of the hood may be
necessary to release pressure on the latch.
a - Latch
b - Manual override access
hole
c - Flat‑blade screwdriver
MAINTENANCE
eng 77
