4. Stow the electrical latch connector in the bracket located on the oil
dipstick tube.

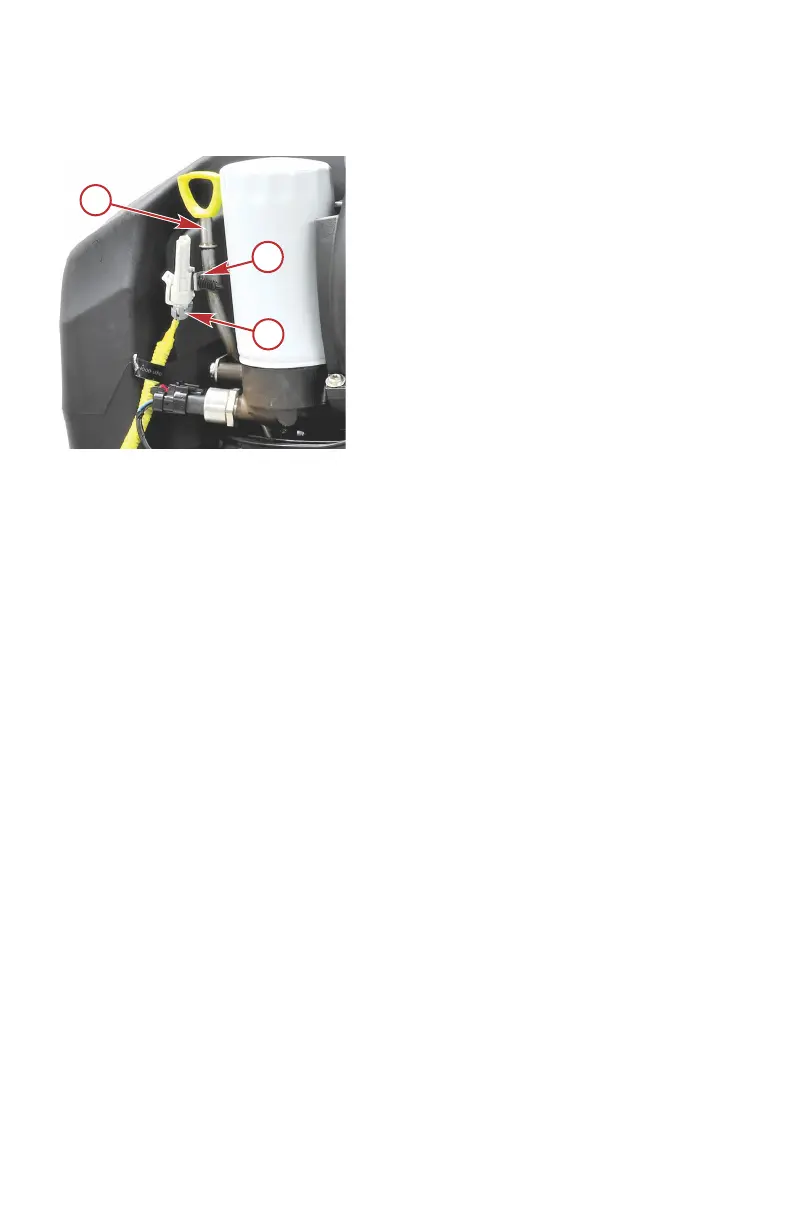

a - Oil dipstick tube
b - Bracket
c - Electrical latch connector
5. Using an M10 hex socket, and an 18 in. extension, loosen the two
fasteners from inside the top cowl.
NOTE: The two internal fasteners are self‑contained and will remain with the
top cowl after they are loose.
6. Turn the port side latch hook fastener one quarter turn clockwise to
release the port side latch hook.
NOTE: Two clicks will indicate that the latch hook is released.
7. Turn the starboard side latch hook fastener one quarter turn
counterclockwise to release the starboard side latch hook.
