Mercury V6 200 User Manual

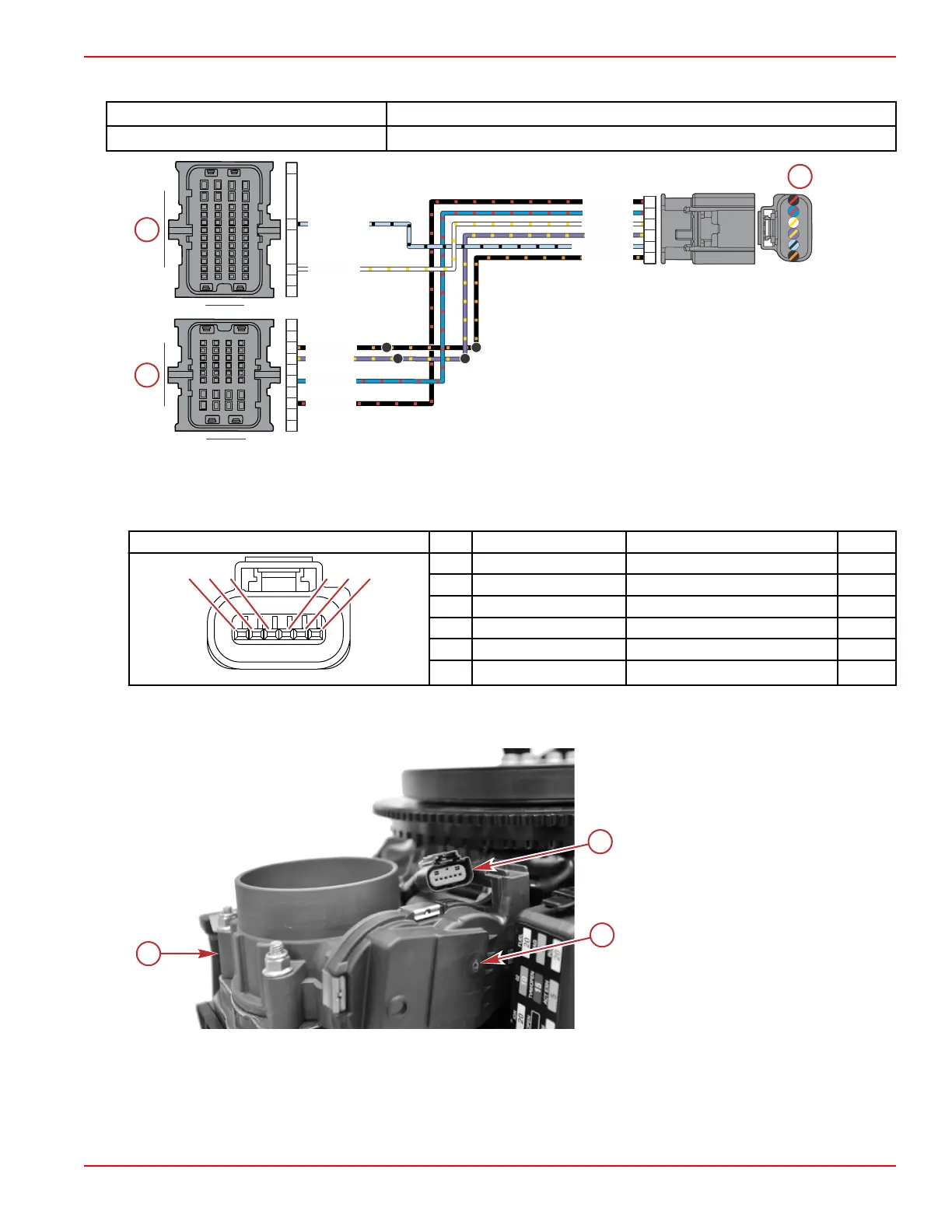

Use the DMT 2004 digital multimeter and test probe kit to check for continuity between the ETC and the PCM.
DMT 2004 Digital Multimeter 91‑892647A01
Terminal Test Probe Kit Bosch P/N MM‑ 46523
a - ETC connector
b - PCM connector B
c - PCM connector C
Connector Pin Wire Color Function PCM
65664
4
56 3
2 1
1 Black/red Throttle actuator A (+) CH2
2 Blue/red Throttle actuator B (–) CH1
3 White/yellow Throttle position 2 BJ4
4 Purple/yellow Sensor power A (+) CF1
5 Light blue/black Throttle position 1 BJ2
6 Black/orange Sensor ground A (–) CE1
1. Remove the cold air intake assembly. Refer to the appropriate service manual for details.
2. Disconnect the ETC from the engine harness.
a - Throttle body
b - ETC connector on the engine
harness
c - ETC
3. Remove the port intake manifold runner assembly. Refer to the appropriate service manual for details.
4. Disconnect the PCM from the engine harness. The connectors must be removed in sequence: A, B, and then C. Refer to
the appropriate service manual for details.
5. Test the engine harness for continuity between each of the ETC connector pins and the PCM connectors:
100C
100A
S101
101A
PPL/YEL
PPL/YEL
LT BLU/BLK
LT BLU/BLK
BLK/ORN
BLK/ORN
BLK/RED
BLK/RED
WHT/YEL
WHT/YEL
BLU/RED
BLU/RED
1
2
3
4
5
6
H4
E1
F1
H1
H2
A1
J2
M4
A1
J4
A B
C
D E F G H
J
K
AB
C
DEFGH
J
K
1
3
2
4
L
M
L
M
M
A
4
1
A
B
C
D
E
F
G
H
1
2
3
4
A
B
C
D
E
F
G
H
A
H
1
4
65463
a
b
c
66467
a
b
c
Actuators and Relays
90-8M0146617 eng JULY 2018 © 2018 Mercury Marine Page 5B-3

Mercury V6 200 Specifications

General

Engine Type	V6
Horsepower	200 hp
Fuel Induction System	Electronic Fuel Injection (EFI)
Steering	Big Tiller; Dual cable mechanical; Electro-hydraulic power steering; Hydraulic power steering
Gear Ratio	1.85:1
Shaft Length	20"; 25"
Starting	Electric
Alternator Output	60 amps
Weight	505 lbs (20")
