Trim Up Circuit
When contact 86 of the trim up relay is energized from the trim switch, the trim up relay is energized. Contacts 30 and 87 of the
trim up relay close, completing the circuit to 12 volts (+) to the blue trim motor lead. The trim down relay remains de‑energized.
The trim motor tilts the engine up.

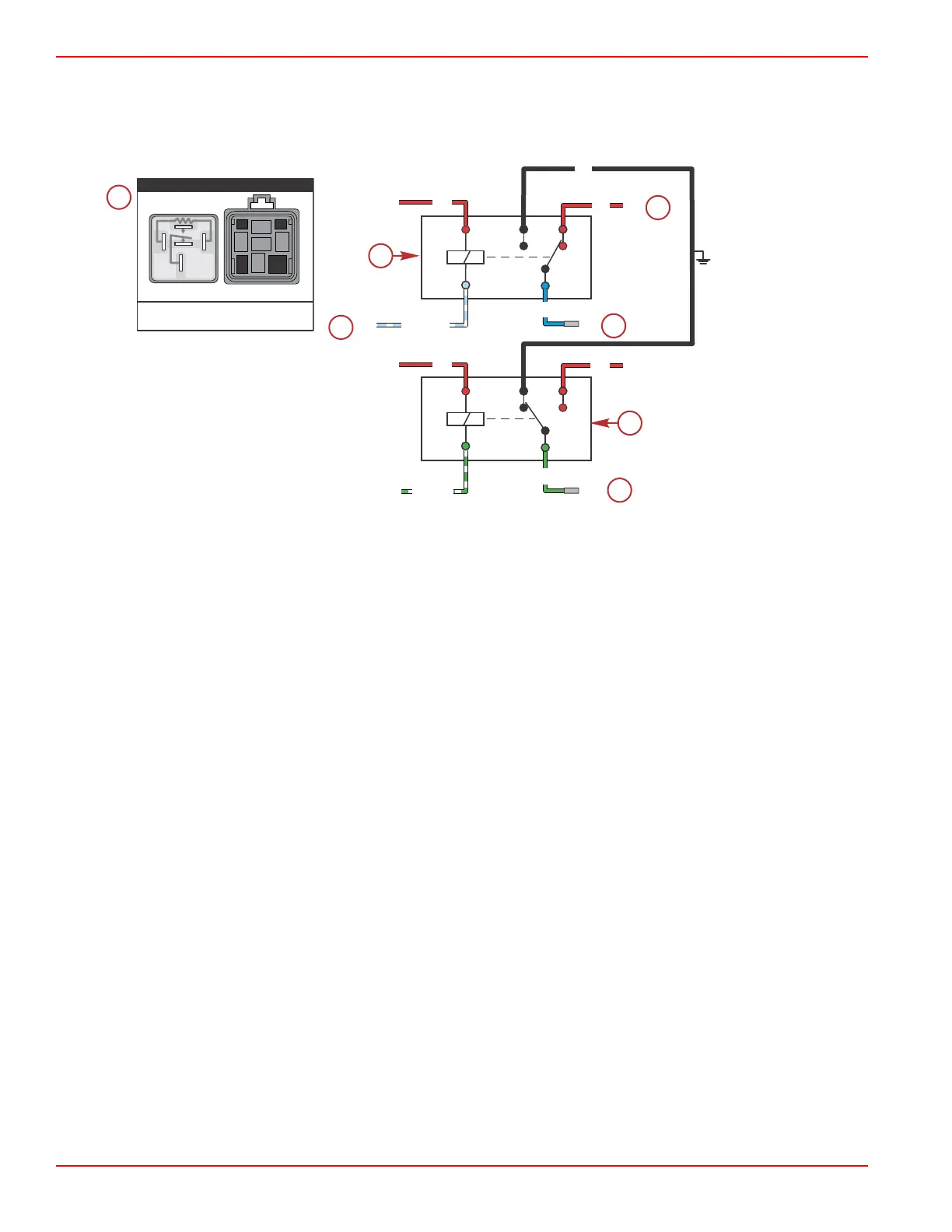

Trim up circuit
a - Trim relay contacts
b - Trim up relay
c - 12 volts (+)
d - To trim motor (+)
e - Trim down relay
f - To trim motor (–)
g - From PCM
85
86
30
87
87a
85
86
30
87
87a
GRN
RED
BLK
(+)
(+)
(+)
67464
a
g
c
d
f
b
e
(–)
GRN/WHT
LT BLU/WHT
(+)
RED
(+)
86
30
87
85
87a
87
87a
86
85
30
RELAY KEY
Relay Components
as Viewed Separated
Relay
Connector
(–)
(–)
RED
RED
BLU
Advanced Midsection (AMS) Power Trim
Page 6D-8 © 2018 Mercury Marine 90-8M0146617 eng JULY 2018

Mercury V6 200 Specifications

General

Engine Type	V6
Horsepower	200 hp
Fuel Induction System	Electronic Fuel Injection (EFI)
Steering	Big Tiller; Dual cable mechanical; Electro-hydraulic power steering; Hydraulic power steering
Gear Ratio	1.85:1
Shaft Length	20"; 25"
Starting	Electric
Alternator Output	60 amps
Weight	505 lbs (20")
