3. The DMT should indicate battery voltage. If battery voltage is not present, check the purple lead for a loose or dirty
connection or damaged wiring.

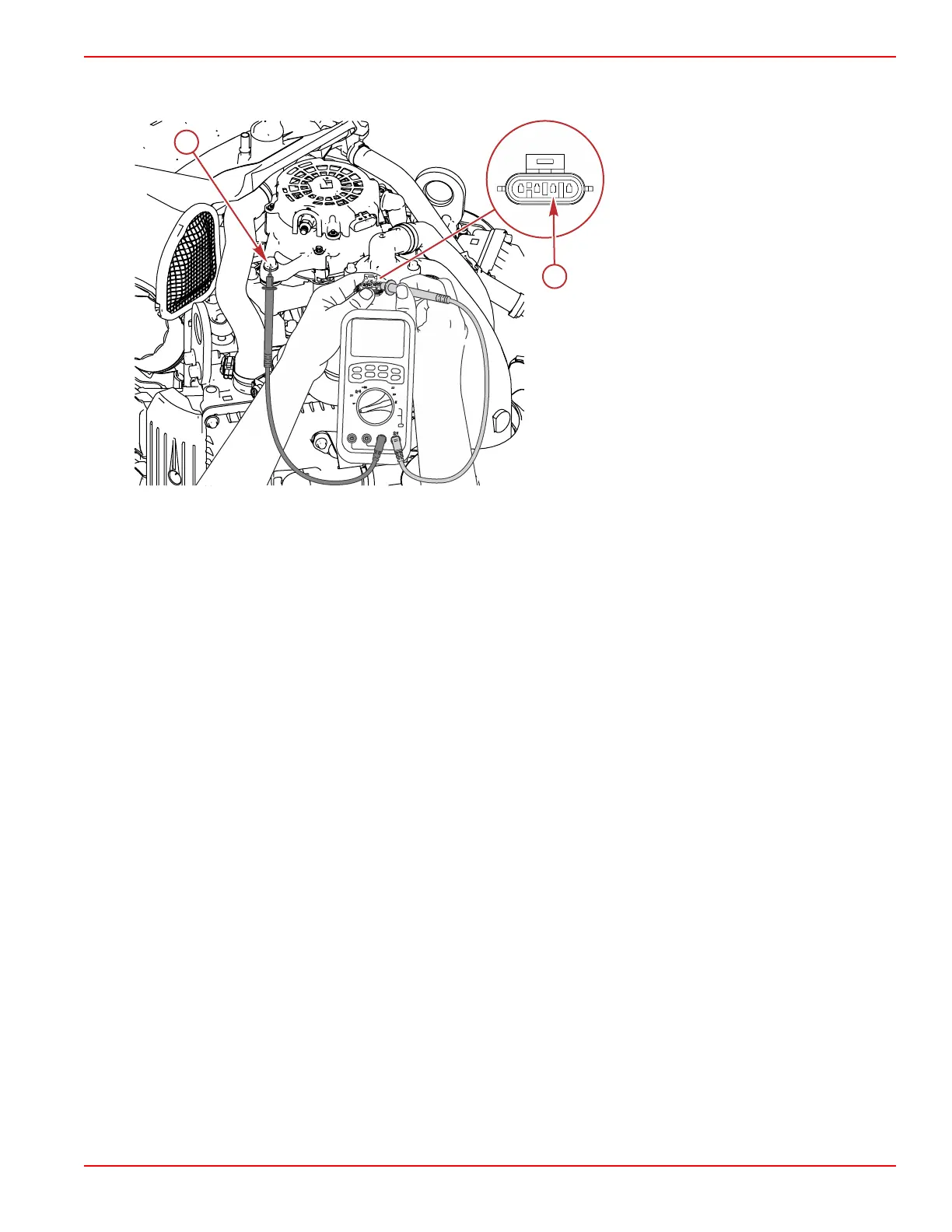

a - Excitation circuit purple lead
b - Alternator ground post
A
C
O
M
m
A
V
H
z
mV
V
H
z
TEMP
m
A
A
IG
IP
OFF
H
z
TEMP
12.75
a
b
66377
Charging and Starting System
90-8M0146617 eng JULY 2018 © 2018 Mercury Marine Page 6B-9

Mercury V6 200 Specifications

General

Engine Type	V6
Horsepower	200 hp
Fuel Induction System	Electronic Fuel Injection (EFI)
Steering	Big Tiller; Dual cable mechanical; Electro-hydraulic power steering; Hydraulic power steering
Gear Ratio	1.85:1
Shaft Length	20"; 25"
Starting	Electric
Alternator Output	60 amps
Weight	505 lbs (20")
