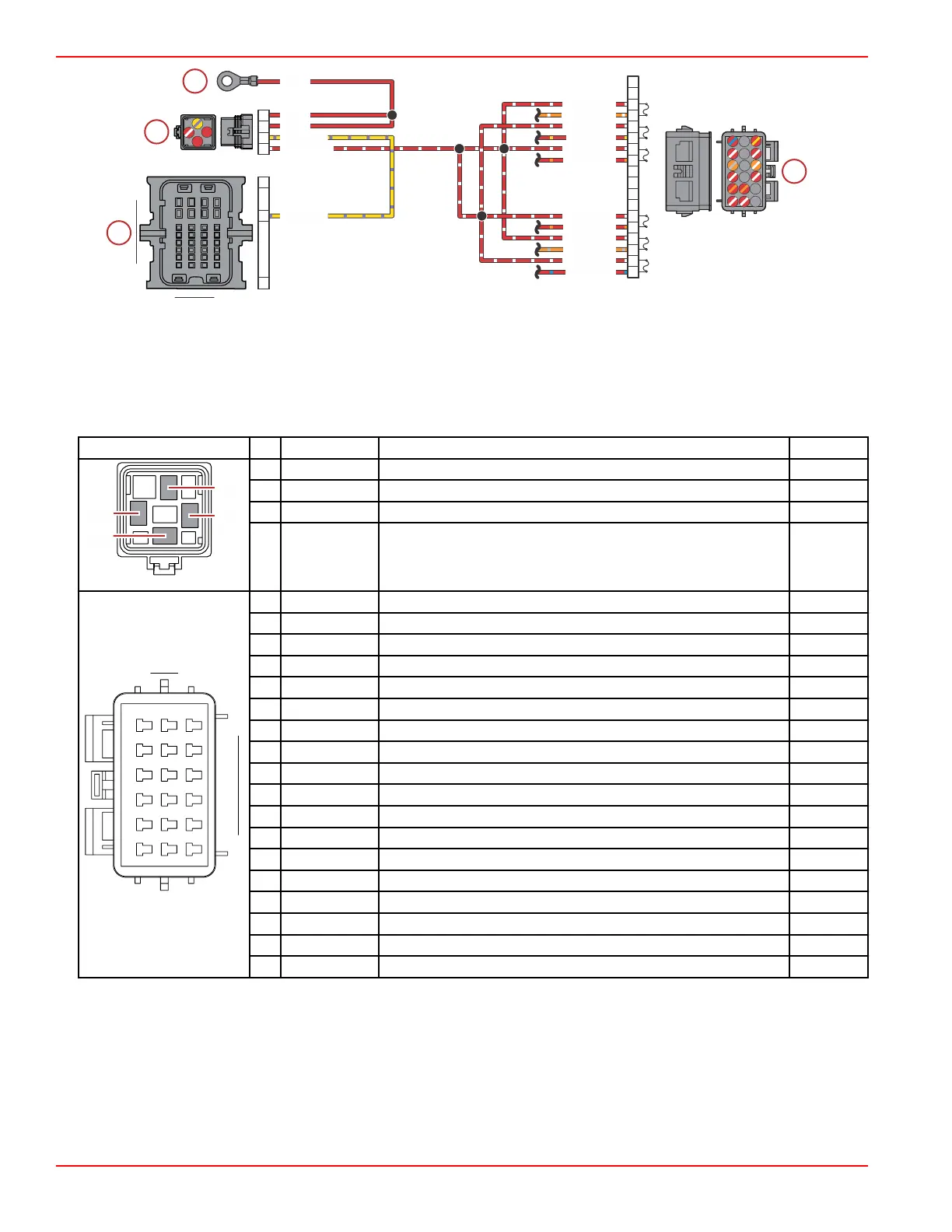

Mercury V8 300

V8 DTS model shown, others similar
a - PCM connector A
b - Main power relay (MPR)
c - Hot stud (battery +)
d - Fuse block
Connector Pin Wire Color Function PCM
86
87
85
30
59637
30 Red 12 V battery power (+) –
85 Red 12 V battery power (+) –
86 Yellow/purple Main power relay (MPR) control signal AA2
87 Red/white Switched 12 V power (+) –
1
6
A
C
65699
A1 Red Not shown –
A2 Red/pink Not shown –
A3 Red/white Switched 12 V power (+) –
A4 Orange/white Fused (10 A) 12 V power (+) ‑ O2 sensor –
A5 Red/white Switched 12 V power (+) –
A6 Red/yellow Fused (20 A) 12 V power (+) ‑ ignition coils –
B1 Red/white Switched 12 V power (+) –
B2 Red/orange Fused (2 A) 12 V power (+) ‑ RS48 diagnostic –
B3 Red DTS only; not shown –
B4 Red/purple DTS only; not shown –
B5 N/A Not used –
B6 N/A Not used –
C1 Red/white Switched 12 V power (+) –
C2 Red/orange Fused (2 A) 12 V power (+) ‑ fuel injectors –
C3 Red/white V8 only; switched 12 V power (+) –
C4 Orange/gray V8 only; fused (5 A) 12 V power (+) ‑ advanced sound control –
C5 Red/white Switched 12 V power (+) –
C6 Red/blue Fused (20 A) 12 V power (+) ‑ driver power CG3, CG4
Start Relay
The start relay is controlled directly by the engine PCM. When the PCM receives a start request, it sends a ground to the start
relay. The relay closes and sends power to the starter solenoid to crank the engine. Once the PCM determines that the engine
has started, it removes the ground from the start relay and the starter motor stops cranking.
