Mercury V8 300 User Manual

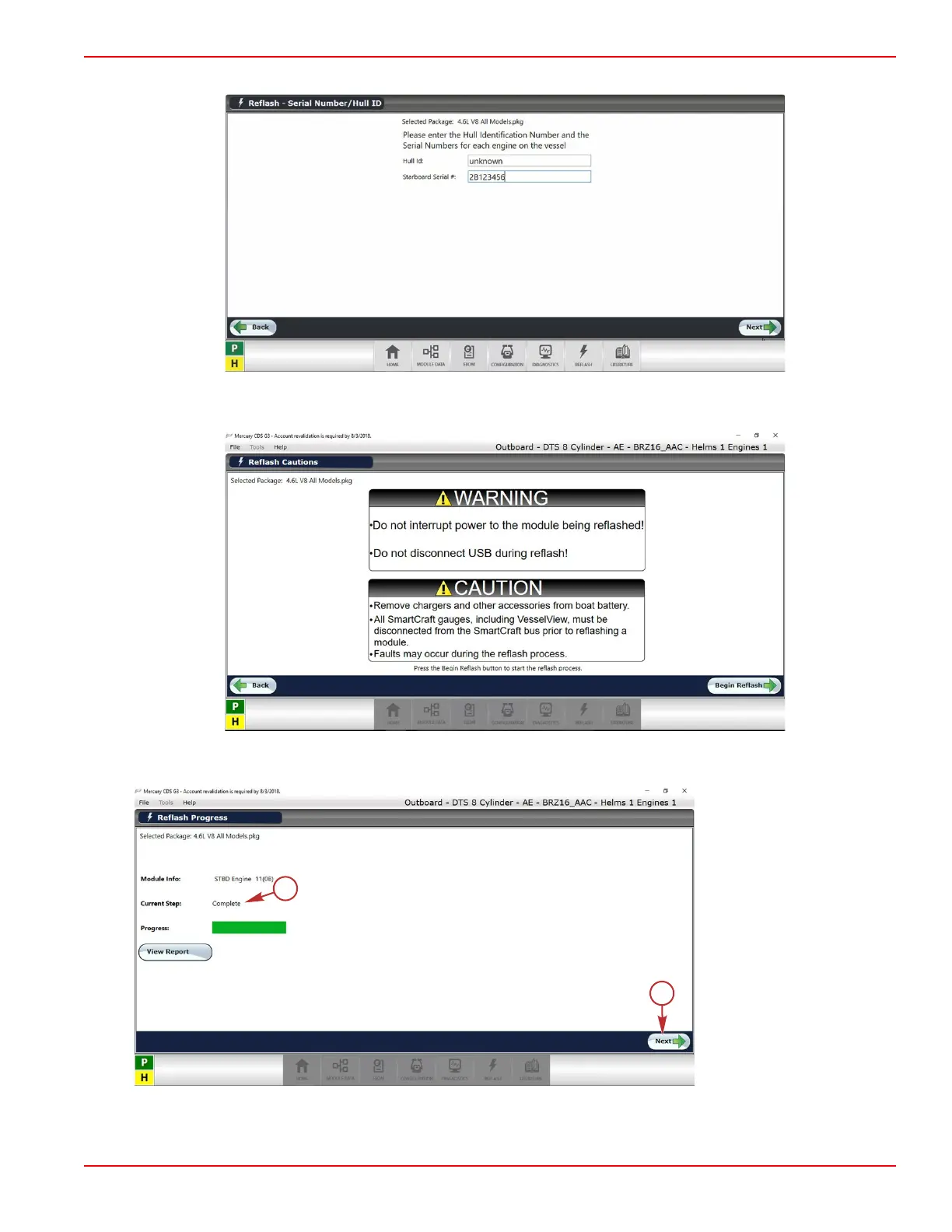

4. Enter the hull ID and engine serial number on the next screen before clicking the Next button.
67849
5. Read and follow the warning messages on the following screen before clicking Begin Reflash.
67662
6. Once the reflash has completed, click the Next button at the bottom of the screen.
a - Complete status
b - Next button
67663
a
b
CDS G3—Module Reflash
90-8M0146617 eng JULY 2018 © 2018 Mercury Marine Page 3F-3

Mercury V8 300 Specifications

General

Horsepower	300 HP
Displacement	4.6 L
Full Throttle RPM Range	5200-6000 RPM
Fuel Induction System	Electronic Fuel Injection (EFI)
Gear Ratio	1.75:1
Starting	Electric
Shaft Length	20 in, 25 in, 30 in
Warranty	3-Year Limited Warranty
Engine Type	V8
Fuel Type	87 Octane
Bore x Stroke	92 mm x 86 mm
