REFS Menu (I/O & Sync)

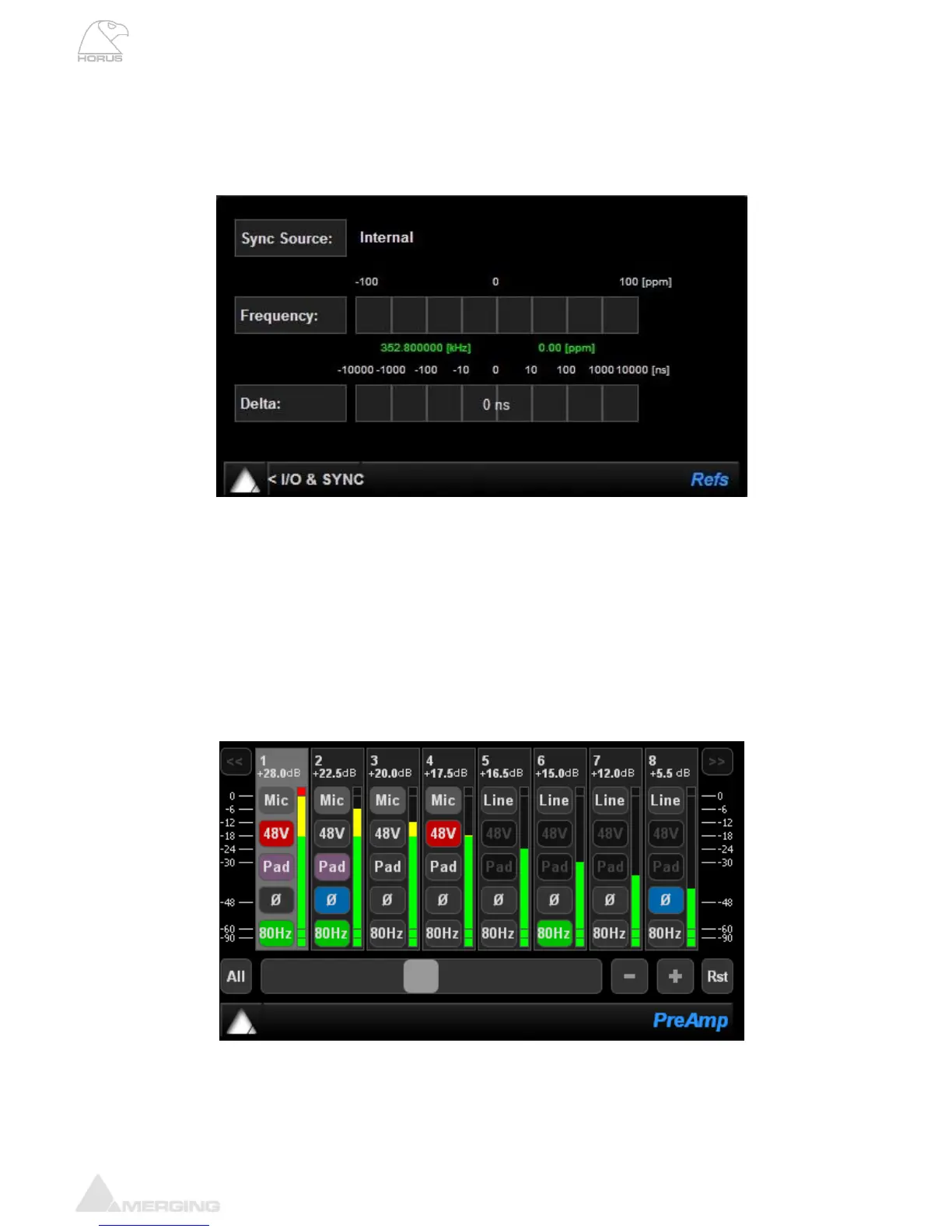

This Sub Page menu is where you can view the Deviation and Jitter of the External Reference, as
measured by the Horus synchronization circuitry.
Frequency: The long-term measured Frequency (in Hz) and deviation in ppm (parts per
million) between the signal the unit is locked on to and the internal reference.
Delta: The short-term (instantaneous) time offset between the reference signal and
the internal (considered as ideal) reference, measured in nanoseconds (ns).
In other words, the delta indicator over a RAVENNA network will report the
delta in ns between the master and the slave.
PreAmp Menu
The PREAMP (A/D) menu becomes active if you have 1 or more AD8(P) modules installed in the Horus
unit, giving full access to the Input controls. Please see below for a description of the buttons available.
All Active: Will select all 8 input channels for function and level grouping
Inactive: Adjustments to the input settings and level affect only the selected
channel only
Note the All button will group all inputs of the same type (Mic or Line)
To Next Page
