Meritor MS-113 - Differential Case Halves Separation

Section 2
Removal and Disassembly
Copyright 2002 Maintenance Manual MM-0230
Page 6 ArvinMeritor, Inc. Issued 07-02

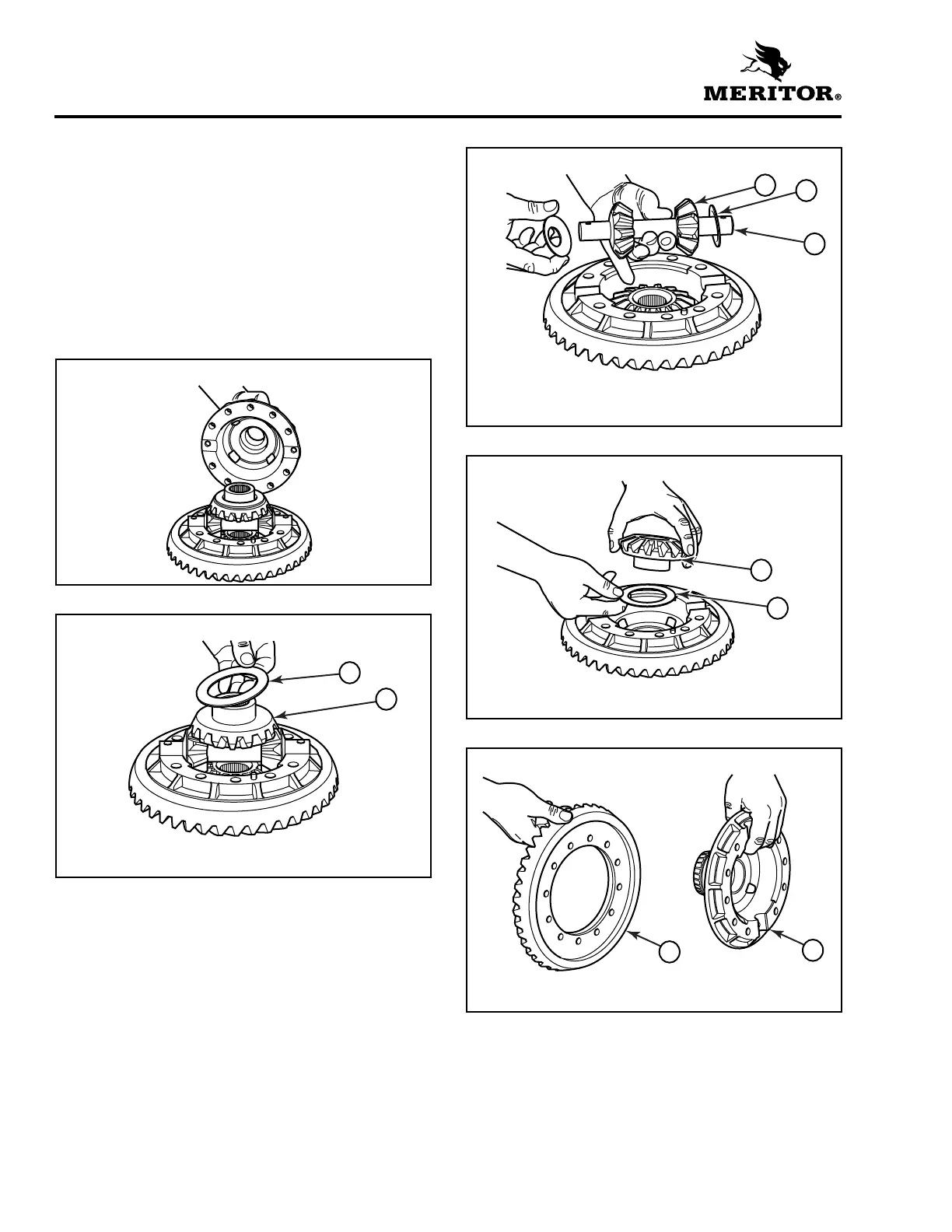

2. Separate the differential case halves.
Figure 2.14 . Remove the thrust washer and
side gear. Figure 2.15 .
3. Remove the differential pinion shaft,
differential pinions and thrust washers.
Figure 2.16 .
4. Remove the side gear and thrust washer.
Figure 2.17 . Use a brass hammer to remove
the ring gear from the differential case.
Figure 2.18 .
Figure 2.14
Figure 2.15
1 THRUST WASHER
2 SIDE GEAR
1
2
Figure 2.16
1 DIFFERENTIAL PINION
2 THRUST WASHER
3 DIFFERENTIAL PINION SHAFT
Figure 2.17
1 SIDE GEAR
2 THRUST WASHER
Figure 2.18
1 RING GEAR
2 DIFFERENTIAL CASE
1
2
3
1
2
1
2
