Section 2
Removal and Disassembly
Copyright 2002 Maintenance Manual MM-0230
Page 4 ArvinMeritor, Inc. Issued 07-02
Differential Case and Ring Gear from the
Carrier
NOTE:
Before working on the differential carrier,
inspect the gear set for damage. If the gear set is
not damaged, it can be reused. Measure the
backlash of the gear set and record the dimension.
Figure 2.6
. Refer to Section 4.
1. Remove the cotter pins from the side gear
adjusting rings.
Figure 2.7
.
2. Remove the differential bearing cap capscrews
and the cap.
Figure 2.8
.
3. Remove the differential adjusting ring and
bearing cup from bolted-on bearing cap side.
Figure 2.9
.
4. Remove the differential assembly from the
carrier and place it onto a workbench.
5. Remove the differential adjusting ring and
bearing cup from integral bearing cap side.
Drive Pinion from the Carrier
1. Fasten a yoke bar onto the yoke to hold
the yoke when you remove the locknut.
Figure 2.10
. Refer to Section 9 to build a
yoke bar.
2. Remove the yoke locknut.
Figure 2.11
. Remove
the yoke bar.

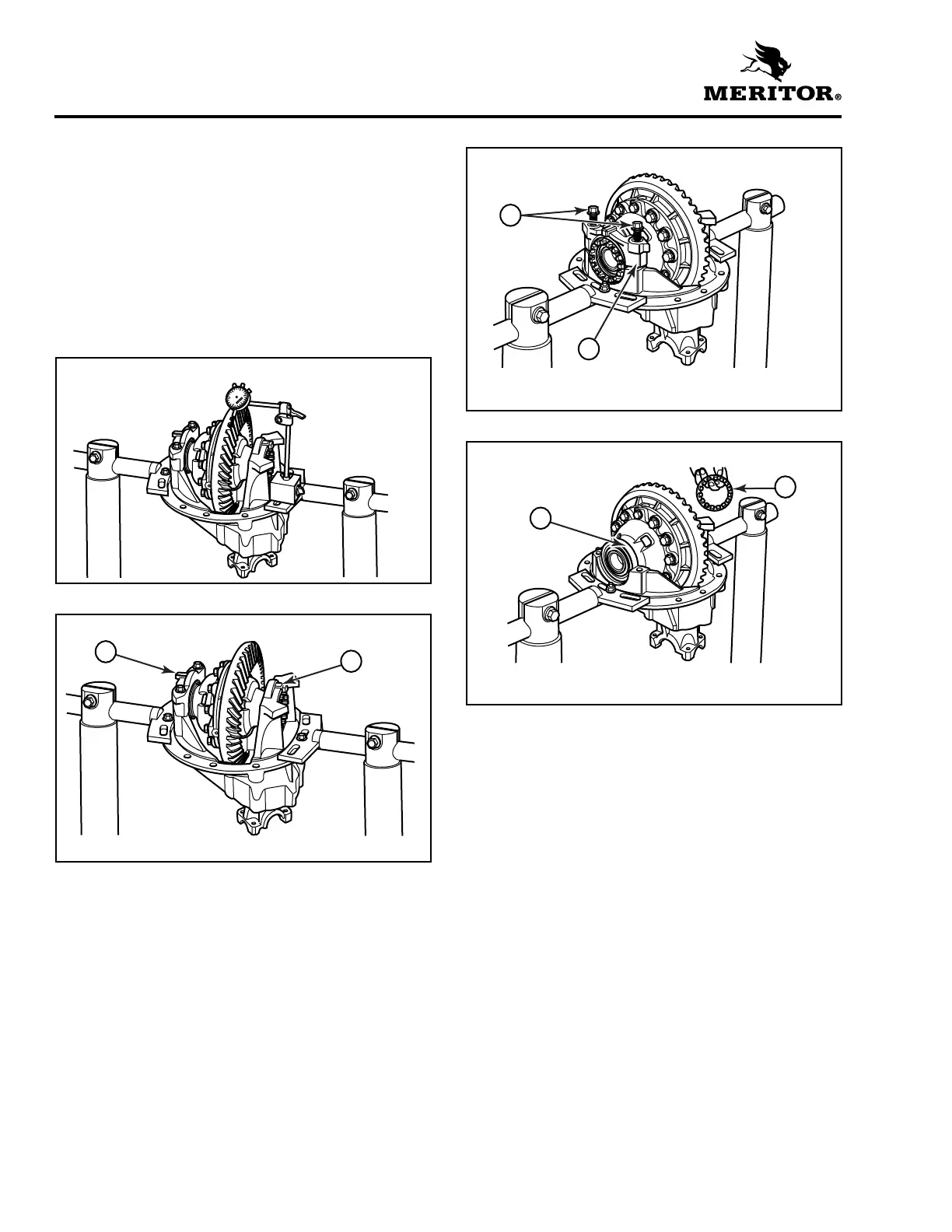

Figure 2.6
Figure 2.7
1 COTTER PIN
1
1
Figure 2.8
1 CAPSCREWS
2 DIFFERENTIAL CAP
Figure 2.9
1 BEARING CUP
2 ADJUSTING RING
1
2
1
2
