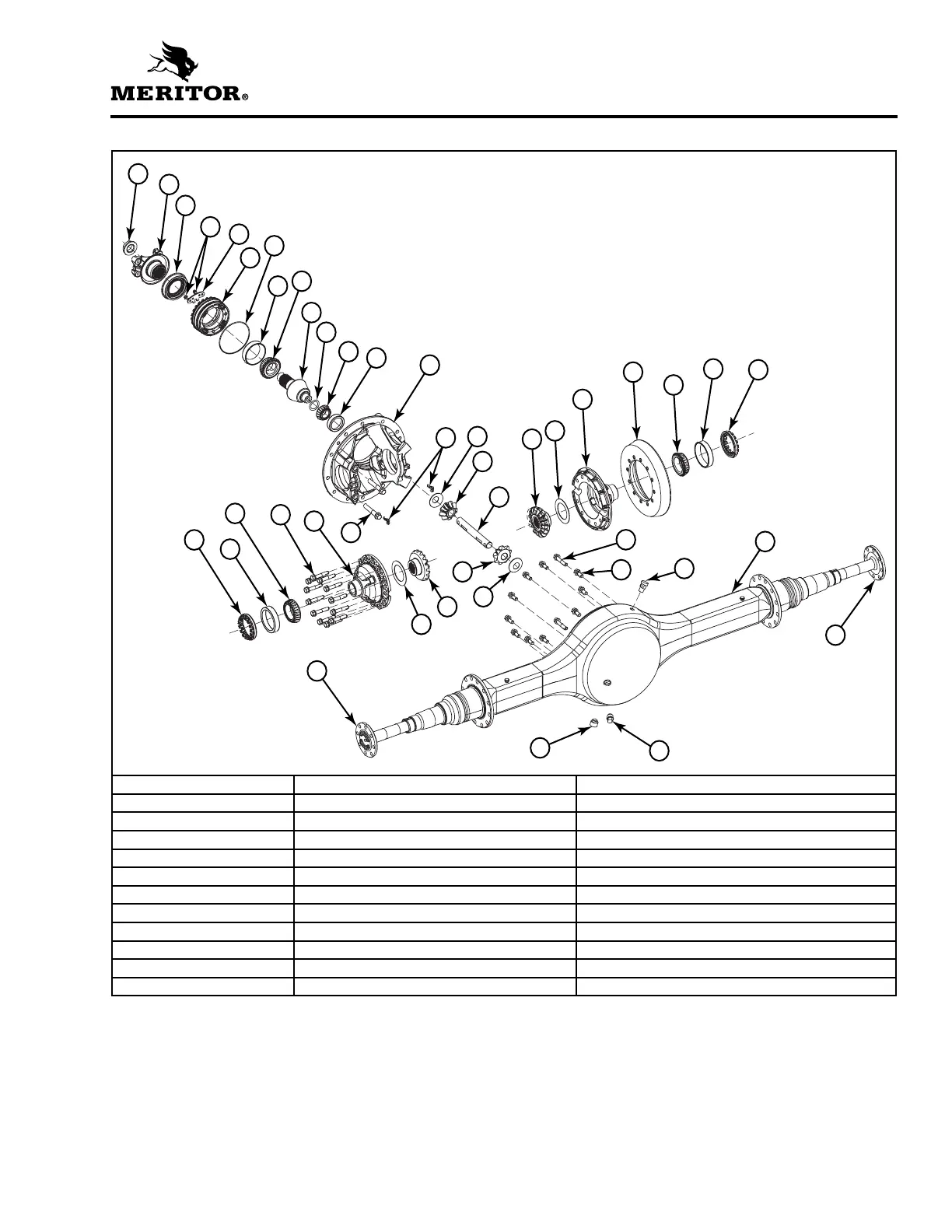

Meritor MS-113 - Exploded View of Rear Axle Components

Exploded View
Maintenance Manual MM-0230 Copyright 2002
Issued 07-02 ArvinMeritor, Inc. Page i
Exploded View
1 Locknut, M32 x 1.5 13 Inner Bearing Cup 25 Side Gear
2 Yoke 14 Carrier 26 Differential Pinion Shaft
3 Seal 15 Differential Cap Capscrew, M14 x 2.0 27 Differential Case
4 Screws, M6 x 1.0 16 Cotter Pins 28 Differential Case Capscrew, M12 x 1.75
5 Lock Plate 17 Thrust Washer 29 Carrier-to-Housing Capscrew, M12 x 1.75 x 60
6 Pinion Cage 18 Differential Pinion 30 Carrier-to-Housing Capscrew, M12 x 1.75 x 30
7 O-Ring 19 Adjusting Ring 31 Breather
8 Outer Bearing Cup 20 Bearing Cup 32 Axle Housing
9 Outer Bearing Cone 21 Bearing Cone 33 Fill Plug
10 Drive Pinion 22 Ring Gear 34 Drain Plug
11 Shim 23 Differential Case — Ring Gear Side 35 Axle Shaft
12 Inner Bearing Cone 24 Thrust Washer
1
2
3
4
11
13
12
14
10
5
9
7
6
8
27
28
21
19
20
24
16
25
15
17
18
26
17
18
25
23
24
22
21
19
20
33
34
32
31
29
30
35
35
