Meritor MS-113 - Section 9 Special Tools; Carrier Repair Stand Specifications

Section 9
Special Tools
Copyright 2002 Maintenance Manual MM-0230
Page 38 ArvinMeritor, Inc. Issued 07-02
Section 9Special Tools

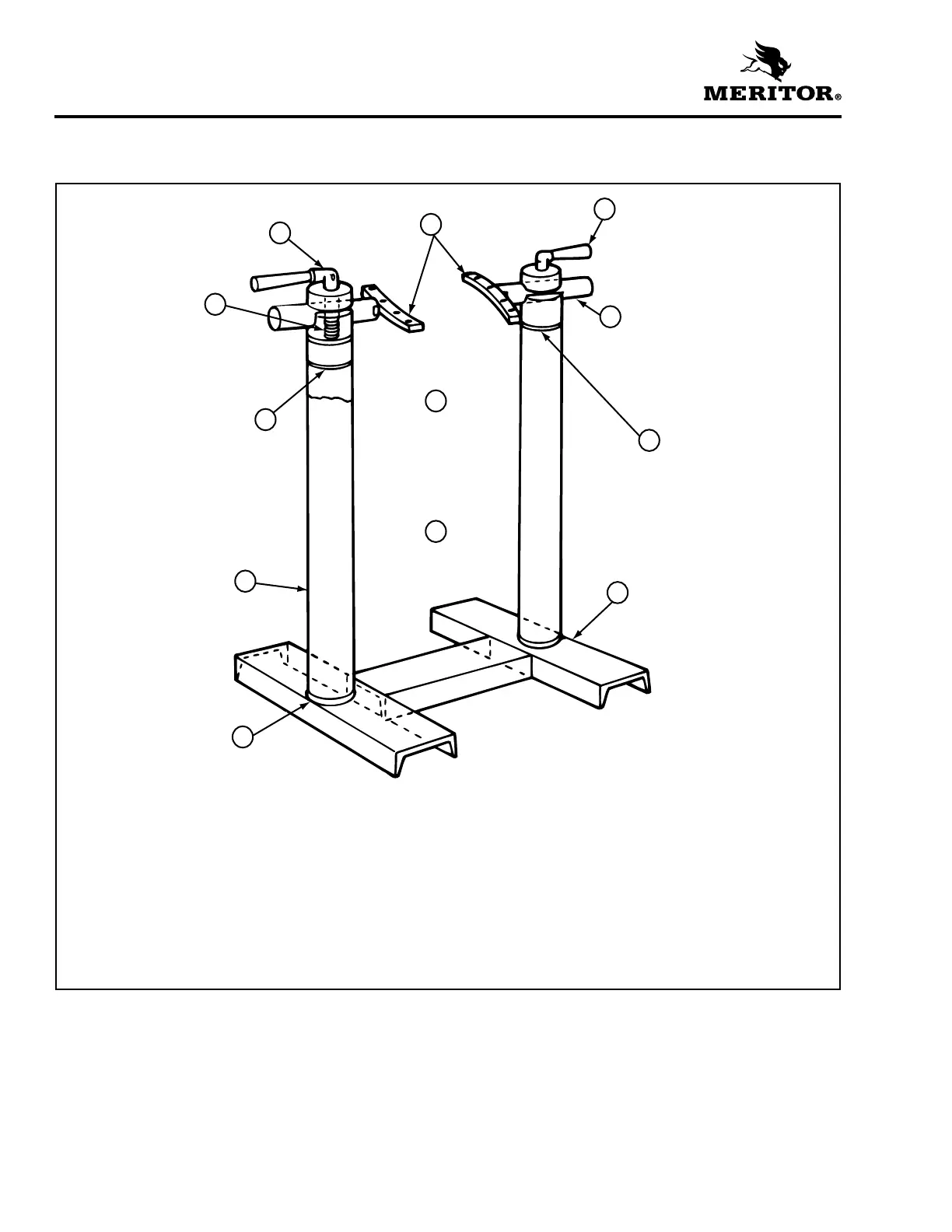

Carrier Repair Stand Specifications
Refer to the Service Notes page on the front inside
cover of this manual to obtain this repair stand.
1 Plates 8’ (2.44 mm) long x 3/4” (19.05 mm) thick x 1-1/4” (31.75 mm) wide with a tongue to fit slot in bar weld plates to bar
2 Handle 7” (177.8 mm) long with slot in one end to fit clamp screw
3 Bar 2” (50.8 mm) diameter x 9” (228.6 mm) long with one end slotted to fit plate
4 Weld all around after pressing plug into pipe.
5 Weld
6 Shape and size of holes to fit carrier
7 23-1/2” (596.9 mm) center to center of pipe
8 Chamfer end of pipe for welding.
9 4” (101.6 mm) diameter pipe
10 Plug 4” (101.6 mm) diameter x 7” (177.8 mm) long with one end turned 3” (76.2 mm) long to fit pipe. Drill 2” (50.8 mm) hole
and mill 3/16” (4.76 mm) wide slot 2” (50.8 mm) from top.
11 Screw 3-1/2” (88.9 mm) long x 5/8” (15.86 mm) diameter with flats onto end to fit handle and 2-1/2” (63.5 mm) length of
thread on other end
12 Drill 3/8” (9.5 mm) hole through handle and screw.
2
1
4
3
6
5
8
7
10
9
12
11
SPX Kent-Moore
part number J-3409-D
