Section 2
Removal and Disassembly
Maintenance Manual MM-0230 Copyright 2002
Issued 07-02 ArvinMeritor, Inc. Page 5
3. Remove the yoke from the drive pinion.
O If the yoke is tight on the drive pinion: Use
a puller to remove the yoke.
4. Remove the lock plate capscrews and the lock
plate. Figure 2.12 .
5. Use a spanner wrench to unscrew the pinion
cage from the carrier.
6. Remove the pinion cage and the drive pinion
from the carrier.
7. Remove the drive pinion inner bearing cup
from the carrier.
Disassembly
WARNING
Observe all warnings and cautions provided by
the press manufacturer to avoid damage to
components and serious personal injury.
Differential Case and Ring Gear
1. Remove the capscrews from the differential
case. Figure 2.13 .

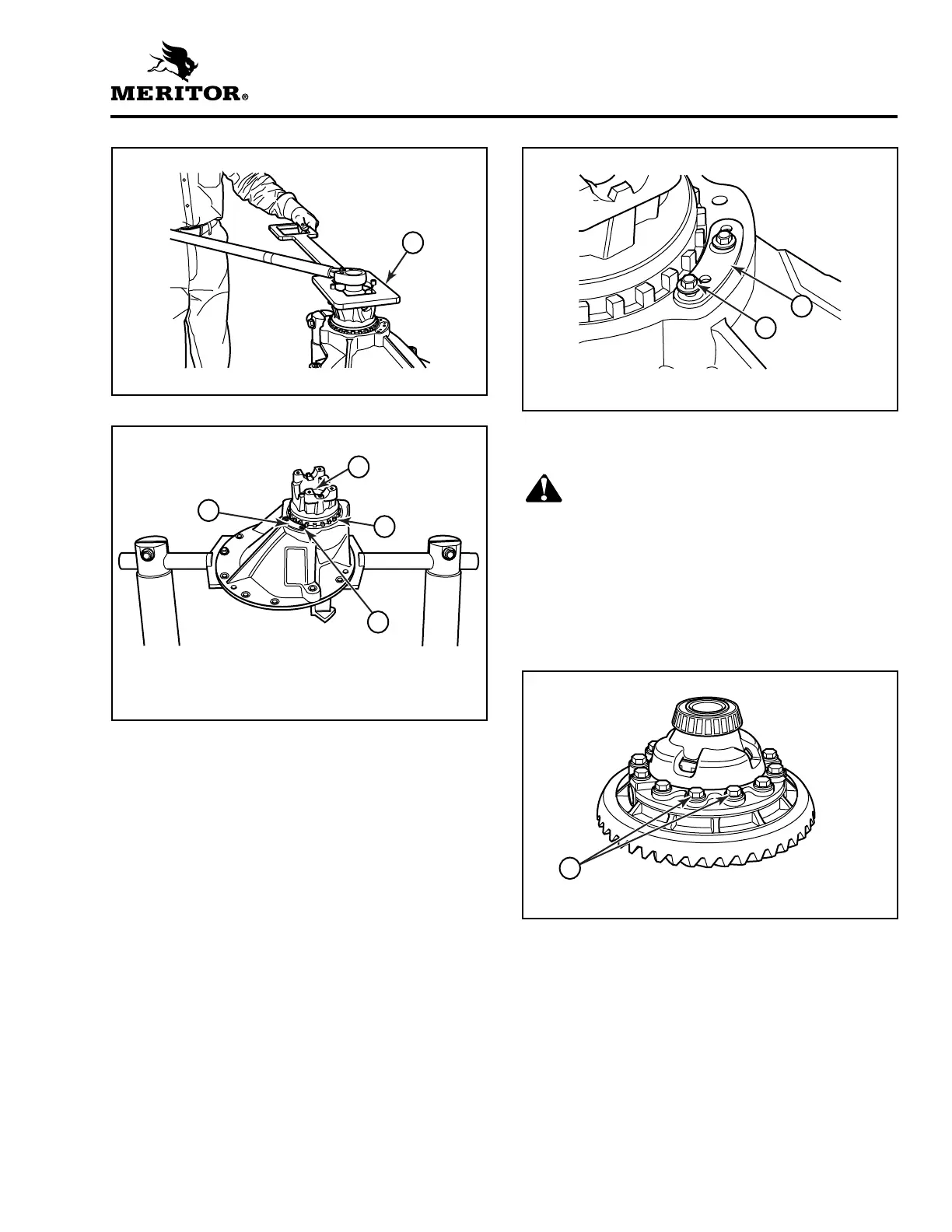

Figure 2.10
1 YOKE BAR
Figure 2.11
1 LOCK PLATE
2 CAPSCREW
3 PINION CAGE
4 YOKE LOCKNUT
1
3
4
1
2
Figure 2.12
1 CAPSCREW
2 LOCK PLATE
Figure 2.13
1 CAPSCREWS
2
1
1
