Meritor MS-113 - Drive Pinion Component Removal

Section 2
Removal and Disassembly
Maintenance Manual MM-0230 Copyright 2002
Issued 07-02 ArvinMeritor, Inc. Page 7

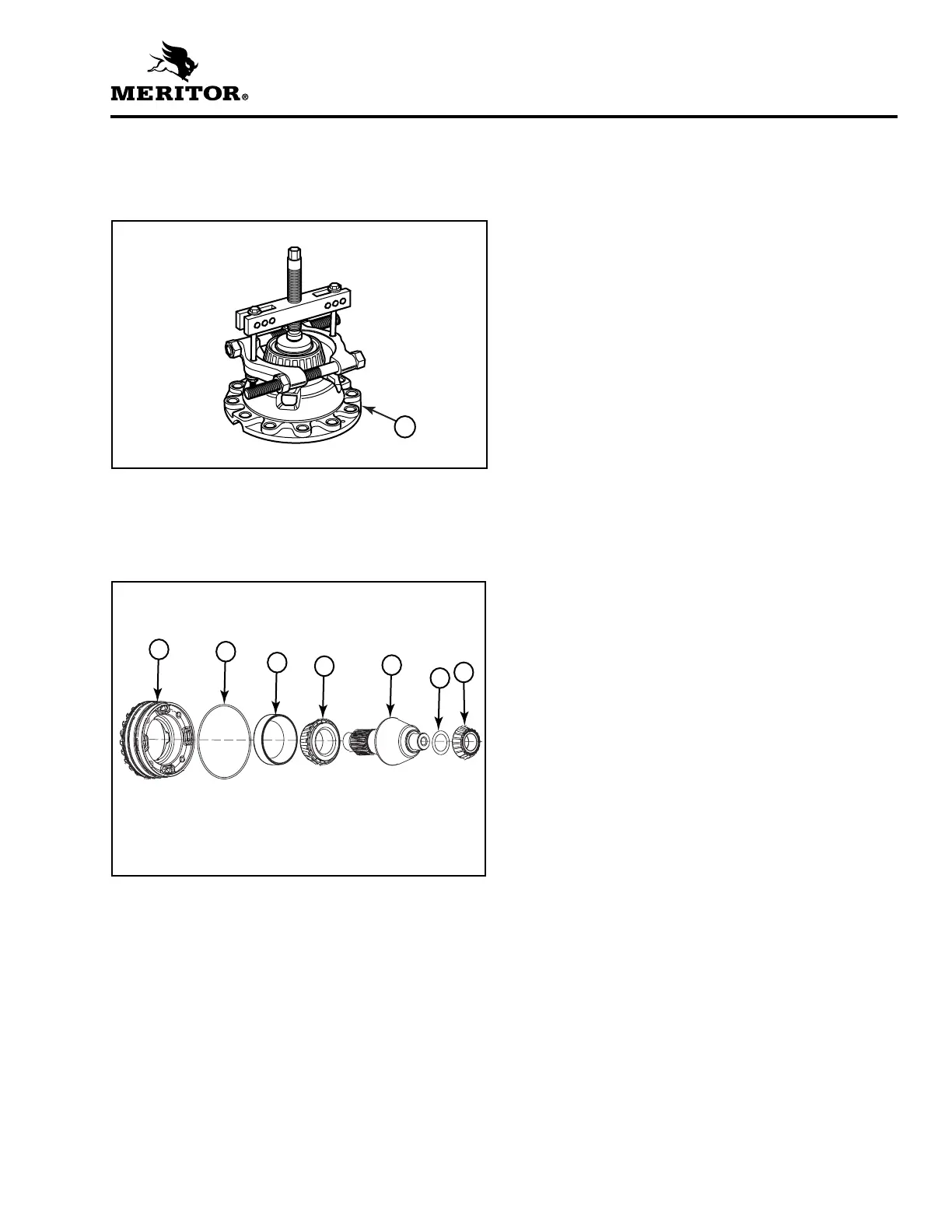

5. Use a bearing puller or a press to remove the
bearing cones from both halves of the
differential case. Figure 2.19.
Drive Pinion
1. Remove and discard the pinion cage O-ring.
Figure 2.20.
2. Remove the outer bearing cup and seal from
the pinion cage. Discard the seal.
3. Use a bearing puller or a press to remove the
inner and outer bearing cones from the drive
pinion.
4. Remove the shim from the drive pinion.
Figure 2.19
1 DIFFERENTIAL CASE
Figure 2.20
1 PINION CAGE
2 O-RING
3 OUTER BEARING CUP
4 OUTER BEARING CONE
5 DRIVE PINION
6 SHIM
7 INNER BEARING CONE
1
1
7
2
3
4
5
6
