Meritor MS-113 - Differential Case and Ring Gear Installation

Section 4
Assembly and Installation
Copyright 2002 Maintenance Manual MM-0230
Page 18 ArvinMeritor, Inc. Issued 07-02

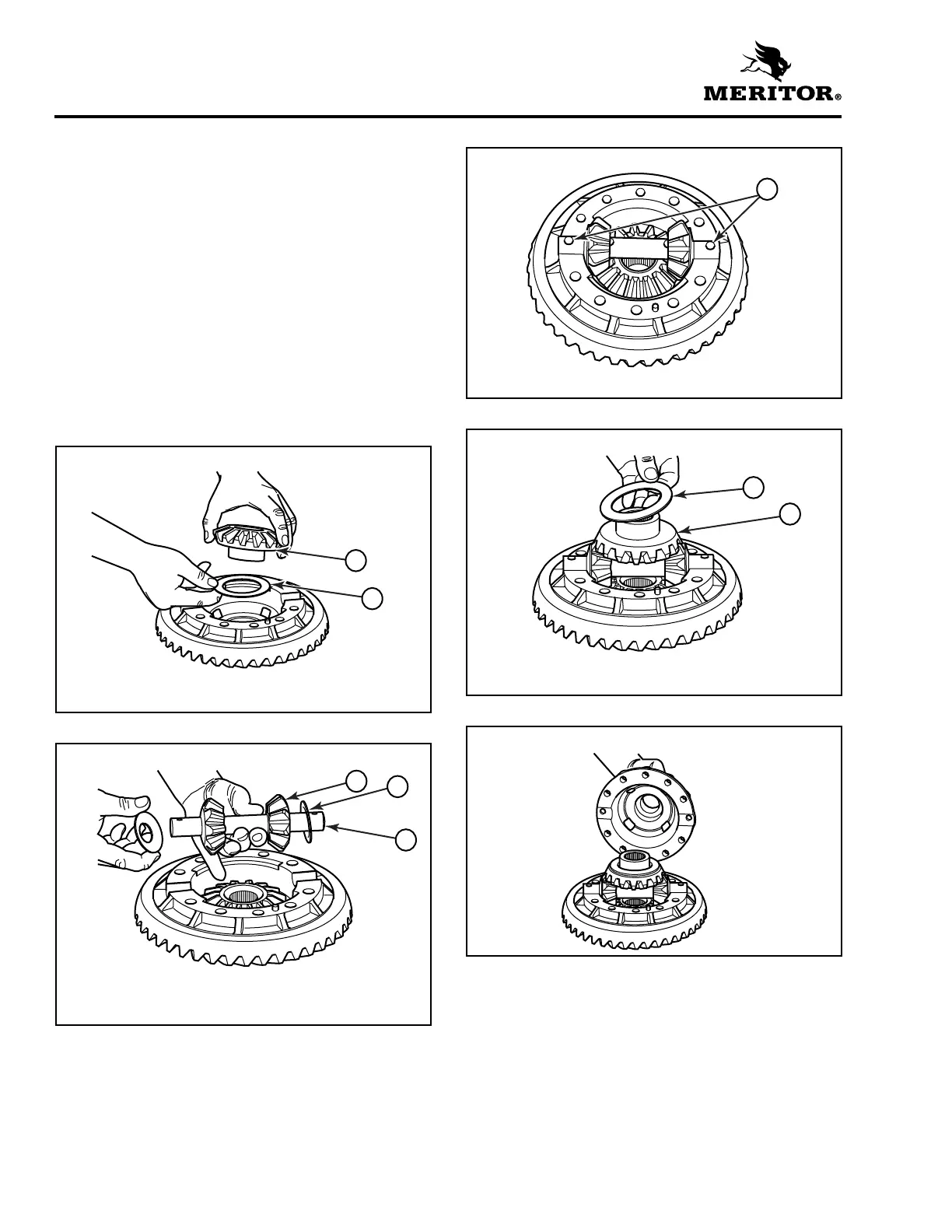

9. Install the thrust washer and side gear into the
differential case. Figure 4.2.
10. Slide the differential pinions and thrust
washers onto the differential pinion shaft.
Figure 4.3.
11. Position the differential pinion shaft in the
differential case on top of the side gear. The
holes in the differential pinion shaft must align
with the capscrew holes in the differential
case. Figure 4.4.
12. Install the side gear and thrust washer over
the differential pinions. Figure 4.5.
13. Position the case half over the side gear.
Figure 4.6.
Figure 4.2
1 SIDE GEAR
2 THRUST WASHER
Figure 4.3
1 DIFFERENTIAL PINION
2 THRUST WASHER
3 DIFFERENTIAL PINION SHAFT
1
2
1
2
3
Figure 4.4
1 Align holes.
Figure 4.5
1 THRUST WASHER
2 SIDE GEAR
Figure 4.6
1
1
2
